Terra Part # 3900-33
Usually ships in 18-24 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 3900-33

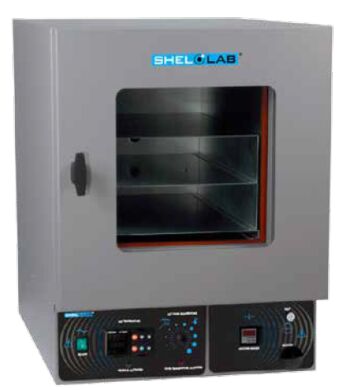

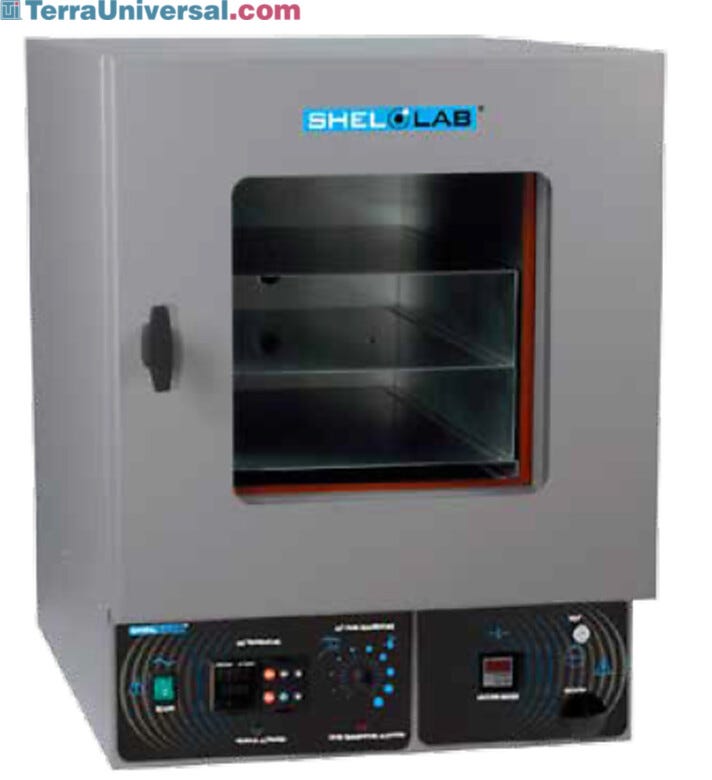

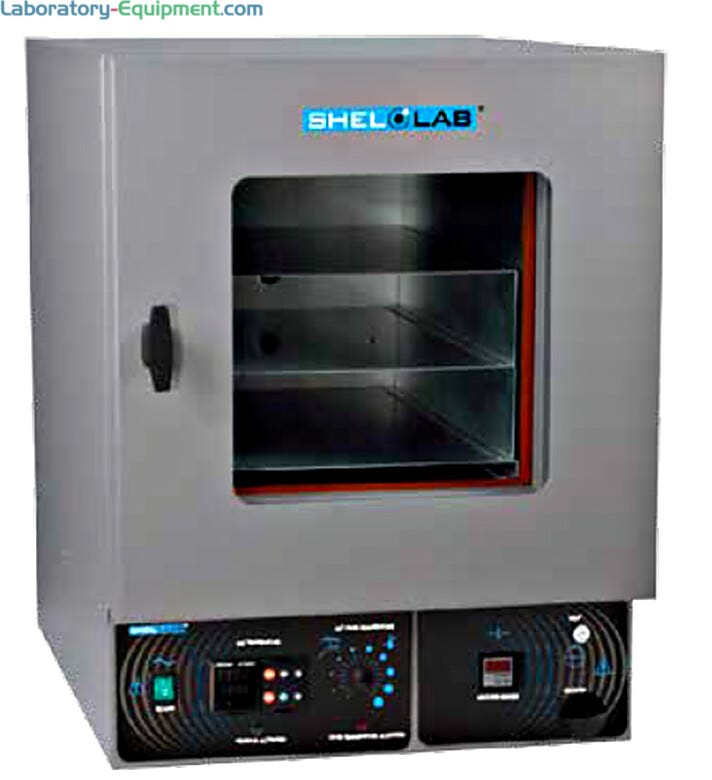

Oven; 1.7 cu. ft., Digital, SVAC, Stainless Steel, 120 V
  • Maximum Temperature: 220°C
  • Digital unit with cross ventilation provides fast and gentle drying of heat sensitive material
  • Programmable Watlow temperature control, Overtemperature safety and digital vacuum gauge
  • Stainless steel interior with three shelves and a double plenum design
  • Two-Year Manufacturer Warranty
  • Internal Dimensions (WxDxH) : 12 x 20 x 12 (304 x 508 x 304 mm)
  • Temperature Range: Ambient +10°C to 220°C
  • Temperature Uniformity: +/-6% of set point
  • Temperature Increments: 0.1°C
  • Number of Shelves: 3
  • Material: Stainless steel interior and tempered glass viewing window
  • Vacuum Range: -101 to -1010 mbar
  • Heat-up Time: 90% of a 150°C set point in 90 minutes
  • Max. Energy Consumption: 1200/1320 W
  • Airflow Design: Cross ventilation
  • Agency Approval: TUV - CUE
  • Positive latch door handle and spring-loaded glass for excellent vacuum seal
  • Silicone gaskets (use Buna gaskets for solvent applications and Fluorosilicone or Viton for acidic applications)
  • Digital features:
  • Fully Programmable Watlow Temperature Control
  • Capable of 40 Step Ramp and Soak Profiles or 4
  • Files With 10 Steps Per File
  • Digital Vacuum Gauge
  • RS485 Communication

Type: Vacuum

Maximum Temperature: 220°C

Material: Stainless Steel

Capacity: 1.7 cu. ft.

Convection Type: Forced Air

Controls: Digital

Model: SVAC

Manufacturer SKU: SVAC2

Capacity Range: <4 cubic feet

Unit of Measure: EA

Marks & Listings: UL, TUV - CUE

Electrical Specifications: 120 V, 1,320 W, 60 Hz

Weight, Product: 179 Lbs

Dimensions, Product: 20.5"W x 29.5"D x 26.3"H

Weight, Shipping: 218 Lbs

Dimensions, Shipping: 33"W x 33"D x 47"H

Package Type: Palletized

Buy Accessories
  1. Equipment Testing
    Request Quote
    Increase Down Increase Up


  • Shel Lab Large Capacity Vacuum Oven Shel Lab Large Capacity Vacuum Oven
  • Shel Lab Analog Economy Model Oven Shel Lab Analog Economy Model Oven
  • Shel Lab Digital Standard Model Vacuum Oven Shel Lab Digital Standard Model Vacuum Oven

Features and Benefits

Compare Vacuum Ovens by Shel Lab

Additional Features of Shel Lab Vacuum Ovens

Complete list of Applications
  • Aging Tests
  • Chemical Resistance Studies
  • Desiccating
  • Drying of Paper
  • Dry Sterilization
  • Electronic Process Control
  • Moisture Determination
  • Out Gassing Liquids
  • Out Gassing Solids
  • Plating
  • Rubber and Textiles
  • Vacuum Storage
External Dimensions (WxDxH)17.5 x 22.8 x 23.5 in. (445 x 578 x 597mm)15.5 x 19 x 22.5 in. (39.4 x 48.3 x 57.2 mm)20.5 x 29.5 x 26.3 in. (521 x 750 x 667mm)18.5 x 27.8 x 25.3 in. (470 x 705 x 642 mm)26.5 x 34.5 x 32.3 in. (674 x 877 x 820 mm)36 x 46.5 x 62 in. (915 x 1182 x 1575 mm)
Internal Dimensions (WxDxH)9 x 12 x 9 in. (228 x 304 x 228 mm)9 x 12 x 9 in. (228 x 304 x 228 mm)12 x 20 x 12 (304 x 508 x 304 mm)12 x 20 x 12 (304 x 508 x 304 mm)18 x 24 x 18 in. (457 x 609 x 457 mm )28 x 24 x 24 in. (711 x 609 x 609 mm)
Electrical115V, 60 Hz115V, 60 Hz115V, 60 Hz115V, 60 Hz115V, 60 Hz220 - 230 volts
Capacity0.6 Cu. Ft.(16L)0.6 Cu. Ft. (16L)1.7. (47 L)1.7. (47 L)4.5. (127 L)9.3. (264 L)
Temperature RangeAmbient +10°C to 220°CAmbient +15°C to 210°CAmbient +10°C to 220°CAmbient +15°C to 210°CAmbient +10°C to 220°CAmbient +5°C to 220°C
Temperature Uniformity+/-6% of set point+/-3.0 at 60°C, +/-9.0 at 120°C, +/-13.0 at 200°C+/-6% of set point+/-3.0 at 60°C, +/-9.0 at 120°C, +/-13.0 at 200°C+/-6% of set point+/- 7.0ºC at 150ºC
Temperature Increments0.1°CAnalog Control0.1°CAnalog Control0.1°C0.1°C
Number of Shelves323233
MaterialSS InteriorSS InteriorSS InteriorSS InteriorSS InteriorSS interior with option for SS exterior
Max. Energy Consumption840/1080 W600/575 W1200/1320 W1200/1150 W1560/1680 WNot Available
Airflow DesignCross VentilationCross Ventilation--Cross VentilationCross Ventilation--
Agency ApprovalTUV - CUE--TUV - CUE--TUV- CUE--
Heat-up Time90 minutes to 150°C
Vacuum Range-101 to -1010 mbar
WarrantyTwo-Year Manufacturer Warranty
