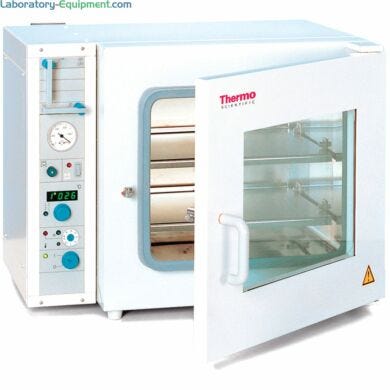

Vacutherm™ vacuum heating and drying oven reduces drying time for temperature sensitive materials; provides inert heating environment | 1709-11 displayed
Ovens,Ovens,Vacuum Desiccators
Product Group:
1709-PP-01
1709-PP-01 71497

Vacutherm™ Vacuum Heating and Drying Ovens

  • Fast and gentle drying of samples requiring a reduced atmosphere or an inert environment
  • Ideal for use in food and pharmaceutical industries concerned with avoiding oxidation damage
  • Modular system with a wide range of accessories and configurations
Read more
CSA C US Certification CE Mark Logo
Manufactured By: Thermo Fisher
Warranty: 1 year parts, 90 days labor
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Learn More: Vacutherm Vacuum Ovens
Select Product
Voltage

Sort Order:
Type

Sort Order:
Material

Sort Order:
Controls

Sort Order:
Maximum Temperature

Sort Order:
Capacity

Sort Order:
Convection Type

Sort Order:
Model

Sort Order:
Manufacturer SKU

Sort Order:

 Terra Part # Price Ships in
120 V Vacuum Stainless Steel Digital 200°C 0.88 cu. ft. Vacuum Vacutherm 51014551 1709-08 64798 $8,051 15-51 Days 2
Ships Free
120 V Vacuum Stainless Steel Digital 200°C 1.87 cu. ft. Vacuum Vacutherm 51014540 1709-09 64799 $13,447 15-51 Days 3
120 V Vacuum Stainless Steel Digital 300°C 1.87 cu. ft. Vacuum Vacutherm 51023263 1709-10 64800 $21,897 15-51 Days 4
208/240 V, US Plug Vacuum Stainless Steel Digital 200°C 4.52 cu. ft. Vacuum Vacutherm 51023262 1709-11 64801 $20,534 15-51 Days 5
208/240 V, US Plug Vacuum Stainless Steel Digital 300°C 4.52 cu. ft. Vacuum Vacutherm 51023264 1709-12 64802 $36,344 15-51 Days 6
Voltage
Type
Material
Controls
Maximum Temperature
Capacity
Convection Type
Model
Manufacturer SKU
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Available Accessories
Products similar to this one
Buy Accessories
Product Details
Product Details
  • Fast and gentle drying of samples requiring a reduced atmosphere or an inert environment
  • Ideal for use in food and pharmaceutical industries concerned with avoiding oxidation damage
  • Modular system with a wide range of accessories and configurations
  • Available in 25L, 53L and 129L capacities
  • Jacket-heating models: Maximum temperature up to 200°C (392°F) and Kelvitron microprocessor
  • Shelf-heating models: Maximum temperature up to 300°C (572°F), and Digicon multi-channel controller for controlling individual shelf temperature
  • Includes analog pressure gauge
Show more

Show more

Ovens

  • Vacutherm Vacuum Heating and Drying Ovens Vacutherm™ Vacuum Heating and Drying Ovens
Vacutherm Vacuum Heating and Drying Ovens

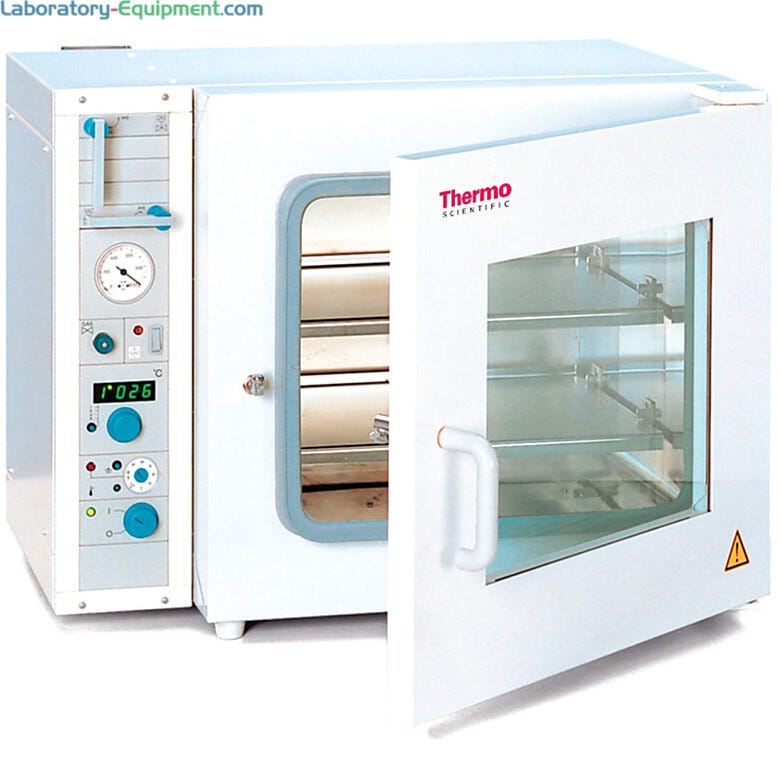

Vacutherm™ vacuum heating and drying oven reduces drying time for temperature sensitive materials; provides inert heating environment | 1709-11 displayed Vacutherm™ Vacuum Heating and Drying Ovens Vacutherm™ vacuum heating and drying oven by Thermo Fisher Scientific reduces drying time for temperature-sensitive materials; provides inert-gas heating environment to avoid oxidation.
Features & Benefits

Features & Benefits

Learn More: Vacutherm Vacuum Ovens
Print Copy Copied

Specifications for Vacutherm Vacuum Heating and Drying Ovens

Models VT 6025 VT 6060 M VT 6060 P VT 6130 M VT 6130 P
Heating Type Jacket Jacket Multichannel
Shelf Control 		Jacket Multichannel
Shelf Control
Inert Gas Port No Yes Yes No Yes
Temp. Range 200°C
(392°F) 		200°C
(392°F) 		300°C (572°F) or
400°C* (752°F) 		200°C
(392°F) 		300°C (572°F) or
400°C* (752°F)
Capacity 25L 53L 53L 128L 128L
External Dimensions 17.7"W x 18.9"D x 23.6"H
(450 x 480 x 600 mm) 		22.4"W x 29.3"D x 22.7"H
(570 x 744 x 576 mm) 		22.4"W x 29.3"D x 22.7"H
(570 x 744 x 576 mm) 		29.5"W x 35.2"D x 28.3"H
(750 x 895 x 720 mm) 		29.5"W x 35.2"D x 28.3"H
(750 x 895 x 720 mm)
Internal Dimensions 12.1"W x 11.8"D x 10.8"H
(307 x 300 x 275 mm) 		14.6"W x 16.3"D x 13.6"H
(371 x 415 x 345 mm) 		14.6"W x 16.3"D x 13.6"H
(371 x 415 x 345 mm) 		20.8"W x 19.5"D x 19.3"H
(529 x 495 x 489 mm) 		20.8"W x 19.5"D x 19.3"H
(529 x 495 x 489 mm)
Electrical 120 volts, 60Hz 120 volts, 60Hz 120 volts, 60Hz 208/230 volts, 60Hz 208/230 volts, 60Hz
Warranty 2 years parts and labor 2 years parts and labor 2 years parts and labor 2 years parts and labor 2 years parts and labor
Additional Features
  • Inert gas connection with precision valve and overpressure safety valve precisely releases non-flammable, non-toxic gasses (except for basic model #VT 6025)
  • Double-pane safety glass doors prevent implosion
Industries Applications Vacutherm Solution
Food
  • Food solid content determination
  • Sample drying under vacuum at 60°C (140°F)
  • Gentle drying of raw materials
  • Determination of solid content
  • Sample drying under vacuum at 60–80°C (140-176°F)
 VT 6060 M or VT 6130 M with standard pump and trap
Pharmaceutical
  • Drying additives
  • Sample drying with pressure at 0-1mbar or forming gas at 60–80°C (140-176°F)
 VT 6060 P or VT 6130 P with an oil-free pump
