120 V General Protocol Coated Steel Digital 300°C 0.7 cu. ft. Mechanical ED Series 9010-0193 1410-01 70452 $1,860 20-26 Days 2
Ships Free
208 V General Protocol Coated Steel Digital 300°C 14.1 cu. ft. Mechanical ED Series 9010-0168 1410-02 70454 $4,947 20-26 Days 3
400 V General Protocol Coated Steel Digital 300°C 25.4 cu. ft. Mechanical ED Series 9010-0341 1410-03 70455 $6,788 20-26 Days 4
Voltage
Type
Material
Controls
Maximum Temperature
Capacity
Convection Type
Model
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • ED Series Classic.Line gravity convection ovens designed for quick and efficient drying and sterilization tasks up to 300 °C
  • Inner chamber provides homogeneous temperature control
  • Provides consistent test conditions regardless of sample size
  • Effective thermal insulation reduces operating cost
  • Wide temperature range suitable for use in science, medical, research and quality assurance heating applications
  • Available in 20L, 400L and 720L interior volumes
  • Temperature range: RT +5 °C to 300 °C
  • APT.line™ preheating technology provides optimal temperature uniformity and faster recovery times
  • Gravity convection
  • Ramp function, Time Delayed OFF and Adjustable exhaust air flap
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm and LED Controller with timer functions
  • Includes 2 chrome-plated racks

Ovens

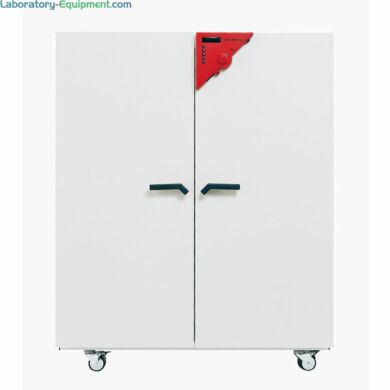

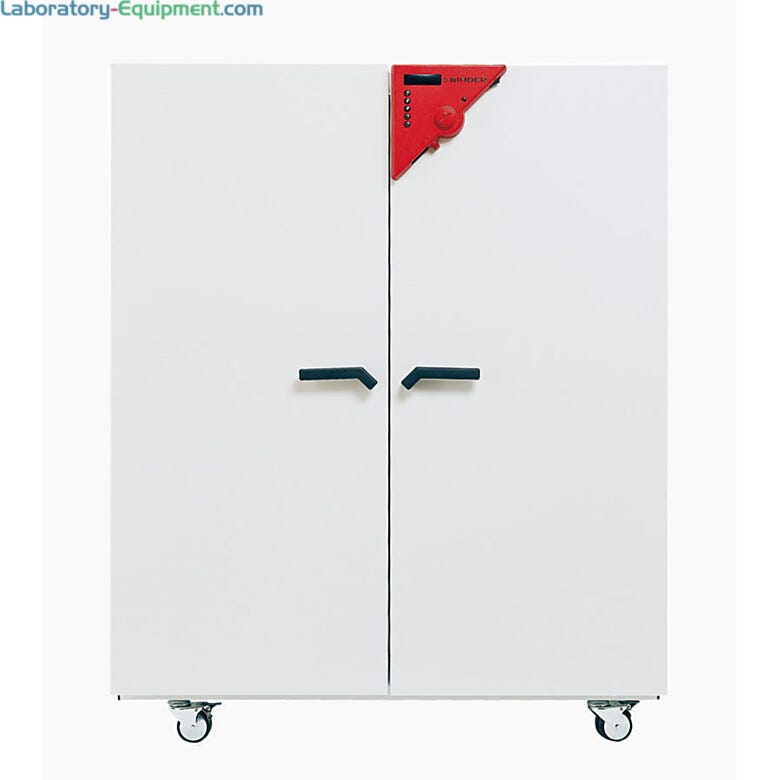

  • BINDER Classic Line ED 720 Heating and Drying Chamber BINDER Classic Line ED 720 Heating and Drying Chamber
  • BINDER Classic Line ED 23 Heating and Drying Chamber BINDER Classic Line ED 23 Heating and Drying Chamber
  • BINDER Classic Line ED 400 Heating and Drying Chamber BINDER Classic Line ED 400 Heating and Drying Chamber
Features & Benefits

Features and Benefits

Learn More: ED Series Drying Chambers

ED Series Drying and Heating Chambers Options and Accessories

The ED Series drying and heating chambers feature a wide range of options to satisfy numerous applications. Contact a sales engineer for pricing on the complete listing of options.



  • Access port with silicone plug
  • Alarm function for overheating
  • Analog output 4-20 mA
  • Calibration certificate, expanded
  • Calibration certificate, temperature
  • Class 3.1 independent temperature safety device
  • Data Logger Kit
  • Data Logger Software
  • Door Gasket
  • Door Lock
  • Instrument Tray
  • Interface Converter
  • Interface Converter, USB/RS422
  • Measurement of Air Exchange Rate
  • pH- Neutral Detergent
  • Pt 100 Temperature Sensor
  • Rack (Stainless Steel or Chrome-Plated)
  • RS 422 Interface
  • RS 422 Interface, Cable (15 in.)
  • RS 422 Interface, Cable (50 in.)
  • Software
  • Viewing Window and Interior Lighting
Model ED 23 ED 400 ED 720
Electrical 120V 60Hz 208V 60Hz 208V 60Hz
Net weight of the unit (empty) 60 lbs. (27.2 kg) 276 lbs. (125.2 kg) 384 lbs. (174.2 kg)
Overall Dimensions 17.17 x 20.5 x 19.5 in.
(435 x 521 x 495 mm)
48.7 x 30.14 x 40.4 in.
(1237 x 766 x 1026 mm)
48.7 x 34.1 x 60.3 in.
(1237 x 866 x 1532 mm)
Internal Dimensions 8.75 x 11.82 x 13 in.
(222 x 300 x 330 mm)
39.4 x 20.5 x 31.5 in.
(1000 x 520 x 800 mm)
39.4 x 24.4 x 47.3 in.
(1000 x 621 x 1201 mm)
Interior volume [cu. ft.] 0.7 cu. ft. (19.82 L) 14.1. (400 L) 25.4. (719.3 L)
Temperature range 5 °C above ambient temperature to [°C] 300 300 300
Temperature variation at 150 °C [± K] 2.8 3 3.6
Temperature fluctuation at 150 °C [± K] 0.5 0.5 0.5
Heating-up time to 150 °C [min] 28 71 84
Recovery time after 30 seconds door open at 150 °C [min] 28 31 34
Air change (approx.) at 150 °C [x/h] 13 10 9
Permitted load 55 lbs. (25 kg) 198 lbs. (89.8 kg) 265 lbs. (120 kg)
Load per rack 26 lbs. (11.8 kg) 77 lbs. (34.9 kg) 99 lbs. (44.9 kg)
Energy consumption at 150 °C [Wh/h] 148 672 750
Unit doors 1 2 2
Number of shelves (std./max.) 2/4 2/10 2/16

Uniform Heating and Temperature Distribution

Select BINDER Heating and Drying Chambers feature forced air convection for efficient drying and sterilization tasks

ED Series Temperature Range

Wide temperature range from 5 °C above ambient temperature to 300 °C suitable for many heating and drying applications.

ED 720 Drying Hrating Chamber Chrome Racks

The temperature uniformity is a result of the Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm.
