Ilmvac MP Series Standard Duty Membrane Vacuum Pumps are dry and oil-free for minimized maintenance | 7906-29 displayed
Vacuum Pumps,Vacuum Pumps,Vacuum Pumps
Product Group:
7906-PP-02
7906-PP-02 71625

Diaphragm Vacuum pumps

  • Available ISO Ratings: ISO 8
  • Oil-free, diaphragm pumps for rough and medium-high vacuum; ideal for research and science applications
  • An economically and ecologically superior alternative to water-operated vacuum pumps
  • Also used as regeneration pumps in combination pumping systems
  • ILMVAC diaphragm pumps are quiet and compact with low vibration
  • Chemically resistant diaphragm pump models MPC are used with aggressive solvents and acid vapors
Read more
Stocked ISO 8 Icon<br/>
Manufactured By: Welch Vacuum
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Voltage

Sort Order:
Oil-less

Sort Order:
Ultimate Pressure

Sort Order:
Maximum Pumping Speed

Sort Order:
ISO Class

Sort Order:

 Terra Part # Price Ships in
120 V Yes 8 mbar 173 L/min ISO 8 7906-26A 73527 $4,922 5-7 Days 2
In stock
120 V Yes 100 mbar 36 L/min ISO 8 7906-07A 73377 $4,322 5-7 Days 3
In stock
120 V Yes 4200 mbar 31 L/min ISO 8 7903-00 19896 $835 15-17 Days 4
Only 1 left in stock
115 V Yes 2 mbar 65 L/min ISO 8 7906-08A 73520 $4,481 5-7 Days 5
In stock
115 V Yes 8 mbar 97 L/min ISO 8 7906-29 52613 $3,539 5-7 Days 6
In stock
115 V Yes 10 mbar 65 L/min ISO 8 7906-50 52667 $1,308 5-7 Days 7
In stock
115 V Yes 12 mbar 25 L/min ISO 8 7906-51 52668 $2,414 5-7 Days 8
In stock
115 V Yes 12 mbar 35 L/min ISO 8 7906-06A 73516 $2,808 5-7 Days 9
In stock
115 V Yes 53 mbar 35 L/min ISO 8 7906-03A 73373 $1,706 5-7 Days 10
In stock
115 V Yes 200 mbar 31 L/min ISO 8 7902-00 19892 Request Quote 5-9 Days 11
240 V Yes 12 mbar 29/35 L/min ISO 8 7906-06A-220 73517 $2,808 5-7 Days 12
In stock
240 V Yes 53 mbar 29/35 L/min ISO 8 7906-03A-220 73514 $1,706 5-7 Days 13
In stock
240 V Yes 200 mbar 31 L/min 7902-01 19894 $368 15-17 Days 14
Only 5 left in stock
220 V Yes 0.004 mbar 31 L/min ISO 8 7903-01-220 19898 $897 1-3 Days 15
Only 4 left in stock
230 V Yes 12 mbar 21/25 L/min ISO 8 7906-51-220 73515 $2,414 5-7 Days 16
In stock
230 V Yes 100 mbar 33 L/min ISO 8 7906-07A-220 73518 $4,322 5-7 Days 17
In stock
230 V Yes 2 mbar 65 L/min ISO 8 7906-08A-220 73521 $4,491 5-7 Days 18
In stock
230 V Yes 12 mbar 57 L/min ISO 8 7906-50-220 73524 $1,308 5-7 Days 19
In stock
Voltage
Oil-less
Ultimate Pressure
Maximum Pumping Speed
ISO Class
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • •  Available ISO Ratings: ISO 8
  • Oil-free, diaphragm pumps for rough and medium-high vacuum; ideal for research and science applications
  • An economically and ecologically superior alternative to water-operated vacuum pumps
  • Also used as regeneration pumps in combination pumping systems
  • ILMVAC diaphragm pumps are quiet and compact with low vibration
  • Chemically resistant diaphragm pump models MPC are used with aggressive solvents and acid vapors
  • Made from cleanroom-compatible aluminum, PTFE, PP and PVDF
  • Maintenance and service work is fast and easy
  • ILMVAC guarantees outstanding operation and long vacuum pump life span; rated for thousands of hours
  • Manufactured and tested in accordance with DIN 28 432
  • Applications include vacuum distillation, vacuum concentration, molecular distillation, drying ovens, vacuum filtration, and gel drying
  • Pumping and connection heads are carbon fiber reinforced with virtually no electrical conductivity
Show more

Show more
Features & Benefits

Features & Benefits

Learn More: Oil-Free (Dry) Pumps
Print Copy Copied

More Information

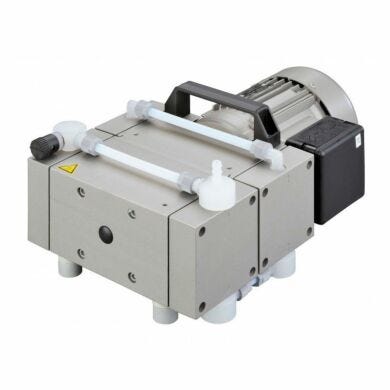

High-Flow Diaphragm Oil-Free (Dry) Vacuum Pump (Ilmvac MP Series)
  • Two-stage pumps for quicker and more efficient vacuum pump-down
  • ON/OFF Switch and internal protective thermal switch for the motor
  • Vibration isolating feet
  • High-flow units operate at 125 LPM and 222 LPM; draw to 8mbar pressure (29.85" Hg vacuum)
  • Suitable for applications using dry, moist or ethanol vapors: Vacuum Ovens, Glove Boxes and Vacuum Chambers
Standard Duty Dry Vacuum Pump
  • Continuous oil-free pumping
  • Non-Corrosive
  • Vacuum to 9Torr (29.6” Hg)
  • As the piston wobbles, Teflon seal expands to increase efficiency and lesson wobble motion
Chemical Duty Dry Vacuum Pump
  • Features Advanced Vapor Management (AVM) for adjustable vacuum control
  • Model 2034B-01 has a flow rate of 25 LPM and an ultimate pressure of 9 torr (12 mbar or 29.6" Hg vacuum)
  • Ideal for rapid drying and evaporation in small vacuum ovens, benchtop rotovaps and chemical duty filtration
Mini Vacuum Pump for Laboratories
  • Used for filtration, drying and degassing
  • Standard and chemically resistant models
  • Low vibration and noise with twin head design
  • Plug and play wide-range power adaptor
  • Standard duty pumps (MP) for pumping air, and chemically resistant models (MPR) for solvent applications
Compact Diaphragm Pump
  • Ultimate vacuum is <45 mbar
  • Standard duty pumps (MP) for pumping air, and chemically resistant models (MPR) for solvent applications
  • Great for aspirating liquids
  • 115/230V wide-range motor
Diaphragm Pumps
  • Available in standard and chemically resistant versions
  • Compact, practical solution for vacuum range 1000 to 1 mbar
Model MP901Z MP1801Z
Numbers of heads/stages 4/2 8/2
Free Air Displacement CFM (l/min.) @ 60H z4.42 (125) 7.84 (222)
Free Air Displacementm3/h (l/min.) @ 50Hz 6.8 (113) 12 (201)
Ultimate Pressure, Torr (mbar) 8 (6) 8(6)
Maximum Vacuum, in.Hg 29.7 29.7
Motor Power, watts (HP) 370 (0.5) 370/440 (0.5/0.6)
Model 2562B-01
Free Air Displacement CFM (l/min.) @ 60Hz 2.3 (65)
Free Air Displacement m3/h (l/min.) @ 50Hz 3.4 (57)
Ultimate Pressure, Torr (mbar) 9 (12)
Maximum Vacuum, in.Hg 29.6
Motor Horsepower, watts 1/3 (250)
Intake/Exhaust thread NPT 1/4
Model 2034B-01
Free Air Displacement CFM (l/min.) @ 60Hz 0.9(25)
Free Air Displacement m3/h (l/min.) @ 50Hz 1.25(21)
Ultimate Pressure, Torr (mbar) 9 (12)
Maximum Vacuum, in.Hg 29.6
Adjustable Vac./Gas Ballast Yes
Motor Power, watts (HP) 1/5 (150)
Intake/Exhaust thread NPT 1/4
Model MP 060 E MPR 060 E MP 104E MPC 104E
Final Vacuum, mbar <60 <60 <45 <45
Flow Rate, l/min 10 10 15-16 15-16
Head Material Aluminum PPS Aluminum PTFE Compound
Diaphragm Material PTFE PTFE PTFE PTFE
Valve Material PEEK PEEK PEEK PEEK
Connections 6-8 mm 6-8 mm 8mm 8mm
Noise Level, dBA <42 <42 <45 <45
Model MP101Z MP301Zp MP201T MP601Tp
Ultimate Pressure, mbar <8 <8 <2 <2
Pumping Speed 50/60 Hz 16.7/18.3 L/min 38.3/41.7 L/min 33.4/36.7 L/min 75.0/81.7 L/min
Motor Power 60W 180W 90W 370W
Model MPC101Z MPC301Zp MPC201T MPC601Tp
Ultimate Pressure, mbar <8 <8 <2 <2
Pumping Speed 50/60 Hz 16.7/18.3 L/min 38.3/41.7 L/min 33.4/36.7 L/min 75.0/81.7 L/min
Motor Power 60W 180W 90W 370W
