Select Product

Material

Configuration

Chamber Height

Terra Part #PriceShips in
Acrylic Right-Side Airlock 30" 23" 23.5" 2 3306-88$7,70720-24 Days
Acrylic Left-Side Airlock 30" 23" 23.5" 2 3306-89$7,70720-24 Days
Material
Configuration
Chamber Width
Chamber Depth
Chamber Height
Number of Glove Ports
Item ordered before. Click on bagde to see the order.
Demo Available
Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Select product to see details

Product Details

Designed in the USA

• Maintains vacuum levels down to 29.9 "Hg

• Dual hose barb fittings simplify connection to vacuum pump to allow rapid air removal

• Air lock minimizes particle influx during sample transfer

• Perfect for anaerobic processing in a low-humidity nitrogen or argon environment

• Order gloves and vacuum/purge controls separately

• Safe for intermittent vacuum below 29"; damage to welds may result under continuous full-vacuum pressure

• 1.5" (38 mm)-thick reinforced acrylic walls support full vacuum (to 29.9"Hg)

• Includes leveling feet, two port caps, dual valves for connection to vacuum pump and backfill gas source, pressure gauge and relief/bleed valve

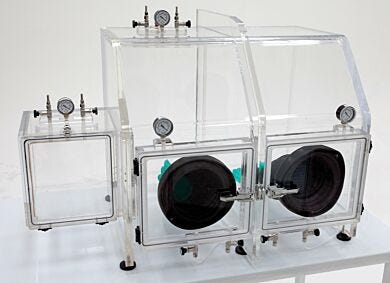

Series 210: Vacuum Glove Box

Standard Features

  • A Acrylic
    1.5" (38 mm)-thick acrylic construction supports vacuum to 29.9" Hg*
  • B Glove Ports
    8" (203 mm)-diameter glove ports (order desired gloves separately)
  • C Access Doors
    Access doors close over gloves to seal chamber during vacuum cycle
  • D Vacuum valves and gauge
    Vacuum valves and gauge
  • E Nylon Levelers
    Adjustable nylon leveling feet
  • F Airlock
    Airlock

Not Shown: Connection Ports - Connection ports for process gas purging and oxygen monitoring

Not Shown: Nitrogen Generator - Nitrogen Generator

Vacuum Isolators

  • Acrylic Vacuum Glovebox with Vacuum Air Lock Acrylic Vacuum Glovebox (Series 210)
  • Single Acyrlic Glovebox Vacuum Right Airlock Right Airlock Acrylic Vacuum Glovebox
Acrylic Vacuum Glovebox with Vacuum Air Lock
Single Acyrlic Glovebox Vacuum Right Airlock

Features & Benefits

Features & Benefits

Series 210 Glovebox

Important Application Notes for Series 210 Glove Box

Vacuum Warning

The Series 210 Glovebox is designed for intermittent vacuum service as low as 29.9"Hg, as would typically be required in order to evacuate the chamber and backfill with process gas. Damage to welds can result if the chamber is exposed to continuous vacuum levels below 29" Hg.

How to Attain Extremely Low RH/O2 Concentrations: Vacuum Cycling vs. Purge and Bleed

Vacuum cycling provides the quickest, most economical way to achieve extremely low moisture and oxygen levels inside a glovebox.

Purge-and-bleed displacement relies on a continuous purge of dry process gas (typically, nitrogen or argon) to displace moisture-laded air, which exits through a bleed valve. This process typically requires many hours, consumes a high volume of process gas, and may never achieve very low oxygen concentrations (below 5 ppm) required in many applications.

Vacuum cycling evacuates ambient air – and with it, moisture and oxygen – inside a vacuum chamber or glovebox. When air is removed, you simply backfill the chamber with process gas until the chamber attains neutral pressure. If needed, this process is repeated until oxygen or moisture concentration reaches the desired level. Typically, only a few cycles, requiring only a fraction of the gas and time of a purge-and-bleed protocol, are all that's needed to reach single-digit oxygen concentrations.

Once set point levels are attained, close off vacuum valves and use a Dual Purge System and appropriate controller (NitroWatch™ for relative humidity, Trace Oxygen Analyzer for O2 concentration) to maintain dry, anaerobic conditions.

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Vacuum Connection Kit
    All Turnkey Connection Kits include a solenoid vacuum valve and all necessary hosing, clamps, adapters and other connection hardware for the specified application. Draws power from the Vacuum Control Module.
  • Vacuum Control Module
    This automatic Vacuum Control Module is especially important in testing or processing applications that require sustained exposure to a precisely regulated vacuum level it helps extend the service life of your vacuum pump by allowing continuous pump operation.
  • Standard Duty Dry Vacuum Pump
    Vacuum Ovens by Thermo Fisher are compact dry vacuum pump runs quiet and continuously. These pumps are suitable for applications for dry, moist or ethanol vapors.
  • Duo Seal Vacuum Pump
    Welch DuoSeal Vacuum Pump has a belt-driven, oil-seal design that extends durability and service life even under harsh operation conditions.
  • Neoprene Accordion Sleeve Assemblies
    Neoprene accordion sleeves with nitrile gloves allow fast glove replacement without removing sleeve; rigid neoprene sleeve resists blow-back (other glove styles available).
