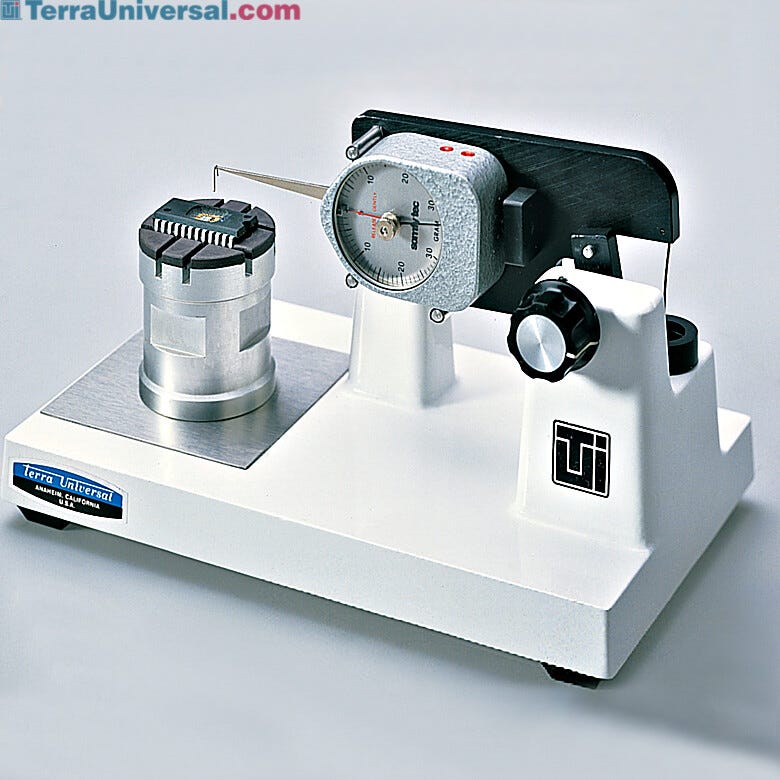

Wire Bond Strength Tester Destructive Testing 4-35 gram 9104-00A 48816 $1,234 10-12 Days 2
In stock
Wire Bond Strength Tester Destructive Testing 5-50 gram 9105-00A 48817 $1,234 10-12 Days 3
In stock
Wire Bond Strength Tester Destructive Testing 10-100 gram 9101-38A 48814 $1,352 0-2 Days 4
In stock
Wire Bond Strength Tester Destructive Testing Complete Set 9101-00 21550 $5,093 10-12 Days 5
In stock
Test Gauge 4-35 gram 9101-03A 48818 $650 1-3 Days 6
Ships Free Free shipping in contiguous USA Quick Ship+ In stock
Test Gauge 5-50 gram 9101-04A 48819 $650 1-3 Days 7
Ships Free Free shipping in contiguous USA Quick Ship+ Only 5 left in stock
Test Gauge 10-100 gram 9101-34A 48820 $650 1-3 Days 8
Ships Free Free shipping in contiguous USA Quick Ship+ Only 5 left in stock
Test Gauge 50-150 gram 9101-35A 48821 $650 1-3 Days 9
Ships Free Free shipping in contiguous USA Quick Ship+ Only 10 left in stock
Gauge Included
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details

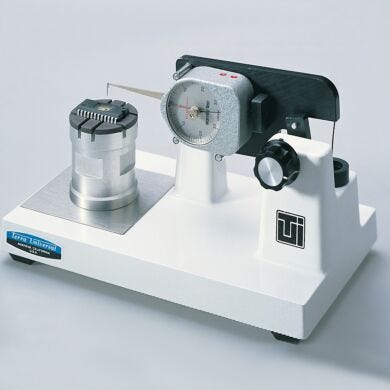

  • This portable, durable Wire-Bond Strength Tester provides accurate, reliable wire-bond tests in either destructive or non-destructive mode in conformance with MIL-STD 883C
  • Nondestructive testing: set predetermined pull strength to be applied to the unit under test
  • Destructive testing: the system applies pull force until the wire bond breaks, allowing you to measure precisely the strength of the bond
  • Calibration weights are available for four pull ranges to simplify checks of the tester’s accuracy (calibration checks should be performed frequently)
  • Side forces on the wire are eliminated through the precise alignment of the pivot axis of the gauge arm to the swing bracket and through a free-swinging hook at the gauge tip, guaranteeing smooth motion throughout the pull cycle
  • A recoil guard prevents undue snap-back of the instrument’s gauge arm and indicator needle, thereby protecting the accuracy of the needles
  • Dash pot (included with all testers) lets you adjust the pull rate and delivers smooth motion through the entire pull cycle, guaranteeing repeatable test results independent of operator variables
  • Available with a single gauge (with hook) of your choice: 4-35 g, 5-50 g, 10-100 g, 15-150g; calibration weights and optional accessory chuck sold separately
  • Bundled system also available with all four gauges (with one pull hook for each), all four calibration weights, and an accessory chuck

Microelectronic Tools

  • Wire-Bond Strength Tester Portable Wire-Bond Strength Tester
  • Very Fine Point Miniature Tweezers High-Precision Microelectronics Tweezers for Every Need!
  • Squeegee Blades for Microelectronics Screen Printers Squeegee Blades for Microelectronics Printing
  • Porta-Want Kit with 4 Porta-Wand Kit with 4" Wafer Tip
Features & Benefits

Features & Benefits

Portable Wire-Bond Strength Tester

Portable Wire-Bond Strength Tester: Easy to Operate!

The test sample is first positioned on the accessory chuck, which adjusts to fit various packages. The Wire-Bond Strength Tester is designed for use with most standard wire bond chucks; the magnetic accessory chuck is suitable for most applications. Next, you position the pull hook under the wire to be tested with the aid of a microscope (not included; integrated Wire-Bond Strength Tester Inspection Station also available). To conduct nondestructive tests, you simply adjust the stop-screw (which limits the movement of the swing-bracket) until the gauge shows the desired pull force. Because the wire-loop heights of finished bonds are within close tolerances, this limited force testing can be performed with sufficient accuracy to ensure that wire bonds are good.
