Select Product

Chamber Width

Chamber Depth

Chamber Height

Terra Part #PriceShips in
8" 8" 12" 3404-00A 65056 $5,2181-3 Days2
Stocked
27" 48" 24" 3404-03 40597 $34,81130-40 Days3
Chamber Width
Chamber Depth
Chamber Height
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

• Durable double-wall stainless steel vacuum chamber supports full vacuum to 29.9" Hg

• Ideal for contamination-sensitive applications: won't permeate or outgas like acrylic designs

• Versatile stainless steel construction is chemical resistant, heat resistant, and ESD-safe

• Light-weight sheet metal design simplifies transporting parts under vacuum between workstations

• Stainless Steel Vacuum Chamber meets a host of processing needs in industries from pharmaceuticals to microelectronics.

• Multi-functional 304 stainless steel vacuum chamber provides a vacuum environment for degassing, plastics curing, chemical processing, moisture removal, and a host of other operations.

• Heat-resistant vacuum oven silicone gasket ensures an air-tight seal when the door is latched shut.

• 8" (203 mm) square tempered-glass window mounted in the access door allows full visibility of stored parts.

• Dual carrying handles simplify transport of the unit.

• Box shape with hinged door allows the vacuum chamber to be situated with the door facing upward or facing forward, depending on your application. Positioning the chamber with the door facing upward can help safely contain liquid spills or corrosive chemicals. Positioning the chamber with the door facing forward allows the door to easily swing open for faster batch processing.

• 0-30" vacuum gauge and dual metering valves allow simple, controlled application of negative pressure and safe bleeding.

• Call to discuss custom sizes or applications, including cable feed-throughs.

Vacuum Chambers

  • stainless steel vacuum chamber with tempered glass window, gauges and valves Ideal for High Temperature and Corrosive Chemicals
  • Steel Vacuum Chamber Stainless Steel Vacuum Chamber
  • Terra Universal Vacuum Chamber Overview

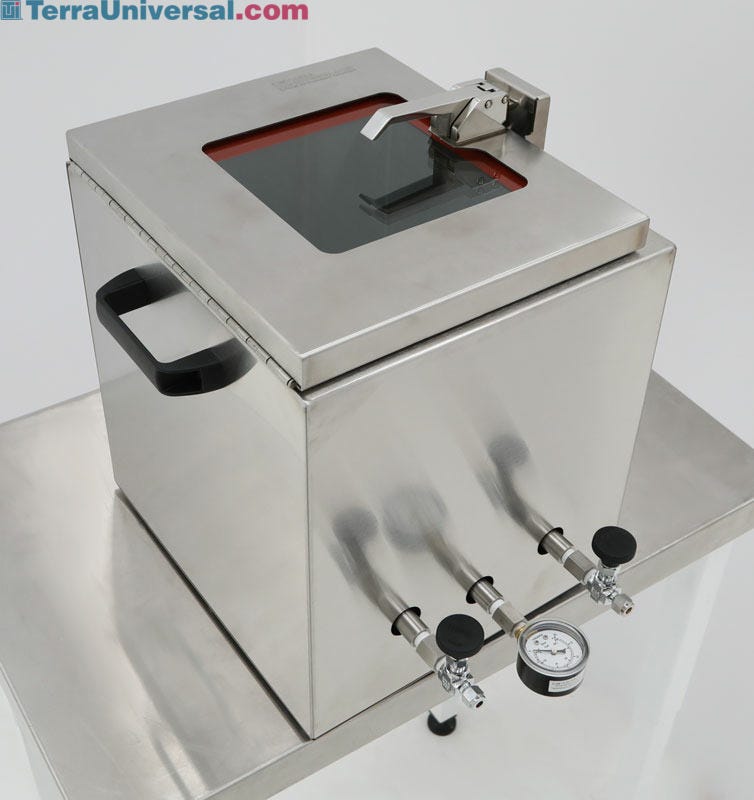

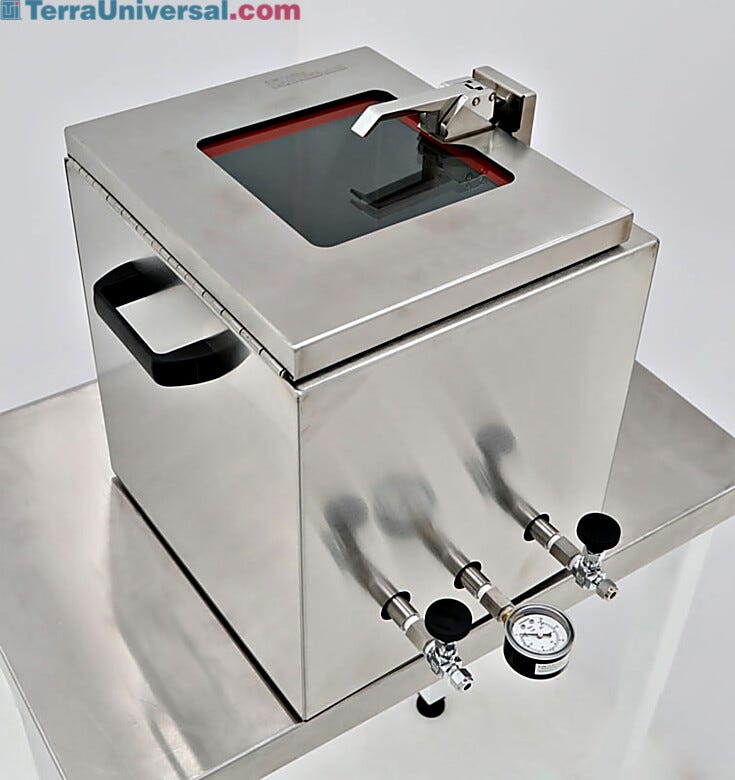

stainless steel vacuum chamber with tempered glass window, gauges and valves
Steel Vacuum Chamber

Features & Benefits

Features & Benefits

Ideal for High Temperature and Corrosive Chemicals

Unlike acrylic vacuum chambers, stainless steel vacuum chambers are more suitable for applications with higher temperatures or corrosive chemicals. The light weight, portable design uses double-wall 304 stainless steel sheet metal.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Industry-Leading Product Quality

At Terra, we strive to produce the highest quality products for our customers. Our product quality is enabled by high-grade manufacturing equipment, over 45 years of engineering expertise, and our commitment to continuously improve.

Vacuum Chamber on Electric Height Adjusting Table

Electric height adjusting tables help easily position extremely heavy vacuum chambers to the right height to allow transfer of materials, or observe tests within the chamber.

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Electrode Feedthrough
    Optional cord/cable feed-throughs for power cords, sensor cables, data lines and thermocouple connectors.
  • Welch Rotary Vane Vacuum Pump
    This Rotary Vane vacuum pump offers high water vapor tolerance, light weight and high vacuum performance, making it ideal for many laboratory uses.
  • PC-Based Vacuum Control with Data Logging
    The eVAC Digital Vacuum Controller provides highly flexible control over vacuum levels by incorporating an electronically activated bleed valve, which adds the capability to reduce the applied vacuum.
