Select Product

Window Material

Material

Chamber Height

Terra Part #PriceShips in
Acrylic Acrylic 34" 23" 24.5" 2 1681-13D 51677 $2,53325-31 Days2
Polycarbonate Polycarbonate 34" 23" 24.5" 2 1681-14D 51678 $4,68425-31 Days3
Acrylic Acrylic 34" 23" 24.5" 2 1681-15D 51679 $2,18725-31 Days4
Polycarbonate Polycarbonate 34" 23" 24.5" 2 1681-16D 51680 $4,01325-31 Days5
Window Material
Material
Chamber Width
Chamber Depth
Chamber Height
Number of Glove Ports
Item ordered before. Click on bagde to see the order.
Demo Available
Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

Sturdy 0.5" thick walls suitable for ventilation or exhaust applications at -5" WC (<0.5% vacuum)

• Solvent-welded construction with continuous seams fuses walls together into one piece

• Clear construction (of acrylic or polycarbonate) provides full visibility of work in progress

• 10" (254 mm) round arm ports accommodate port covers and sleeve/glove combinations

• Select cylindrical vacuum chamber for higher vacuum levels

• Vacuum safety valve included to prevent damage to walls or seal

• 10" (254 mm) round arm ports accommodate port covers and sleeve/glove combinations

• Optional remote filter/blower module provides safe exhaust fume venting or purification

NOTE: The gloves cannot be used under negative pressure since the port covers must be shut while the chamber is under vacuum. The chamber must be back-filled to atmospheric pressure before materials inside the glovebox can be handled.

NOTE: Not designed as an air-tight containment chamber, nor should they be used with hazardous substances that require air-tight seals.

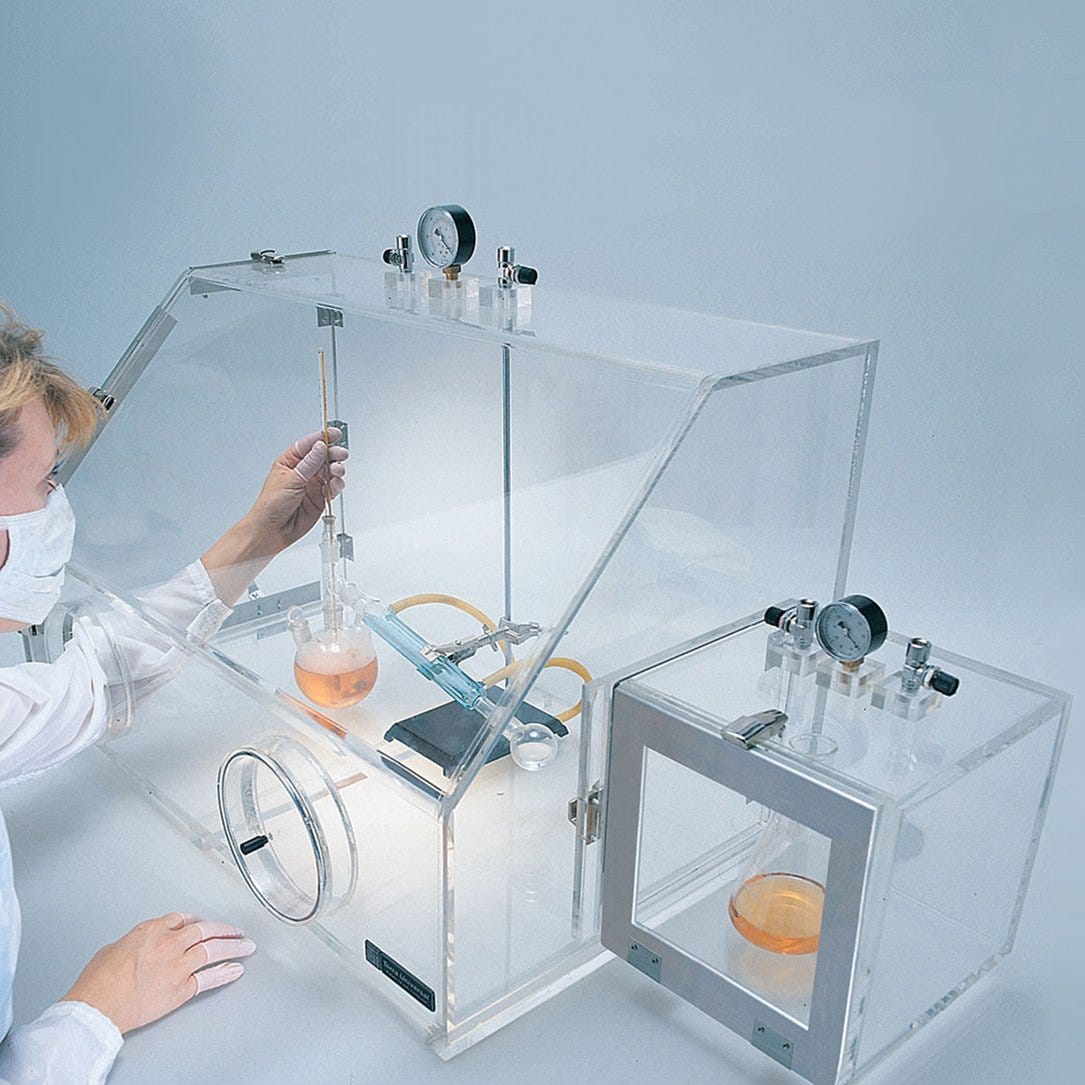

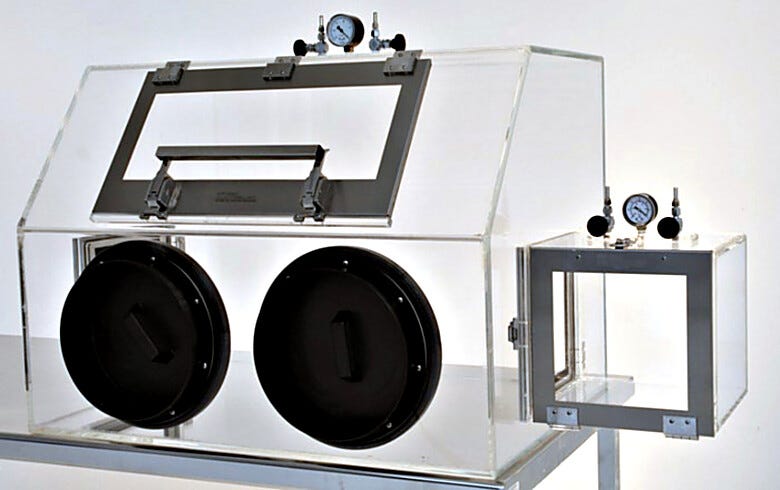

Series 200: Negative Pressure Glove Boxes

Standard Features

  • A Vacuum Gauge
    0 – 30"Hg vacuum gauge and dual vacuum shut-off valves simplify vacuum connection, release, and monitoring
  • B Vacuum safety switch
    Vacuum safety switch prevents excessive vacuum pressure
  • C Range of Material Choices
    Available in 0.5"-thick acrylic or polycarbonate supports negative pressure to -5"WG

Optional Features

  • 1 Air Lock
    Air lock supports negative pressure to -5"WG (vacuum gauge and valves included)
  • 2 Port Caps
    Port caps seal chamber

Not Shown: Range of Options - Other options include stainless steel work surface, acrylic full-vacuum antechamber, vacuum control module, and nitrogen generator

Features & Benefits

Features & Benefits

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. We accomplish this by harnessing high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our will to continuously improve.

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Vacuum Pressure Pump Diaphragm
    Oil-free and noiseless operation makes this motor-mounted unit one of the best suited vacuum pumps available for cleanroom environments.
  • High Caliber Hardware
    Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.
  • Negative-Pressure Acrylic Air Lock for Series 200 Glove Box
    The Series 200 Air Lock maintains negative pressure to 5"WC to allow parts transfer without loss of main chamber pressure; available in acrylic or polycarbonate; includes vacuum gauge and metering valves.
  • Glove Box Iris Port Adapter for 10" Ports
    The self-closing, clean silicone Iris Port Adapter attaches to Terra's 10"-diameter glove ports to allow easy access to chamber parts and processes (order port separately).
  • Low Vacuum Control Module
    Provides control for low-vacuum applications, ensuring safe, efficient pump operation; includes solenoid, vacuum gauge and on/off switches for pump and vacuum solenoid.
  • Stainless Steel Glovebox on Automatic Height Adjusting Table with N2 Generator
    Gloveboxes can easily mount to an automatic height adjusting table (28”-43”H). Ideal for workstations with sensitive equipment that undergo frequent height adjustment. A compact Nitrogen generator requires only a compressed air supply for continued nitrogen gas supply.
  • Air Locks Minimize Cross-Contamination
    Air locks provide a buffer space that minimizes cross-contamination and moisture fluctuation during parts transfer; standard mounting is right side (static-dissipative PVC model shown).
  • Acrylic Vacuum Antechamber, 24"L x 12" dia.
  • Welch Rotary Vane Vacuum Pump
    This Rotary Vane vacuum pump offers high water vapor tolerance, light weight and high vacuum performance, making it ideal for many laboratory uses.
  • PC-Based Vacuum Control with Data Logging
    The eVAC Digital Vacuum Controller provides highly flexible control over vacuum levels by incorporating an electronically activated bleed valve, which adds the capability to reduce the applied vacuum.
