3900-12
Terra Part # 3900-12
$2,543
Usually ships in 18-24 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 3900-12
57217

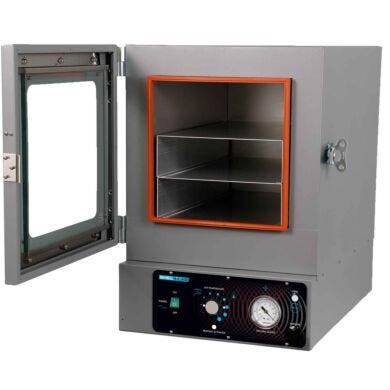

Oven; 1.7 cu. ft., Vacuum Analog, SVAC, Stainless Steel, 120 V
Product Details
  • Maximum Temperature: 220°C
  • Economy unit with cross ventilation for fast and gentle drying of heat sensitive material
  • Analog temperature control
  • Stainless steel interior with three shelves
  • Two-Year Manufacturer Warranty
  • Internal Dimensions (WxDxH) : 12 x 20 x 12 (304 x 508 x 304 mm)
  • Temperature Range: Ambient +15°C to 210°C
  • Temperature Uniformity: +/-3.0 at 60°C, +/-9.0 at 120°C, +/-13.0 at 200°C
  • Temperature Increments: Analog Control
  • Number of Shelves: 2
  • Material: Stainless steel interior and tempered glass viewing window
  • Vacuum Range: -101 to -1010 mbar
  • Heat-up Time: 90% of a 150°C set point in 90 minutes
  • Max. Energy Consumption: 1200/1150 W
  • Airflow Design: Cross ventilation
  • Analog temperature control and dial vacuum gauge
  • Built-in Overtemperature protection
  • Positive latch door handle and spring-loaded glass for excellent vacuum seal
  • Silicone gaskets (use Buna gaskets for solvent applications and Fluorosilicone or Viton for acidic applications)

Type: Vacuum

Maximum Temperature: 220°C

Material: Stainless Steel

Capacity: 1.7 cu. ft.

Convection Type: Vacuum

Controls: Analog

Model: SVAC

Manufacturer SKU: SVAC2E

Capacity Range: <4 cubic feet

Unit of Measure: EA

Electrical Specifications: 120 V, 1,200 W, 60 Hz

Weight, Product: 108 Lbs

Dimensions, Product: 18.5"W x 27.8"D x 25.3"H

Weight, Shipping: 157 Lbs

Dimensions, Shipping: 33"W x 33"D x 38"H

Package Type: Palletized

Buy Accessories
  1. Equipment Testing
    Request Quote
    Increase Down Increase Up

Ovens

  • Shel Lab Large Capacity Vacuum Oven Shel Lab Large Capacity Vacuum Oven

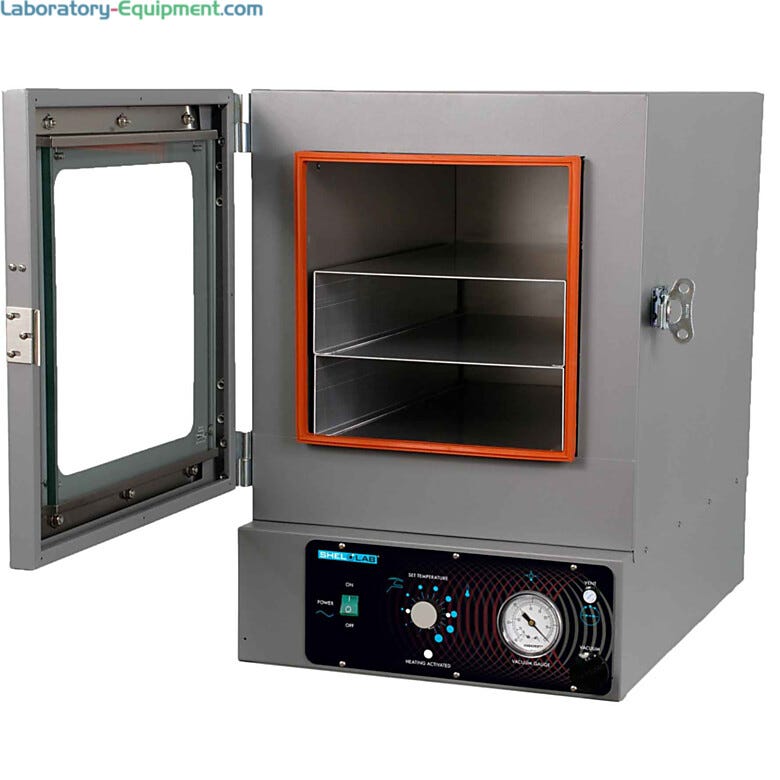

  • Shel Lab Analog Economy Model Oven Shel Lab Analog Economy Model Oven
  • Shel Lab Digital Standard Model Vacuum Oven Shel Lab Digital Standard Model Vacuum Oven

Features and Benefits

Learn More: Shel Lab Vacuum Ovens

Additional Features of Shel Lab Vacuum Ovens

Complete list of Applications
  • Aging Tests
  • Chemical Resistance Studies
  • Desiccating
  • Drying of Paper
  • Dry Sterilization
  • Electronic Process Control
  • Moisture Determination
  • Out Gassing Liquids
  • Out Gassing Solids
  • Plating
  • Rubber and Textiles
  • Vacuum Storage
Model SVAC1 SVAC1E SVAC2 SVAC2E SVAC4 SVAC9-2
External Dimensions (WxDxH) 17.5 x 22.8 x 23.5 in. (445 x 578 x 597mm) 15.5 x 19 x 22.5 in. (39.4 x 48.3 x 57.2 mm) 20.5 x 29.5 x 26.3 in. (521 x 750 x 667mm) 18.5 x 27.8 x 25.3 in. (470 x 705 x 642 mm) 26.5 x 34.5 x 32.3 in. (674 x 877 x 820 mm) 36 x 46.5 x 62 in. (915 x 1182 x 1575 mm)
Internal Dimensions (WxDxH) 9 x 12 x 9 in. (228 x 304 x 228 mm) 9 x 12 x 9 in. (228 x 304 x 228 mm) 12 x 20 x 12 (304 x 508 x 304 mm) 12 x 20 x 12 (304 x 508 x 304 mm) 18 x 24 x 18 in. (457 x 609 x 457 mm ) 28 x 24 x 24 in. (711 x 609 x 609 mm)
Electrical 115V, 60 Hz 115V, 60 Hz 115V, 60 Hz 115V, 60 Hz 115V, 60 Hz 220 - 230 volts
Capacity 0.6 Cu. Ft.(16L) 0.6 Cu. Ft. (16L) 1.7. (47 L) 1.7. (47 L) 4.5. (127 L) 9.3. (264 L)
Temperature Range Ambient +10°C to 220°C Ambient +15°C to 210°C Ambient +10°C to 220°C Ambient +15°C to 210°C Ambient +10°C to 220°C Ambient +5°C to 220°C
Temperature Uniformity +/-6% of set point +/-3.0 at 60°C, +/-9.0 at 120°C, +/-13.0 at 200°C +/-6% of set point +/-3.0 at 60°C, +/-9.0 at 120°C, +/-13.0 at 200°C +/-6% of set point +/- 7.0ºC at 150ºC
Temperature Increments 0.1°C Analog Control 0.1°C Analog Control 0.1°C 0.1°C
Number of Shelves 3 2 3 2 3 3
Material SS Interior SS Interior SS Interior SS Interior SS Interior SS interior with option for SS exterior
Max. Energy Consumption 840/1080 W 600/575 W 1200/1320 W 1200/1150 W 1560/1680 W Not Available
Airflow Design Cross Ventilation Cross Ventilation -- Cross Ventilation Cross Ventilation --
Agency Approval TUV - CUE -- TUV - CUE -- TUV- CUE --
Heat-up Time 90 minutes to 150°C
Vacuum Range -101 to -1010 mbar
Warranty Two-Year Manufacturer Warranty
