Terra Part # 3900-80
$15,055
Usually ships in 18-24 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 3900-80
65372

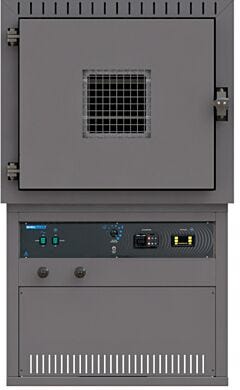

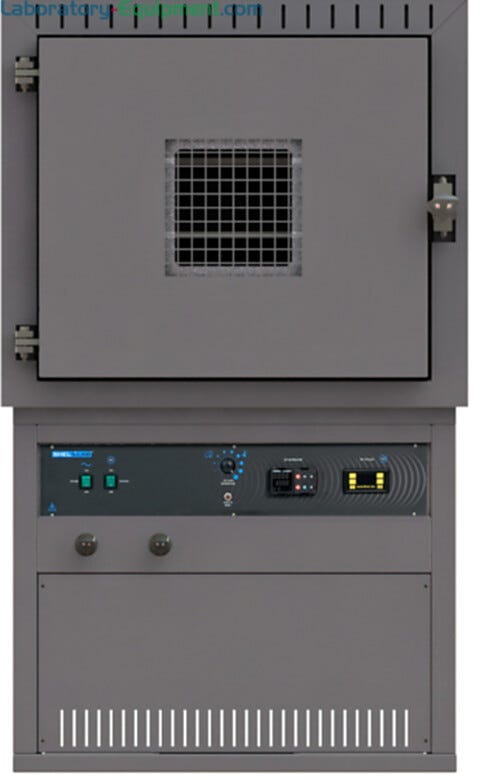

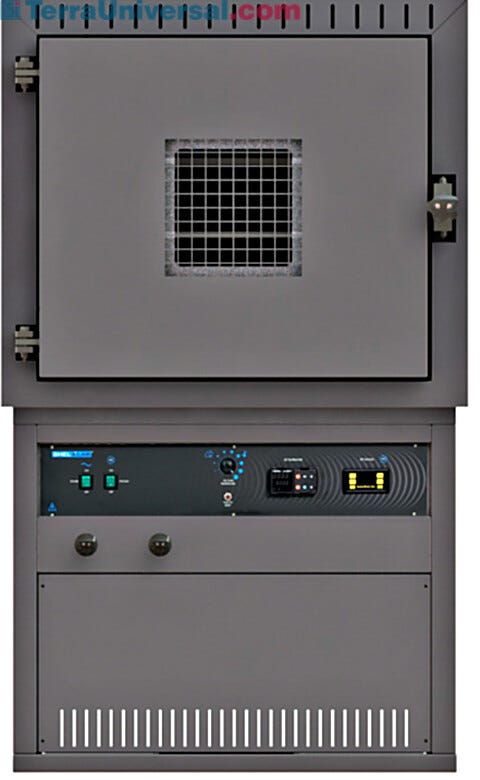

Oven; 9.3 cu. ft., Large Capacity, SVAC, Stainless Steel, 240 V

Maximum Temperature: 220°C

• Secured to mobile stand; cross ventilation for fast and gentle drying of heat sensitive material

• Programmable Watlow temperature control, Overtemperature safety and digital vacuum gauge

• Stainless steel interior with three shelves and a double plenum design

• Two-Year Manufacturer Warranty

• Internal Dimensions (WxDxH) : 28 x 24 x 24 in. (711 x 609 x 609 mm)

• Temperature Range: Ambient +5°C to 220°C

• Temperature Uniformity: +/- 7.0ºC at 150ºC

• Temperature Increments: 0.1°C

• Number of Shelves: 3

• Material: Stainless steel interior and tempered glass viewing window (SS exterior option)

• Vacuum Range: -101 to -1010 mbar

• Heat-up Time: 90 minutes to 150°C

• Max. Energy Consumption: not available

• Airflow Design: Cross ventilation

• Agency Approval: N/A

• Secured to mobile stand

• Equipped with Viton gasket for excellent high-temperature performance and chemical resistance

• Positive latch door handle and spring-loaded glass for excellent vacuum seal

Digital features:

• Fully Programmable Watlow Temperature Control

• Capable of 40 Step Ramp and Soak Profiles or 4

• Files With 10 Steps Per File

• Digital Vacuum Gauge

• RS485 Communication

• Note: Silicone gaskets (use Buna gaskets for solvent applications and Fluorosilicone or Viton for acidic applications)

Type: Large Capacity

Maximum Temperature: 220°C

Material: Stainless Steel

Capacity: 9.3 cu. ft.

Convection Type: Forced Air

Controls: Digital

Model: SVAC

Manufacturer SKU: SVAC9-2

Capacity Range: 9 to 15 cubic feet

Unit of Measure: EA

Marks & Listings: TUV - CUE

Electrical Specifications: 240 V, 50/60 Hz

Weight, Product: 492 Lbs

Dimensions, Product: 36"W x 46.5"D x 62"H

Weight, Shipping: 984 Lbs

Dimensions, Shipping: 43"W x 51"D x 80"H

Package Type: Palletized

Buy Accessories
  1. Equipment Testing and Certification
    Request Quote
    Increase Down Increase Up

Ovens

  • Shel Lab Large Capacity Vacuum Oven Shel Lab Large Capacity Vacuum Oven
  • Shel Lab Analog Economy Model Oven Shel Lab Analog Economy Model Oven
  • Shel Lab Digital Standard Model Vacuum Oven Shel Lab Digital Standard Model Vacuum Oven
Shel Lab Large Capacity Vacuum Oven
Shel Lab Analog Economy Model Oven
Shel Lab Digital Standard Model Vacuum Oven

Features and Benefits

Compare Vacuum Ovens by Shel Lab

Additional Features of Shel Lab Vacuum Ovens

Complete list of Applications
  • Aging Tests
  • Chemical Resistance Studies
  • Desiccating
  • Drying of Paper
  • Dry Sterilization
  • Electronic Process Control
  • Moisture Determination
  • Out Gassing Liquids
  • Out Gassing Solids
  • Plating
  • Rubber and Textiles
  • Vacuum Storage
ModelSVAC1SVAC1ESVAC2SVAC2ESVAC4SVAC9-2
External Dimensions (WxDxH)17.5 x 22.8 x 23.5 in. (445 x 578 x 597mm)15.5 x 19 x 22.5 in. (39.4 x 48.3 x 57.2 mm)20.5 x 29.5 x 26.3 in. (521 x 750 x 667mm)18.5 x 27.8 x 25.3 in. (470 x 705 x 642 mm)26.5 x 34.5 x 32.3 in. (674 x 877 x 820 mm)36 x 46.5 x 62 in. (915 x 1182 x 1575 mm)
Internal Dimensions (WxDxH)9 x 12 x 9 in. (228 x 304 x 228 mm)9 x 12 x 9 in. (228 x 304 x 228 mm)12 x 20 x 12 (304 x 508 x 304 mm)12 x 20 x 12 (304 x 508 x 304 mm)18 x 24 x 18 in. (457 x 609 x 457 mm )28 x 24 x 24 in. (711 x 609 x 609 mm)
Electrical115V, 60 Hz115V, 60 Hz115V, 60 Hz115V, 60 Hz115V, 60 Hz220 - 230 volts
Capacity0.6 Cu. Ft.(16L)0.6 Cu. Ft. (16L)1.7. (47 L)1.7. (47 L)4.5. (127 L)9.3. (264 L)
Temperature RangeAmbient +10°C to 220°CAmbient +15°C to 210°CAmbient +10°C to 220°CAmbient +15°C to 210°CAmbient +10°C to 220°CAmbient +5°C to 220°C
Temperature Uniformity+/-6% of set point+/-3.0 at 60°C, +/-9.0 at 120°C, +/-13.0 at 200°C+/-6% of set point+/-3.0 at 60°C, +/-9.0 at 120°C, +/-13.0 at 200°C+/-6% of set point+/- 7.0ºC at 150ºC
Temperature Increments0.1°CAnalog Control0.1°CAnalog Control0.1°C0.1°C
Number of Shelves323233
MaterialSS InteriorSS InteriorSS InteriorSS InteriorSS InteriorSS interior with option for SS exterior
Max. Energy Consumption840/1080 W600/575 W1200/1320 W1200/1150 W1560/1680 WNot Available
Airflow DesignCross VentilationCross Ventilation--Cross VentilationCross Ventilation--
Agency ApprovalTUV - CUE--TUV - CUE--TUV- CUE--
Heat-up Time90 minutes to 150°C
Vacuum Range-101 to -1010 mbar
WarrantyTwo-Year Manufacturer Warranty
