Select Product
Voltage

Type

Material

Controls

Maximum Temperature

Capacity

Convection Type

Model

Manufacturer SKU

Terra Part # Price Ships in
120 V General Protocol Coated Steel Digital 250°C 2.3 cu. ft. Gravity Heratherm 51028112 3700-87 53043 $2,056 15-21 Days 2
Ships Free
120 V General Protocol Stainless Steel 250°C 3.7 cu. ft. Gravity Heratherm 51028872 3700-88 53044 $2,373 5-7 Days 3
Ships Free In stock
120 V General Protocol Stainless Steel 250°C 6.2 cu. ft. Gravity Heratherm 51028874 3700-89 53045 $2,852 10-20 Days 4
Ships Free
120 V General Protocol Stainless Steel 250°C 2.3 cu. ft. Mechanical Heratherm 51028121 3700-90 53046 $2,395 5-7 Days 5
Ships Free In stock
120 V General Protocol Stainless Steel 250°C 3.6 cu. ft. Mechanical Heratherm 51028873 3700-91 53047 $2,852 10-20 Days 6
Ships Free
120 V General Protocol Stainless Steel 250°C 6.3 cu. ft. Mechanical Heratherm 51028875 3700-92 53048 $3,324 10-20 Days 7
Ships Free
240 V General Protocol Stainless Steel 250°C 3.7 cu. ft. Gravity Heratherm 51028113 3614-78 54384 $2,373 15-21 Days 8
Ships Free
240 V General Protocol Stainless Steel 250°C 6.2 cu. ft. Gravity Heratherm 51028114 3614-80 54386 $2,852 10-20 Days 9
Ships Free
208/240 V, US Plug General Protocol Coated Steel 300°C 14.8 cu. ft. Gravity Heratherm 51029327 3614-81 54387 $5,336 10-20 Days 10
208/240 V, US Plug General Protocol Coated Steel 300°C 27.3 cu. ft. Gravity Heratherm 51029339 3614-82 54388 $7,333 15-21 Days 11
240 V General Protocol Stainless Steel 250°C 3.7 cu. ft. Mechanical Heratherm 51028122 3614-86 54391 $2,852 10-20 Days 12
Ships Free
240 V General Protocol Stainless Steel 250°C 6.3 cu. ft. Mechanical Heratherm 51028123 3614-88 54393 $3,324 10-20 Days 13
Ships Free
Voltage
Type
Material
Controls
Maximum Temperature
Capacity
Convection Type
Model
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details

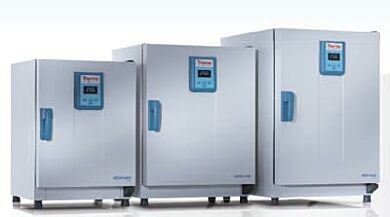

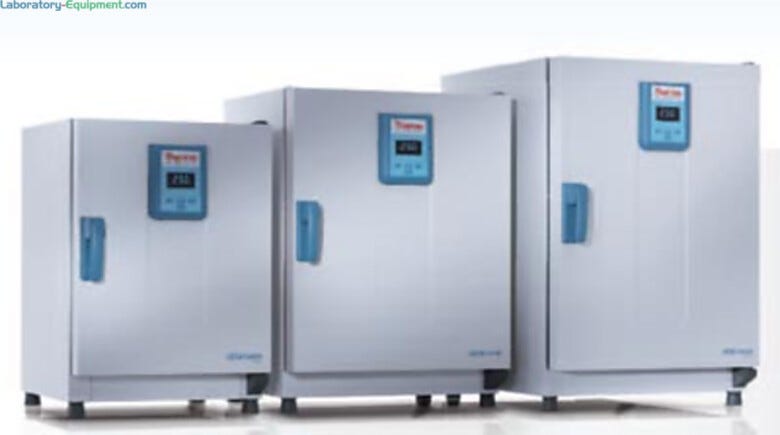

  • Ideal for routine heating and drying applications in research, clinical or industrial laboratory environments, energy efficient
  • Heratherm General Protocol Ovens are available in Gravity
  • Convection and Mechanical Convection models in benchtop and large capacity sizes.
  • Low energy usage, compact footprint to volume ratio and stackable (benchtop) with built-in timer
  • Doors can be opened over 180° for easy access and cleaning
  • Microprocessor control with vacuum fluorescent display
  • Chamber made with corrosion resistant stainless steel

Ovens

  • Heratherm General Protocol Gravity or Convection Oven in 3 sizes Heratherm General Protocol Ovens
Features & Benefits

Features & Benefits

Learn More: Gravity and Mechanical Convection Models

Gravity vs. Mechanical Convection of Heratherm General Protocol Ovens

Gravity convection involves gentle drying and heating with low air turbulences ideal for working with materials that are sensitive to airflow such as powders and foils. These units are designed to protect delicate samples while offering temperature uniformity of ±°C with temperature stability of ±0.4°C at 150°C.

Mechanical convection is suitable for faster sample drying and heating with superior temperature uniformity of ±3.3°C with a temperature stability of ±0.3°C at 150°C.
Gravity Convection Models
  • Low turbulence gentle heating and drying of material sensitive to airflow
  • Protects delicate samples and temperature uniformity of ±3.5 °C with temperature stability of ±0.4 °C at 150 °C
  • Ideal for gentle drying applications: electronics, pharmaceutical preparations, soil, sand, powders, paper and textile
  • Ideal for curing paint adhesives, plastics and metals; vulcanization of rubber; heated storage of pills and drugs
Mechanical Convection Models
  • For fast drying of glassware, powders, paper and textile
  • Fast temperature recovery after door is opened
  • Excellent temperature uniformity of ±2.9 °C with temperature stability of ±0.3 °C at 150
Additional Features for Heratherm General Protocol Ovens
  • Ideal for everyday heating and drying applications up to 250°C
  • Large, easy to view vacuum fluorescent display
  • Chambers made with corrosion-resistant stainless-steel
  • Easy to use microprocessor-based touch button controls
  • Automatic over temperature alarm system protects samples
  • Performs routine check with every start for optimal performance levels
  • Option to use exhaust vent as access port for external temperature sensor
  • Flexible shelving system for maximum storage
  • Easy to clean smooth inner casing with rounded corners
  • Manual fresh air damper controls over air exchanges
  • RS232 data interface; performs routine check upon start of unit
  • Accessories and factory installed options available
Controller Microprocessor control with vacuum flourescent display
Material Chamber made with corrosion resistant stainless steel
Timer On / Off
Temperature Range
  • 50° to 250°C (60, 100, 180L)
  • Ambient +10° to 300°C ( 750L)
Max Shelf Load
  • 25kg (55 lbs.) (60, 100, 180L)
  • 40kg (88 lbs.) (750L)

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Universal Base Stands Offer Excellent Versatility

    Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
  • Universal Stand Adjusts to Fit a Wide Range of Equipment

    Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
  • Additional Wire Mesh Shelf

    Stainless steel shelf for Heratherm large capacity ovens. Load weight is 400lbs; purchase individually.
  • Support Stands with Casters

    Optional casters for Heratherm Oven provides mobility to an otherwise large oven
  • Stacking Kits for Heratherm Ovens

    Available stacking kits for Thermo Fisher Heratherm Ovens to reduce space consumption.
  • Fresh Air Filter

    Fresh air particle filter for connection to the fresh air vent (intake) for all Heratherm Ovens
  • Shelving for Gravity and Mechanical Convection Ovens

    Heratherm Protocol Ovens available with optional shelf accessories in wire, perforated or reinforced steel shelves
