Select Product
Voltage

Type

Material

Controls

Maximum Temperature

Capacity

Convection Type

Model

Manufacturer SKU

Capacity Range

Terra Part # Price Ships in
120 V Advanced Protocol Coated Exterior Digital 250°C 1.8 cu. ft. Mechanical Heratherm 51028265 <4 cubic feet 1711-55 55702 $4,451 10-20 Days 2
Ships Free Free shipping in contiguous USA
120 V Advanced Protocol Coated Exterior Digital 250°C 2.2 cu. ft. Mechanical Heratherm 51028267 <4 cubic feet 1711-61 55708 $4,696 15-21 Days 3
Ships Free Free shipping in contiguous USA
120 V Advanced Protocol Coated Steel Digital 330°C 2.3 cu. ft. Gravity Heratherm 51028115 <4 cubic feet 3700-93 53049 $2,902 15-21 Days 4
Ships Free Free shipping in contiguous USA
208 V Advanced Protocol Coated Steel Digital 330°C 3.5 cu. ft. Gravity Heratherm 51028116 <4 cubic feet 3700-94 53050 $3,147 15-21 Days 5
Ships Free Free shipping in contiguous USA
208 V Advanced Protocol Coated Steel Digital 330°C 6.0 cu. ft. Gravity Heratherm 51028117 4 to 8 cubic feet 3700-95 53051 $3,795 15-21 Days 6
120 V Advanced Protocol Coated Steel Digital 330°C 2.2 cu. ft. Mechanical Heratherm 51028124 <4 cubic feet 3700-96 53052 $3,527 15-21 Days 7
Ships Free Free shipping in contiguous USA
208 V Advanced Protocol Coated Steel Digital 330°C 6.1 cu. ft. Mechanical Heratherm 51028126 4 to 8 cubic feet 3700-98 53054 $4,720 15-21 Days 8
208/240 V, US Plug Advanced Protocol Stainless Steel Digital 300°C 14 cu. ft. Mechanical Heratherm 51029330 9 to 15 cubic feet 3614-72 54380 $10,120 15-21 Days 9
208/240 V, US Plug Advanced Protocol Stainless Steel Digital 300°C 25.8 cu. ft. Mechanical Heratherm 51029344 >15 cubic feet 3614-74 54381 $10,831 15-21 Days 10
208/240 V Advanced Protocol Coated Exterior Digital 250°C 3.5 cu. ft. Gravity Heratherm 51028929 <4 cubic feet 1711-53 55700 $4,079 10-20 Days 11
Ships Free Free shipping in contiguous USA
208/240 V Advanced Protocol Coated Exterior Digital 250°C 5.9 cu. ft. Gravity Heratherm 51028930 <4 cubic feet 1711-54 55701 $5,131 10-20 Days 12
Ships Free Free shipping in contiguous USA
208/240 V Advanced Protocol Coated Exterior Digital 250°C 3.5 cu. ft. Mechanical Heratherm 51028931 <4 cubic feet 1711-56 55703 $4,815 15-17 Days 13
Ships Free Free shipping in contiguous USA
208/240 V Advanced Protocol Coated Exterior Digital 250°C 6.0 cu. ft. Mechanical Heratherm 51028932 4 to 8 cubic feet 1711-57 55704 $5,993 15-21 Days 14
240 V Advanced Protocol Coated Steel Digital 330°C 5.9 cu. ft. Gravity Heratherm 51028144 4 to 8 cubic feet 1711-66 55790 $4,309 15-21 Days 15
240 V Advanced Protocol Stainless Steel Digital 330°C 6.4 cu. ft. Gravity Heratherm 51028712 4 to 8 cubic feet 1711-69 55793 $5,242 15-21 Days 16
Voltage
Type
Material
Controls
Maximum Temperature
Capacity
Convection Type
Model
Manufacturer SKU
Capacity Range
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details

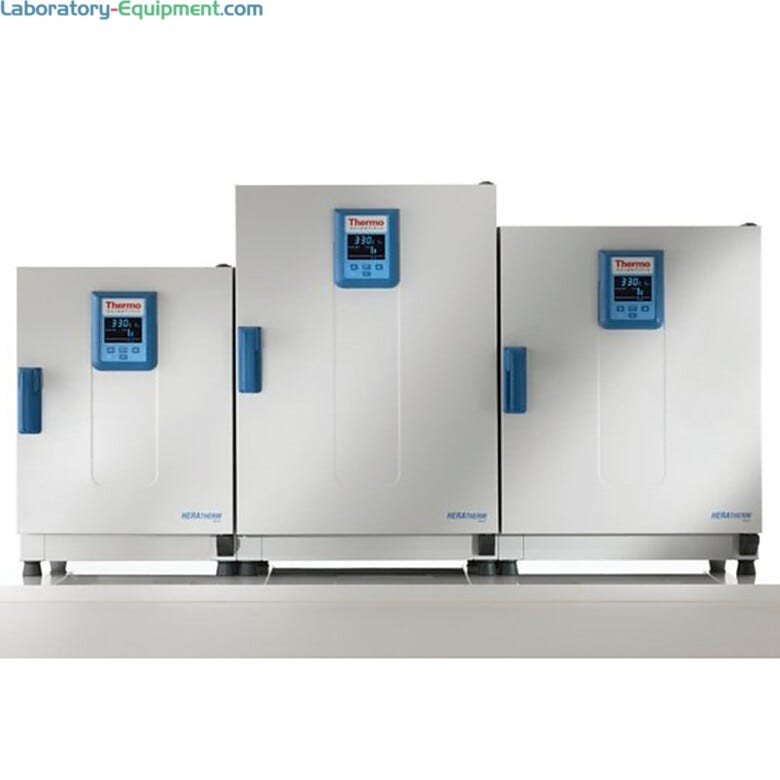

  • Heratherm Advanced Protocol ovens incorporate all the benefits of the General Protocol Ovens plus added features for superior temperature uniformity, stability and accuracy.
  • Outstanding temperature performance, a corrosion-resistant surface and corrosion-resistant stainless-steel inner chamber
  • Ovens meet the demanding requirements in clinical and pharmaceutical labs.
  • Models are ideal for applications requiring superior temperature accuracy and increased heating capability of up to 330°C
  • Gravity and Mechanical Convection models available in coated steel exterior or stainless steel exterior
  • Timer extends operational options and user can either program a recurring weekly timer or program the oven to turn on or off at designated times
  • Low energy consumption for 60 liter models: 170W usage (gravity convection) and 259W usage (mechanical convection) per hour to maintain 150°C
  • Faster heat-up and drying processes
  • Stores up to 10 programs (can be repeated) and up to 10 steps within each program

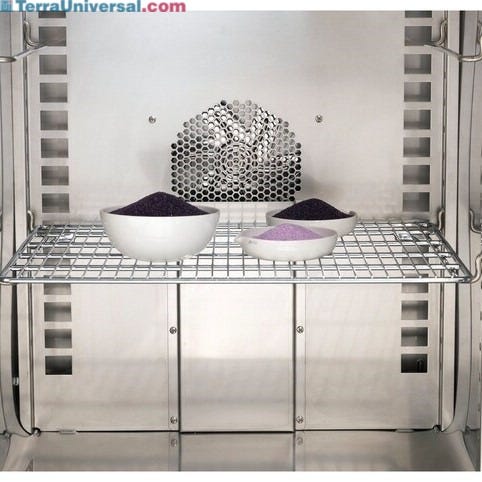

  • Application flexibility with 2-speed fan (for large capacity models)
  • Slow speed—minimal airflow (e.g. drying of powders)
  • High speed—faster drying and heating; better temperature stability and uniformity

Ovens

  • Heratherm General Protocol Gravity or Convection Oven in 3 sizes Heratherm General Protocol Ovens
Features & Benefits

Features & Benefits

Learn More: Gravity vs. Mechanical Convection

Additional Features

  • Auto-dry function saves energy by turning oven off when samples are dry (need optional temperature sensor to use this feature)
  • Door alarm notifies user when door is left open (for large capacity models)
  • Optional independent sample sensor shows exact sample temperature (sample sensor is optional)
  • Controller can be programmed for temperature ramps and dwells
  • Compact footprint/volume ratio, saves energy; benchtop units are stackable
  • Temperature accuracy over time ensured by simple calibration routine
  • Boost function on benchtop models speeds up heating process and eliminates the need to operate oven 24/7 (feature not available in large capacity units)
  • 180° door opening allows for easy access of samples and easy cleaning

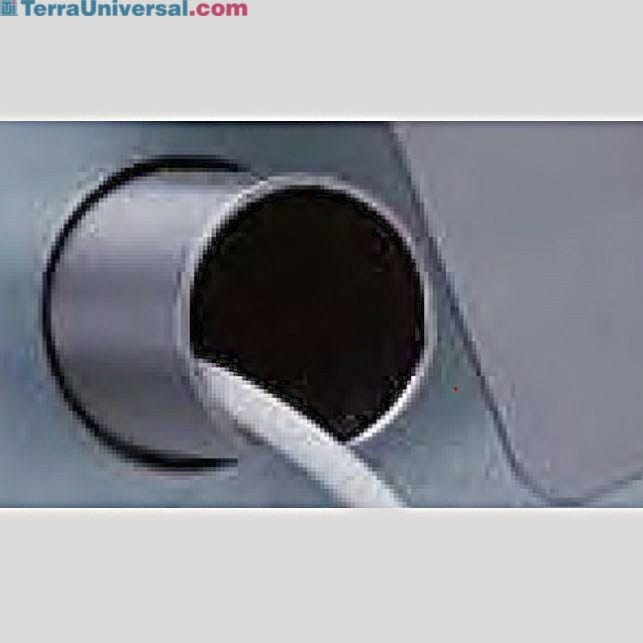

  • Access ports can be used to connect sensors for independent data monitoring
  • Large fluorescent display for clear viewing
  • Easy to use microprocessor-based touch button controls
  • Automatic over temperature alarm system protects samples
  • Option to use exhaust vent as access port for external temperature sensor
  • Easy to clean smooth inner casing with rounded corners
Gravity vs. Mechanical Convection
Gravity convection involves gentle drying and heating with low air turbulences ideal for working with materials that are sensitive to airflow such as powders and foils. These units protect delicate samples while offering temperature uniformity of ±4°C with temperature stability of ±0.4°C at 150°C.
  • Provides temperature stability of at least±0.3°C at 150°C and temperature uniformity of±2.9°C or better
  • Low turbulence gentle heating and drying of material sensitive to airflow
  • Ideal for gentle drying applications: electronics, pharmaceutical preparations, soil, sand, powders, paper and textile
  • Ideal for curing paint adhesives, plastics and metals; vulcanization of rubber; heated storage of pills and drugs
Mechanical convection is suitable for faster sample drying and heating with superior temperature uniformity of ±3.3°C with a temperature stability of ±0.3°CC at 150°C.
  • Provides temperature stability of at least±0.2°C at 150°C and temperature uniformity of±3.0°C or better
  • Ideal for drying of powders and other application-related airflow with adjustable fan speed
  • Delivers optimal temperature distribution
  • Quick drying of glassware, powders, paper and textile
  • Fast temperature recovery after door is opened
Controller Programmable Microprocessor control with vacuum flourescent display
Material Corrosion-resistant stainless steel (AISI 304) inner chamber
Timer On / Off, Recurring weekly, or real time
Temperature Range
  • 50° to 330°C (60, 100, 180L)
  • Ambient +10° to 250°C (400, 750L)
Max Shelf Load
  • 25kg (55 lbs.) (60, 100, 180L)
  • 40kg (88 lbs.) (750L)
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Universal Base Stands Offer Excellent Versatility

    Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
  • Universal Stand Adjusts to Fit a Wide Range of Equipment

    Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
  • Additional Wire Mesh Shelf

    Stainless steel shelf for Heratherm large capacity ovens. Load weight is 400lbs; purchase individually.
  • Support Stands with Casters

    Optional casters for Heratherm Oven provides mobility to an otherwise large oven
  • Stacking Kits for Heratherm Ovens

    Available stacking kits for Thermo Fisher Heratherm Ovens to reduce space consumption.
  • Fresh Air Filter

    Fresh air particle filter for connection to the fresh air vent (intake) for all Heratherm Ovens
  • Shelving for Gravity and Mechanical Convection Ovens

    Heratherm General Protocol Ovens provide optional shelf accessories in wire, perforated or reinforced steel shelves.
