Product Details
  • Available ISO Ratings: ISO 8
  • Manual or automated Hygienic Sliding GRP Glass Doors provide maximum visibility and minimize accidents when opening and closing
  • Easy-to-clean smooth, flush seamless construction prevents build-up of bacteria; constructed of non-organic materials
  • Frameless design available with optional glass sides and over screen
  • Meets FDA and cGMP requirements
  • Energy-efficient design prevents air leakage
  • Applications: Operating theater, cleanrooms, pharmaceutical manufacturing, isolation rooms
  • Features of Dortek GRP Sliding Glass Doors:
  • Glass reinforced polyester (GRP) doors resistant to various cleaning regimes
  • Durable doors will not rot, rust, swell warp or corrode
  • Maximizes efficiency, safety and hygiene in demanding environments
  • Strong and reliable design for high usage environments (outperforms wood and steel alternatives)
  • Ideal for use in operating theaters
  • Electric microprocessor controller features a range of functions for safe, efficient and perfect control of the door blades
  • Smooth track operation with extruded aluminum, top mount track system with nylon bearings
  • Frame Options:
  • Robust 90mm deep steel frame(standard)
  • Powder coated finish, stainless steel available as option
  • Incorporates stainless steel track cover both sides
  • Brushless DC motor for single or bi-parting doors
  • Door control: full interface with fire alarms and building management systems
  • Quiet operation ideal for noise sensitive environments such as hospitals, labs, offices
  • Glazing: standard clear obscured (optional)
  • Door weight: single (120kg), bi-parting (100 kg)
  • Maximum door size: 4m2
  • Note: air leakage data available upon request (ask a Terra product specialist for details)
  • Operation:
  • Opening and closing speed: Single 250-500mm/sec); Bi-Parting (250-450mm/sec)
  • Door opening: 0-10 seconds variable
  • Manual opening and closing force: Less than 3kgf
  • Options:
  • Glass side and overs screens
  • Activation options:  push buttons, touchless sensors and presence radars
  • Safety options: photo electric beams, radar and infra-red motion detection
  • Battery backup device
  • Interlinking between doors
  • Specify when ordering:
  • Door dimensions
  • Manual or automatic configuration
  • Single or double doors
  • Frame type
  • Glazing

ISO Class: ISO 7

Unit of Measure: EA

Automatic Sliding Doors

  • Dortek Doors Video Dortek Cleanrooom Doors Video
Dortek Doors Video

Features and Benefits

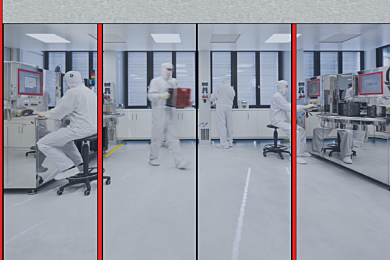

Glass Side and Over Screens

Dortek GRP Sliding Glass Doors with optional glass sides and over screen maximize visibility and provide a streamlined design ideal in open environments; choice of standard clear or obscure glazing

Automatic Doors Prevent Germ Transmission

Keep your cleanroom contamination-free with the right accessories and protocols. Touchless systems and automatic doors can boost your cleanliness, safety standards, and ISO ratings.
