- Available ISO Ratings: ISO 8

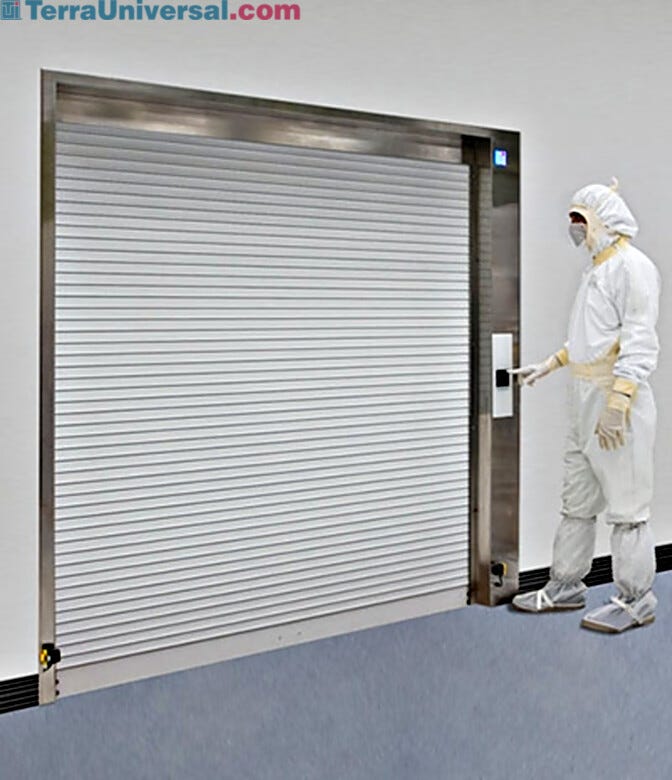

- Transfer carts and large equipment between rooms
- Aluminum door rolls up into a stainless steel housing positioned outside the cleanroom
- Touch panel operation with smooth glass front for easy cleaning
- Emergency stop button and safety switch when door contacts an object
- Constructed of cleanroom-compatible materials
Roll-Up Doors and Windows,Roll-Up Doors and Windows,Doors & Windows for Cleanrooms,Doors for Architects,Windows for Architects
1999-PP-05
1999-PP-05 74566
Roll-Up Doors and Windows
Read more
Manufactured By: Terra Universal
Print
Want a quote quickly ?
Submit a QuickQuote request Fasktrak Footer
Print Copy Copied
Here at Terra Universal, we’ve made it our mission to offer the best possible lead times in the industry. In addition to aggressive stocking programs and streamlined fulfillment, Terra Universal also offers several services that ensure you receive your products as quickly as possible.
Terra FasTrak Guaranteed Delivery Services
FasTrak 24/7 guarantees to meet the shipping date YOU specify, regardless of quoted lead times.
Terra Universal can provide FasTrak 24/7 service for both in-stock products and custom orders.
Examples of FasTrak 24/7 services include:
- Assigning a dedicated senior expediter
- Assigning a dedicated production team and up to three shifts per day
- Eliminating internal purchase approvals to speed the receipt of parts and materials
Terra FasTrak service fees are only meant to cover the cost of additional Terra services, they are not designed to generate profit. If Terra fails to ship on or before the specified date, Terra will refund up to 100% of the FasTrak charges at the client's request. This guarantee does NOT cover direct, special, consequential, or other damages. It is strictly limited to 100% of the amount paid for the FasTrak service.
The FasTrak 24/7 refund policy does not apply when a specified ship date is missed due to factors outside Terra's control, such as vendor performance or shipping company delays. The FasTrak 24/7 guarantee DOES apply in instances where the shipping date is missed due to Terra's own negligence.
Terra Sales and Customer Service
Mon - Fri, 09:00 AM - 08:00 PM PST
Tel: +1 (714) 578-6100
Email: [email protected]
Product Details
Product Details
- Available ISO Ratings: ISO 8
- Transfer carts and large equipment between rooms
- Aluminum door rolls up into a stainless steel housing positioned outside the cleanroom
- Touch panel operation with smooth glass front for easy cleaning
- Emergency stop button and safety switch when door contacts an object
- Constructed of cleanroom-compatible materials
Roll-Up Doors and Windows
High-Speed Roll-Up Door Obstruction Sensor- Touch Panel
- Door Position Sensors
- Interlock Override Switch

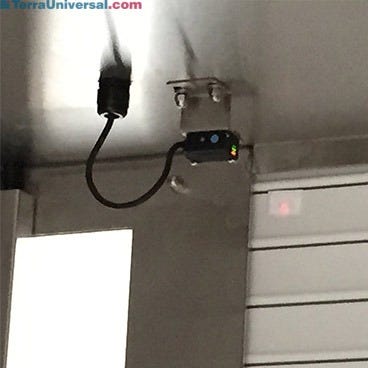

Optical safety sensors monitor chamber threshold with an infrared crossbeam, opening the door when the path is obstructed | 6771-00 displayed High-Speed Roll-Up Door Obstruction Sensor If either of two photoelectric sensors mounted along the inside edge of each chamber entrance detects an obstruction, the pass-through door reverses and the TUI logo flashes to prevent system damage.
Touch controls allow personnel to easily operate the pass-through even when carrying parts or equipment | 6705-31C displayed Touch Panel The flat touch interface is easy to clean and operated by gloved personnel and impervious to moisture; includes emergency stop.
Lasers mounted on the ceiling of the chamber monitor the position of the doors to ensure proper interlock operation | 6705-31C displayed Door Position Sensors Laser sensors mounted on the ceiling of the chamber monitor the position of the doors for proper interlock sequencing.
The interlock can be disabled for pass-through cleaning and maintenance | 6705-31C displayed Interlock Override Switch Key switches allow the door interlock to be disabled for chamber cleaning and maintenance.
Features & Benefits
Features & Benefits
Roll-Up Door Installation
Print Copy Copied
Installation
The Cleanroom Roll-Up Door is designed to be easy to install in either a Terra Universal Modular Cleanroom or an existing building. The two sides of the door frame are fitted into the wall cut-out and fastened together. The door motor housing is then mounted at the top of the door frame, along with the electrical box that houses the control board. The slatted aluminum door feeds out of the motor housing and into the tracks built into the door frame. The power cord extends from the control box on top of the motor housing and can be connected to any standard outlet.
Refer to the Roll-Up Door manual for more detailed installation and operating instructions.
Continuous Product Improvement
At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.
Products Compliant With Your ISO Rating
Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and certify it with the serial numbers appended to your invoice, to be included in your compliance package.
