- Available ISO Ratings: ISO 6, ISO 7, ISO 8
- 240V standard - specify 208V, 460V or 480V when ordering
• Available ISO Ratings: ISO 6, ISO 7, ISO 8
• ISO Class: ISO 6
• UL File Number: E326560
• UL Standard: UL 507
• Unit of Measure: of 1
Air Showers & Tunnels,Air Showers,Air Showers,Air Showers,Air Showers
6010-PP-03
6010-PP-03 71574
Air Showers and Tunnels
Read more
Manufactured By: Terra Universal
Print
Want a quote quickly ?
Submit a QuickQuote request
Learn More: Terra's FasTrack Program
Print
Copy Copied
Here at Terra Universal, we’ve made it our mission to offer the best possible lead times in the industry. In addition to aggressive stocking programs and streamlined fulfillment, Terra Universal also offers several services that ensure you receive your products as quickly as possible.
Terra FasTrak Guaranteed Delivery Services
FasTrak 24/7 guarantees to meet the shipping date YOU specify, regardless of quoted lead times.
Terra Universal can provide FasTrak 24/7 service for both in-stock products and custom orders.
Examples of FasTrak 24/7 services include:
- Assigning a dedicated senior expediter
- Assigning a dedicated production team and up to three shifts per day
- Eliminating internal purchase approvals to speed the receipt of parts and materials
Terra FasTrak service fees are only meant to cover the cost of additional Terra services, they are not designed to generate profit. If Terra fails to ship on or before the specified date, Terra will refund up to 100% of the FasTrak charges at the client's request. This guarantee does NOT cover direct, special, consequential, or other damages. It is strictly limited to 100% of the amount paid for the FasTrak service.
The FasTrak 24/7 refund policy does not apply when a specified ship date is missed due to factors outside Terra's control, such as vendor performance or shipping company delays. The FasTrak 24/7 guarantee DOES apply in instances where the shipping date is missed due to Terra's own negligence.
Terra Sales and Customer Service
Mon - Fri, 09:00 AM - 08:00 PM PST
Tel: +1 (714) 578-6100
Email: [email protected]
Product Details
Product Details
Air Showers and Tunnels
Standard Features
-

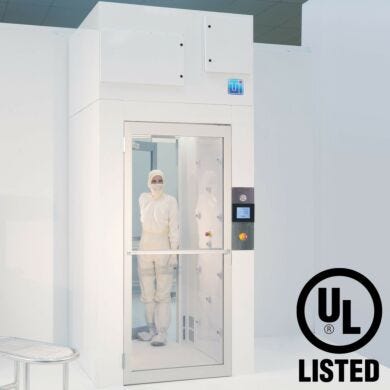

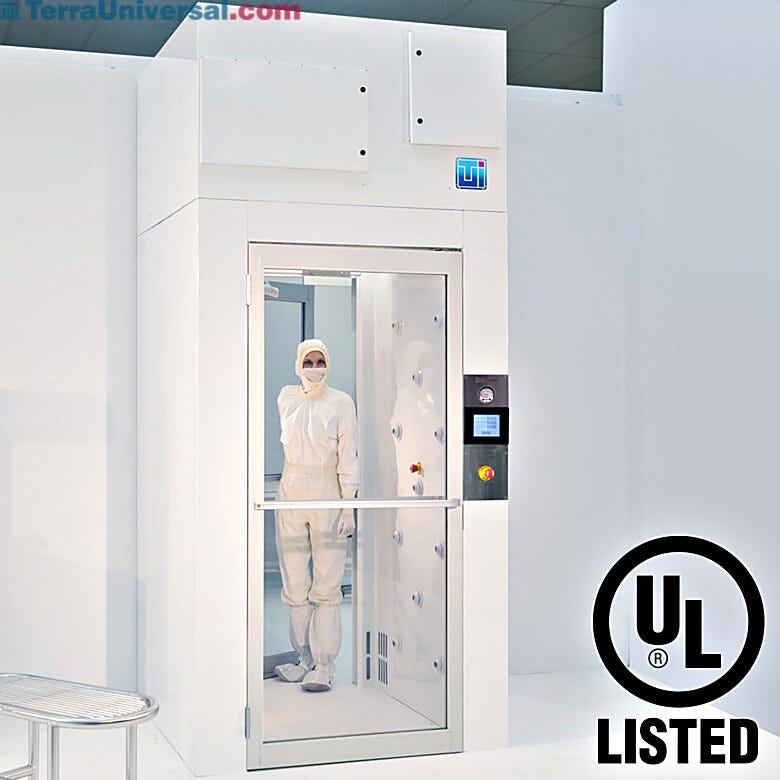

A Pressure GaugePhotohelic Pressure Gauge and touch-screen Control Panel
-
B Emergency Stop ButtonsEmergency Stop Buttons (2)
-
C Air NozzlesHand-adjustable Air Nozzles
-
D LED LightsLED Lights
-
E Status IndicatorStatus Indicator
-
F Electrical Access PanelElectrical Access Panel
-
G Fan/Filter HousingFan/Filter Housing
-
H Swing DoorsSwing Doors (2)
-
I 16-gauge Powder-coated SteelMaterial: 16-gauge Powder-coated Steel
Not Shown: Ionizing Bar
Air Showers & Tunnels
-
Pharmaceutical Air Lock Designs
-
Air Showers
-
BioSafe Stainless Steel Cleanroom – Integrated Air Shower
Airlocks safeguard cleanrooms, preventing cross contamination during transfers
Pharmaceutical Air Lock Designs
Airlocks are a crucial part of protecting your cleanroom from contamination while maintaining the required ISO rating. By preserving pressure differentials between adjoining rooms, air locks prevent cross contamination when personnel, materials and samples are transferred between contiguous spaces. The pressure cascade created from the gowning room to the personnel air lock to the ISO-rated cleanroom acts as a safeguard against the accidental influx of particles, dust and microbial contaminants.
Air Showers
Air showers add convenience to cleanrooms by allowing personnel to cleanly enter the controlled environment. Watch this video to understand how air showers work.
This stainless steel BioSafe cleanroom features an integrated air shower and pass-through chamber to minimize the inflow | 6600-31 displayed
BioSafe Stainless Steel Cleanroom – Integrated Air Shower
This stainless steel BioSafe cleanroom features an integrated air shower and pass-through chamber to minimize the inflow of contaminants.
Features & Benefits
Features and Benefits
Learn More: Customized Air Showers
Print
Copy Copied
Custom Air Shower Systems Available
Terra Universal offers custom fabrication to provide the optimal solution for your application.
Examples of requested modifications include:
- Custom floor plans, including 90º turns and U-shaped chambers (see examples below)
- 3-door configurations for connecting multiple rooms
- Custom flooring: stainless steel floor, no-floor, or raised aluminum floor grates
- Safety glass substituted for the SD-PVC panels on the doors
- Explosion-proof designs for safe operation near explosive or flammable materials
- Static ionization within the air shower enclosure
- Bumpers mounted on the interior walls to protect nozzles from carts
Motion Sensor
Air shower cycles are initiated by a motion sensor located on the ceiling of the chamber. If the LED lighting is set to Smart Lighting mode, the motion sensor will also turn on the lights when personnel enter the air shower.
Recirculation Vents
The closed-loop, recirculating design uses floor-level vents and plenums built into the walls to pull the contaminated air back through the HEPA filter, which removes 99.99% of particles as small as 0.3 microns.
LED Lighting
Low-profile LED lighting offers excellent visibility and power savings. Lights can either be manually controlled or set to automatic on/off via the touchscreen control panel.
Electromagnetic Interlock Door
Electromagnetic interlocking doors prevent personnel from accidentally opening both air shower doors at the same time, thereby preventing cross-contamination of the cleanroom and the external environment.
Emergency Exit Button
The emergency bypass button immediately shut down the air shower and release the doors when depressed; the doors also release when a power outage occurs to ensure operator safety.
Adjustable Air Shower Nozzles
Adjustable air nozzles on the walls and ceilings provide multi-directional flow of high-velocity, HEPA-filtered air to dislodge and remove particles from surfaces of personnel and parts before they enter the cleanroom.
Touchscreen Control Panel
The touchscreen panel controls cycle durations and entrance/exit delay times. Users can adjust these settings, as well as choose the operating mode for the LED lighting: always on; always off; or motion-detecting mode with shutoff-delay.
BioSafe®: Terra's Ultimate Cleanliness Rating
Terra's BioSafe products are designed for the most critical applications: no gaps and crevices where microbes colonize, rounded corners for easy disinfection, won't produce contaminants during sterilization, and exceeds cGMP, IEST, ASTM and ISO 14644-1 requirements.
Wide Selection of Global Shipping Options
Terra offers a broad range of global shipping services including door-to-door and white glove delivery. Each product is safely packaged in a heat-treated wooden crate that meets international shipping standards.
Products Compliant With Your ISO Rating
Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
-
High-Velocity Cleanroom Air Curtain
Cleanroom air curtains provide a blade-shaped shower of ULPA-filtered air to dislodge particles from personnel entering a cleanroom -

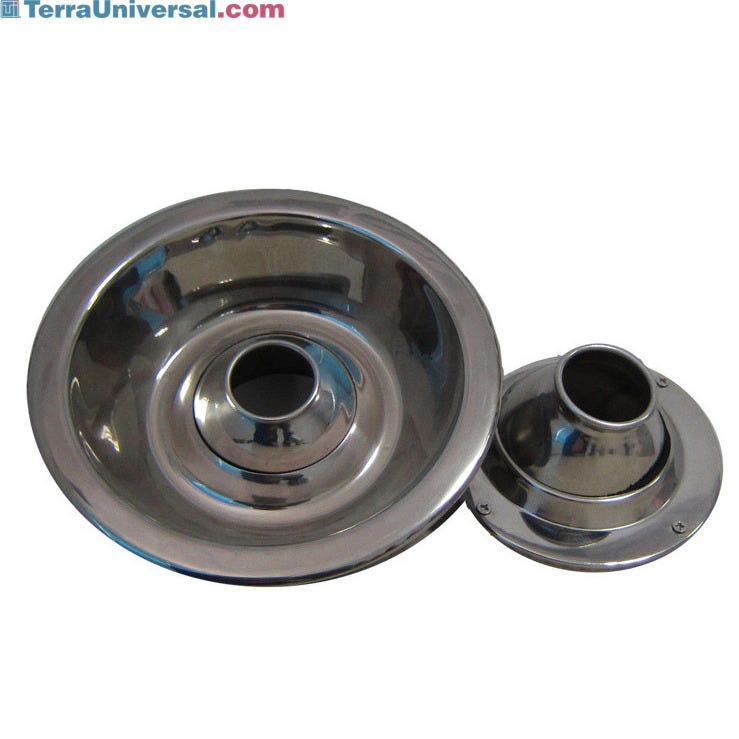

Adjustable Stainless Steel Air Shower nozzles
Stainless steel air shower nozzles withstand frequent sterilizing and minimize particle shedding. Recessed design provides more clearance inside air shower and protects nozzle from collisions. Protruding design has smaller footprint and greater adjustability. -
Stainless Steel Cleanroom Doors
The all-stainless steel construction and dual-pane flush-mount design greatly simplifies cleaning and sterilization. Terra's stainless steel cleanroom doors are pre-hung to a stainless steel door frame, easy to install in a regular wall or modular air shower.
Products similar to this one
-
Some ship in 25 - 31 days -
Some ship in 25 - 31 days -
Some ship in 25 - 31 days
Other products you may find relevant
-
Some ship in 1 - 3 days -
Some ship in 5 - 10 days -
Some ship in 15 - 21 days -
Some ship in 5 - 7 days -
Usually Ships in 1 - 5 days -
Usually Ships in 20 - 26 days -
Lean Rail; Dual Support Rail System, 304 Stainless Steel, 48" W x 11" D x 36" H, Floor Mounted$1,560Usually Ships in 1 - 3 days -
Some ship in 1 - 3 days -
Some ship in 1 - 3 days -
Some ship in 10 - 20 days -
Some ship in 1 - 3 days -
Some ship in 4 - 6 days -
Some ship in 50 - 70 days -
Some ship in 1 - 3 days -
Some ship in 5 - 7 days -
Some ship in 1 - 3 days -
Some ship in 1 - 3 days
Buy Accessories
Manuals & Resources
On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*
- FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
- FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
- FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.
Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.
* Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
Air Shower Frequently Asked Questions
What is an air shower?
An air shower is a self-contained enclosure that uses high velocity jets of HEPA filtered air to help decontaminate personnel and equipment prior to entering or exiting a controlled environment. The inside of the airshower is lined with multiple evenly distributed nozzles, pointed at various angles to optimize the air scrubbing process. The nozzles shoot concentrated streams of class 100 micro-filtered air to shake off and wash away loose particles and other contaminants clinging to the surface of personnel or equipment.
Operating as a closed-loop system, the particle-laden air is vacuumed out through exit vents along the bottom of the air shower. The air passes through pre-filters to capture larger particles before being pushed by the fan blower through HEPA or ULPA filters to capture remaining smaller particle contaminants. The pressurized filtered air then recirculates through the nozzles to continue the cleaning process.
Read more about air shower designs and applications.
What are some common air shower applications?
Decontamination air showers are used across many industries in facilities with different policies and cleanliness requirements. The most common industries include semiconductor, pharmaceutical, biological, industrial, and food/beverage.
In most cases, air showers are used to protect sensitive products/procedures inside a controlled environment, such as a cleanroom, from microscopic contaminants carried in by personnel. For cleanroom or lab applications, most facilities place an air shower at the entrance to a gowning room to reduce contaminants carried or generated by street clothes, prior to garbing with cleanroom apparel. These contaminants include fine particles such as dust that can ruin sensitive electronics, and also biological contaminants such as infectious fungus spores that can ruin sensitive plant crops or other cell cultures. Other facilities position air showers between the gowning area and the cleanroom, for workers to enter after they complete the garbing process. Cleanroom air showers and tunnels are also used to decontaminate equipment and other bulky materials (such as carts or loaded pallets) prior to entering a cleanroom.
For manufacturing facilities or construction areas with excessive hazardous metallic or organic dusts (for example lead, silica, asbestos, or wood dust), decontamination air showers can be used at exits to remove the microscopic particles from personnel or equipment. This helps contain the dangerous dusts produced in the manufacturing area and protect people outside manufacturing from harmful exposure that can cause serious if not fatal diseases.
What are the available air shower designs and configurations?
Terra offers standard cleanroom air shower and tunnel configurations plus countless customizable options for any application. The most popular and economical air shower design is the standard 2 door straight configuration, with the blower module mounted on-top of the enclosure.
Below is a list of common configurations and options. Call or chat with a product specialist to find the optimal solution for your unique requirements:
- Custom floor plans, including 90º turns and U-shaped chambers (see examples below)
- 3-door configurations to connect multiple rooms
- Low profile air shower designs with side-mounted blowers for ceilings as low as 96”
- Disassembled knock-down air shower configurations for easier shipping and transfer through space-restricted areas like small doorways or narrow hallways
- All-stainless steel air shower designs (chamber, doors, nozzles) for aseptic applications requiring frequent wipe downs

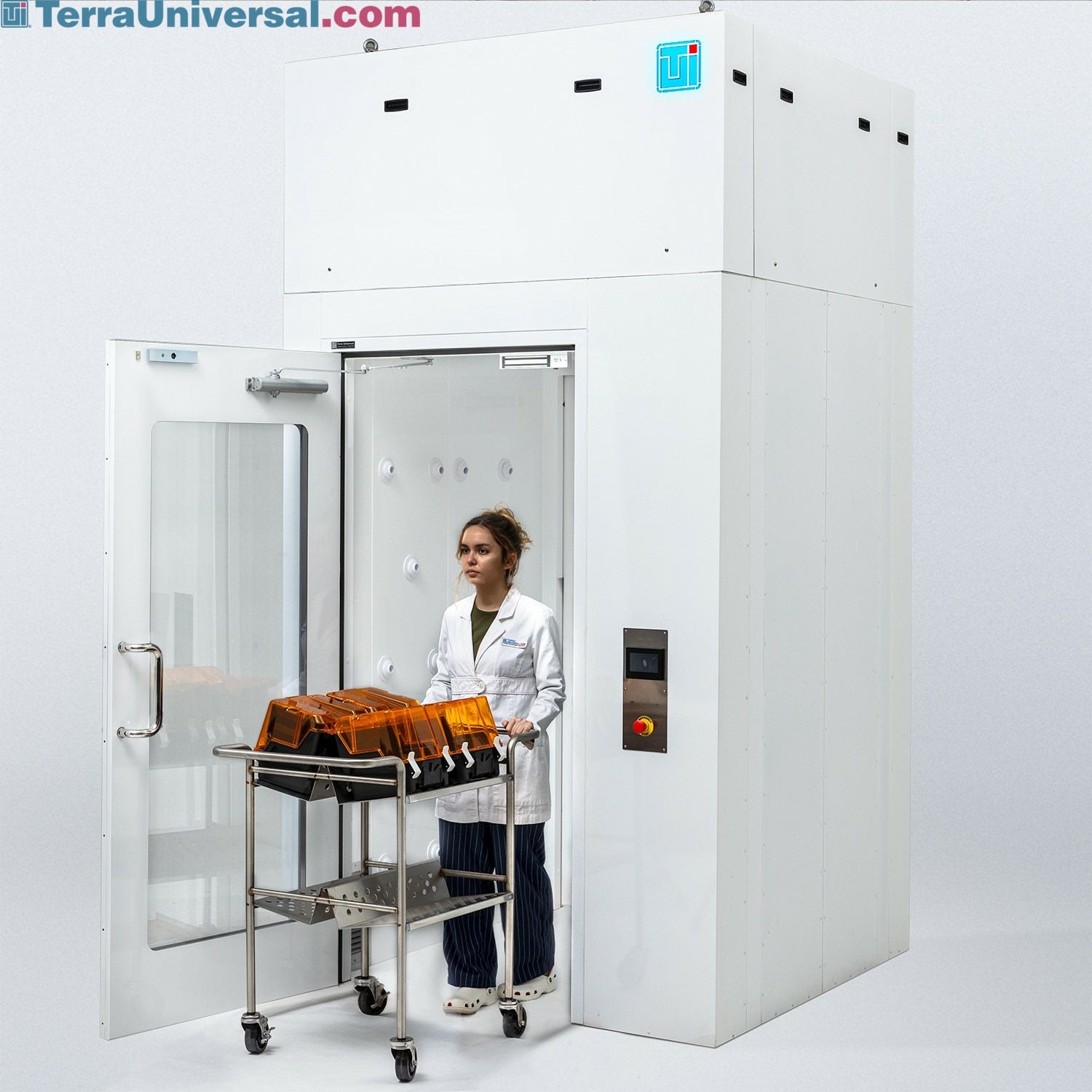

- Air shower pass through designs for transferring carts and other smaller equipment.
