Select Product
Voltage

Type

Material

Width

Depth

Height

Number of Blowers

ISO Class

Terra Part # Price Ships in
Specify Knock-Down Powder-Coated Steel 90" 96" 120" 1 Blower ISO 7 6010-27-KD 71286 Request Quote 25-31 Days 2
Specify Knock-Down Powder-Coated Steel 58" 44" 120" 1 Blower ISO 7 6010-19-KD 71278 Request Quote 25-31 Days 3
Specify Knock-Down Powder-Coated Steel 58" 56" 120" 1 Blower ISO 7 6010-20-KD 71279 Request Quote 25-31 Days 4
Specify Knock-Down Powder-Coated Steel 58" 84" 120" 1 Blower ISO 7 6010-23-KD 71282 Request Quote 25-31 Days 5
Specify Knock-Down Powder-Coated Steel 58" 96" 120" 1 Blower ISO 7 6010-57-KD 71302 Request Quote 25-31 Days 6
Specify Knock-Down Powder-Coated Steel 58" 120" 120" 1 Blower ISO 7 6010-58-KD 71303 Request Quote 25-31 Days 7
Specify Knock-Down Powder-Coated Steel 58" 144" 120" 3 Blowers ISO 7 6010-59-KD 71304 Request Quote 25-31 Days 8
Specify Knock-Down Powder-Coated Steel 58" 180" 120" 3 Blowers ISO 7 6010-60-KD 71305 Request Quote 25-31 Days 9
Specify Knock-Down Powder-Coated Steel 58" 240" 120" 3 Blowers ISO 7 6010-61-KD 71306 Request Quote 25-31 Days 10
Specify Knock-Down Powder-Coated Steel 58" 60" 120" 1 Blower ISO 7 6010-21-KD 71280 Request Quote 25-31 Days 11
Specify Knock-Down Powder-Coated Steel 58" 72" 120" 1 Blower ISO 7 6010-22-KD 71281 Request Quote 25-31 Days 12
Specify Knock-Down Powder-Coated Steel 70" 72" 120" 1 Blower ISO 7 6010-26-KD 71285 Request Quote 25-31 Days 13
Specify Knock-Down Powder-Coated Steel 52" 44" 116" 1 Blower ISO 7 6010-14-KD 71273 Request Quote 25-31 Days 14
Specify Knock-Down Powder-Coated Steel 52" 56" 116" 1 Blower ISO 7 6010-15-KD 71274 Request Quote 25-31 Days 15
Specify Knock-Down Powder-Coated Steel 52" 84" 120" 1 Blower ISO 7 6010-18-KD 71277 Request Quote 25-31 Days 16
Specify Knock-Down Powder-Coated Steel 52" 96" 120" 1 Blower ISO 7 6010-52-KD 71297 Request Quote 25-31 Days 17
Specify Knock-Down Powder-Coated Steel 52" 120" 120" 1 Blower ISO 7 6010-53-KD 71298 Request Quote 25-31 Days 18
Specify Knock-Down Powder-Coated Steel 52" 144" 120" 3 Blowers ISO 7 6010-54-KD 71299 Request Quote 25-31 Days 19
Specify Knock-Down Powder-Coated Steel 52" 180" 120" 3 Blowers ISO 7 6010-55-KD 71300 Request Quote 25-31 Days 20
Specify Knock-Down Stainless Steel 52" 44" 116" 1 Blower ISO 5 6010-00-KD 71257 Request Quote 25-31 Days 21
Specify Knock-Down Stainless Steel 52" 56" 116" 1 Blower ISO 5 6010-01-KD 71259 Request Quote 25-31 Days 22
Specify Knock-Down Stainless Steel 52" 60" 120" 1 Blower ISO 5 6010-02-KD 71261 Request Quote 25-31 Days 23
Specify Knock-Down Stainless Steel 52" 72" 120" 1 Blower ISO 5 6010-03-KD 71262 Request Quote 25-31 Days 24
Specify Knock-Down Stainless Steel 52" 84" 120" 1 Blower ISO 5 6010-04-KD 71263 Request Quote 25-31 Days 25
Specify Knock-Down Stainless Steel 58" 44" 120" 1 Blower ISO 5 6010-05-KD 71264 Request Quote 25-31 Days 26
Specify Knock-Down Stainless Steel 58" 56" 120" 1 Blower ISO 5 6010-06-KD 71265 Request Quote 25-31 Days 27
Specify Knock-Down Stainless Steel 58" 60" 120" 1 Blower ISO 5 6010-07-KD 71266 Request Quote 25-31 Days 28
Specify Knock-Down Stainless Steel 58" 72" 120" 1 Blower ISO 5 6010-08-KD 71267 Request Quote 25-31 Days 29
Specify Knock-Down Stainless Steel 58" 84" 120" 1 Blower ISO 5 6010-09-KD 71268 Request Quote 25-31 Days 30
Specify Knock-Down Stainless Steel 64" 60" 120" 1 Blower ISO 5 6010-10-KD 71269 Request Quote 25-31 Days 31
Specify Knock-Down Stainless Steel 64" 72" 120" 1 Blower ISO 5 6010-11-KD 71270 Request Quote 25-31 Days 32
Specify Knock-Down Stainless Steel 70" 72" 120" 1 Blower ISO 5 6010-12-KD 71271 Request Quote 25-31 Days 33
Specify Knock-Down Stainless Steel 90" 96" 120" 1 Blower ISO 5 6010-13-KD 71272 Request Quote 25-31 Days 34
Specify Knock-Down Powder-Coated Steel 52" 60" 120" 1 Blower ISO 7 6010-16-KD 71275 Request Quote 25-31 Days 35
Specify Knock-Down Powder-Coated Steel 52" 72" 120" 1 Blower ISO 7 6010-17-KD 71276 Request Quote 25-31 Days 36
Specify Knock-Down Powder-Coated Steel 64" 60" 120" 1 Blower ISO 7 6010-24-KD 71283 Request Quote 25-31 Days 37
Specify Knock-Down Powder-Coated Steel 64" 72" 120" 1 Blower ISO 7 6010-25-KD 71284 Request Quote 25-31 Days 38
Specify Knock-Down Stainless Steel 52" 96" 120" 1 Blower ISO 5 6010-42-KD 71287 Request Quote 25-31 Days 39
Specify Knock-Down Stainless Steel 52" 120" 120" 1 Blower ISO 5 6010-43-KD 71288 Request Quote 25-31 Days 40
Specify Knock-Down Stainless Steel 52" 144" 120" 3 Blowers ISO 5 6010-44-KD 71289 Request Quote 25-31 Days 41
Specify Knock-Down Stainless Steel 52" 180" 120" 3 Blowers ISO 5 6010-45-KD 71290 Request Quote 25-31 Days 42
Specify Knock-Down Stainless Steel 52" 240" 120" 3 Blowers ISO 5 6010-46-KD 71291 Request Quote 25-31 Days 43
Specify Knock-Down Stainless Steel 58" 96" 120" 1 Blower ISO 5 6010-47-KD 71292 Request Quote 25-31 Days 44
Specify Knock-Down Stainless Steel 58" 120" 120" 1 Blower ISO 5 6010-48-KD 71293 Request Quote 25-31 Days 45
Specify Knock-Down Stainless Steel 58" 144" 120" 3 Blowers ISO 5 6010-49-KD 71294 Request Quote 25-31 Days 46
Specify Knock-Down Stainless Steel 58" 180" 120" 3 Blowers ISO 5 6010-50-KD 71295 Request Quote 25-31 Days 47
Specify Knock-Down Stainless Steel 58" 240" 120" 3 Blowers ISO 5 6010-51-KD 71296 Request Quote 25-31 Days 48
Specify Knock-Down Powder-Coated Steel 52" 240" 120" 3 Blowers ISO 7 6010-56-KD 71301 Request Quote 25-31 Days 49
Voltage
Type
Material
Width
Depth
Height
Number of Blowers
ISO Class
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • •  Available ISO Ratings: ISO 6, ISO 7, ISO 8

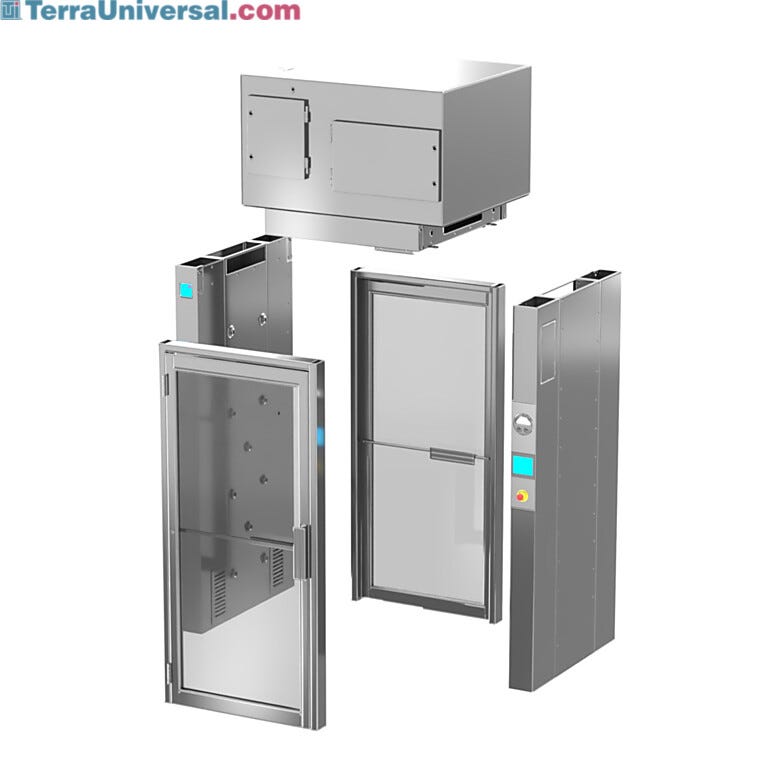

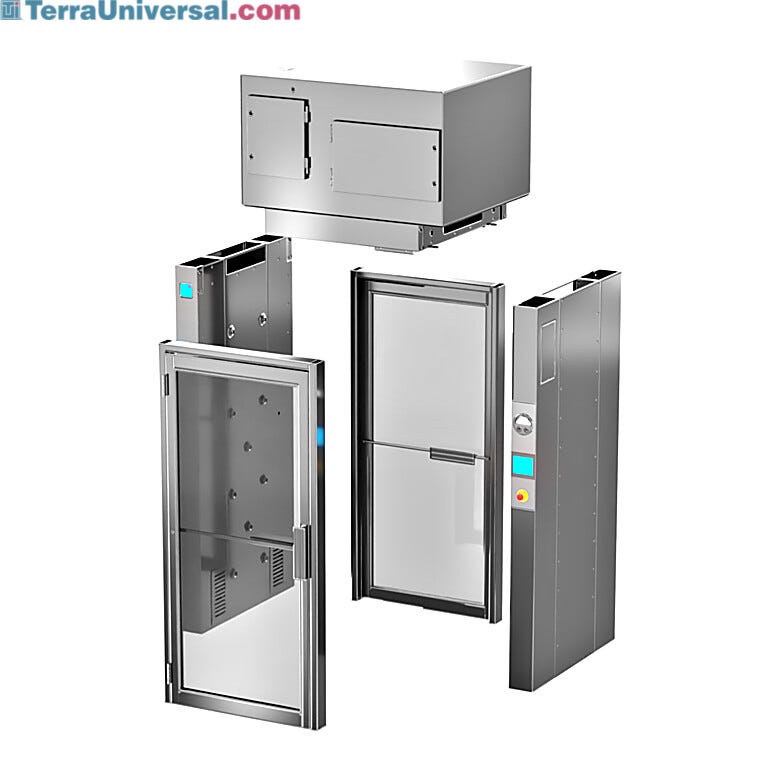

  • Designed for installation in facilities with limited access like small doorways or narrow hallways

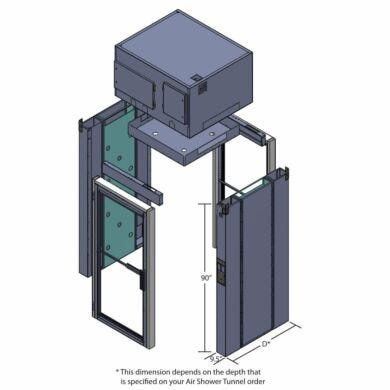

  • Air shower enclosures are custom designed to be broken down into more manageable components
  • Each unit is preassembled at the factory and tested before shipping
  • HEPA-filtered air (rated 99.99% efficient at 0.3 microns) washes over personnel to dislodge loose particles that accumulate on garments
  • Electromagnetic interlock system prevents the doors from opening before the air shower cycle is completed, protecting the cleanroom from cross-contamination
  • Door locks automatically release in the event of a power outage or if one of the Emergency Exit buttons are depressed
  • Shower time and door interlock duration can be programmed using the touchscreen control panel
  • Air nozzles can be adjusted to redirect streams of air
  • Energy-efficient LED lighting includes motion-activation

Available ISO Ratings: ISO 6, ISO 7, ISO 8

ISO Class: ISO 6

Unit of Measure: of 1

Air Showers & Tunnels

  • Air Showers
  • Pharmaceutical airlocks Pharmaceutical Air Lock Designs
Pharmaceutical airlocks
Features & Benefits

Features and Benefits

Learn More: Customized Air Showers

Custom Air Shower Systems Available

Terra Universal offers custom fabrication to provide the optimal solution for your application.

Examples of requested modifications include:

  • Custom floor plans, including 90º turns and U-shaped chambers (see examples below)
  • 3-door configurations for connecting multiple rooms
  • Custom flooring: stainless steel floor, no-floor, or raised aluminum floor grates
  • Safety glass substituted for the SD-PVC panels on the doors
  • Explosion-proof designs for safe operation near explosive or flammable materials
  • Static ionization within the air shower enclosure
  • Bumpers mounted on the interior walls to protect nozzles from carts

Air Shower Floor Plan Style Diagram

Products Compliant With Your ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.

Motion Sensor

Air shower cycles are initiated by a motion sensor located on the ceiling of the chamber. If the LED lighting is set to Smart Lighting mode, the motion sensor will also turn on the lights when personnel enter the air shower.

Recirculation Vents

The closed-loop, recirculating design uses floor-level vents and plenums built into the walls to pull the contaminated air back through the HEPA filter, which removes 99.99% of particles as small as 0.3 microns.

LED Lighting

Low-profile LED lighting offers excellent visibility and power savings. Lights can either be manually controlled or set to automatic on/off via the touchscreen control panel.

Electromagnetic Interlock Door

Electromagnetic interlocking doors prevent personnel from accidentally opening both air shower doors at the same time, thereby preventing cross-contamination of the cleanroom and the external environment.

Emergency Exit Button

The emergency bypass button immediately shut down the air shower and release the doors when depressed; the doors also release when a power outage occurs to ensure operator safety.

Adjustable Air Shower Nozzles

Adjustable air nozzles on the walls and ceilings provide multi-directional flow of high-velocity, HEPA-filtered air to dislodge and remove particles from surfaces of personnel and parts before they enter the cleanroom.

Photohelic Gauge

The Photohelic gauge measures the backpressure generated on the dirty-side of the HEPA filter, providing an indication of filter saturation. With proper setup, the control panel will display an alert when the HEPA filter needs to be replaced.

Touchscreen Control Panel

The touchscreen panel controls cycle durations and entrance/exit delay times. Users can adjust these settings, as well as choose the operating mode for the LED lighting: always on; always off; or motion-detecting mode with shutoff-delay.
