Select Product

Material

Width

Depth

Height

Number of Blowers

Terra Part #PriceShips in
Stainless Steel79.25"44"90"1 Blower1 6010-00C-LP $25,96625-31 Days2
Stainless Steel79.25"80"90"2 Blowers2 6010-02C-LP $30,88225-31 Days3
Stainless Steel79.25"92"90"2 Blowers2 6010-03C-LP $47,56625-31 Days4
Stainless Steel79.25"104"90"2 Blowers3 6010-04C-LP $34,22725-31 Days5
Stainless Steel79.25"56"90"1 Blower1 6010-01C-LP $27,72925-31 Days6
Stainless Steel85.25"44"90"1 Blower1 6010-05C-LP $27,72925-31 Days7
Stainless Steel85.25"80"90"2 Blowers2 6010-07C-LP $32,16525-31 Days8
Stainless Steel85.25"92"90"2 Blowers2 6010-08C-LP $33,13325-31 Days9
Stainless Steel85.25"104"90"2 Blowers3 6010-09C-LP $35,05925-31 Days10
Stainless Steel85.25"56"90"1 Blower1 6010-06C-LP $28,93225-31 Days11
Powder-Coated Steel79.25"44"90"1 Blower1 6010-14C-LP $19,80825-31 Days12
Powder-Coated Steel79.25"80"90"2 Blowers2 6010-16C-LP $23,60925-31 Days13
Powder-Coated Steel79.25"92"90"2 Blowers2 6010-17C-LP $24,58325-31 Days14
Powder-Coated Steel79.25"104"90"2 Blowers3 6010-18C-LP $26,14525-31 Days15
Powder-Coated Steel79.25"56"90"1 Blower1 6010-15C-LP $21,15125-31 Days16
Powder-Coated Steel85.25"44"90"1 Blower1 6010-19C-LP $21,15025-31 Days17
Powder-Coated Steel85.25"80"90"2 Blowers2 6010-21C-LP $24,58325-31 Days18
Powder-Coated Steel85.25"92"90"2 Blowers2 6010-22C-LP $25,31925-31 Days19
Powder-Coated Steel85.25"104"90"2 Blowers3 6010-23C-LP $26,78125-31 Days20
Powder-Coated Steel85.25"56"90"1 Blower1 6010-20C-LP $22,12425-31 Days21
Material
Width
Depth
Height
Number of Blowers
Approx. Occupancy
Item ordered before. Click on bagde to see the order.
Demo Available
Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Select product to see details

Product Details

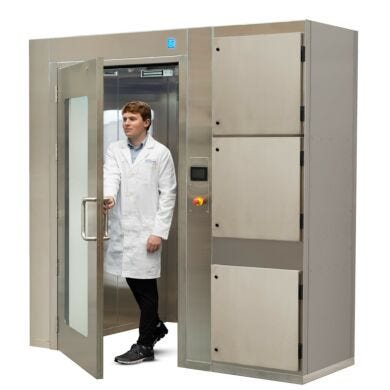

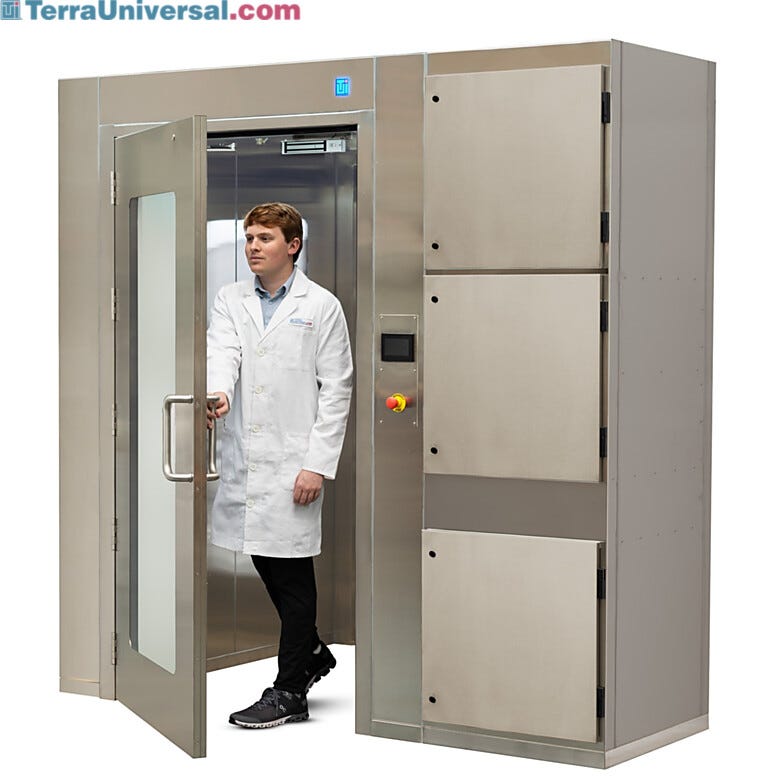

• For installation in cleanrooms or hallways with ceilings as low as 8'

• Blowers and HEPA filters are mounted inside the adjacent cabinet

• Air flows at high speed through the interior nozzles and circulates back through the HEPA filter via return vents

• Jets of HEPA-filtered air dislodge surface-deposited particles and debris from personnel garments and equipment

• Electronic interlock system prevents doors from being opened during the air shower cycle

• Emergency Exit buttons immediately deactivate the interlock system at any time

• Programmable cycle settings control duration of air shower and door-lock delay

• Adjustable nozzles can be directed at critical areas in the chamber

• Motion-activated interior lighting uses LEDs for longevity and energy efficiency

Low Profile Air Showers

Standard Features

  • A Pressure Gauge
    Photohelic Pressure Gauge and touch-screen Control Panel
  • B Emergency Stop Buttons
    Emergency Stop Buttons (2)
  • C Air Nozzles
    Hand-adjustable Air Nozzles
  • D LED Lights
    LED Lights
  • E Status Indicator
    Status Indicator
  • F Electrical Access Panel
    Electrical Access Panel
  • G Fan/Filter Housing
    Fan/Filter Housing
  • H Swing Doors
    Swing Doors (2)
  • I 16-gauge Powder-coated Steel
    Material: 16-gauge Powder-coated Steel

Not Shown: Ionizing Bar

Air Showers & Tunnels

  • Air Showers

Features & Benefits

Features and Benefits

Custom Configurations

Custom Air Shower Systems Available

Terra Universal offers custom fabrication to provide the optimal solution for your application.

Examples of requested modifications include:

  • Custom floor plans, including 90º turns and U-shaped chambers (see examples below)
  • 3-door configurations for connecting multiple rooms
  • Custom flooring: stainless steel floor, no-floor, or raised aluminum floor grates
  • Safety glass substituted for the SD-PVC panels on the doors
  • Explosion-proof designs for safe operation near explosive or flammable materials
  • Static ionization within the air shower enclosure
  • Bumpers mounted on the interior walls to protect nozzles from carts

Air Shower Floor Plan Style Diagram

Motion Sensor

Air shower cycles are initiated by a motion sensor located on the ceiling of the chamber. If the LED lighting is set to Smart Lighting mode, the motion sensor will also turn on the lights when personnel enter the air shower.

Recirculation Vents

The closed-loop, recirculating design uses floor-level vents and plenums built into the walls to pull the contaminated air back through the HEPA filter, which removes 99.99% of particles as small as 0.3 microns.

LED Lighting

Low-profile LED lighting offers excellent visibility and power savings. Lights can either be manually controlled or set to automatic on/off via the touchscreen control panel.

Electromagnetic Interlock Door

Electromagnetic interlocking doors prevent personnel from accidentally opening both air shower doors at the same time, thereby preventing cross-contamination of the cleanroom and the external environment.

Emergency Exit Button

The emergency bypass button immediately shut down the air shower and release the doors when depressed; the doors also release when a power outage occurs to ensure operator safety.

Adjustable Air Shower Nozzles

Adjustable air nozzles on the walls and ceilings provide multi-directional flow of high-velocity, HEPA-filtered air to dislodge and remove particles from surfaces of personnel and parts before they enter the cleanroom.

Touchscreen Control Panel

The touchscreen panel controls cycle durations and entrance/exit delay times. Users can adjust these settings, as well as choose the operating mode for the LED lighting: always on; always off; or motion-detecting mode with shutoff-delay.

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Versatile Mounting Locations
    Cleanroom air curtains are useful over any of type and size of opening to control temperature and/or contamination
  • High-Velocity Cleanroom Air Curtain
    Cleanroom air curtains provide a blade-shaped shower of ULPA-filtered air to dislodge particles from personnel entering a cleanroom
