Roll-Up Door Pass Through Chambers,Roll-Up Door Pass Through Chambers,Roll-Up Door Pass Through Chambers,Roll-Up Door Pass Through Chambers,Roll-Up Door Pass Through Chambers,Roll-Up Door Pass Through Chambers,Roll-Up Door Pass Through Chambers,Roll-Up Door Pass Through Chambers,Roll-Up Door Pass Through Chambers,Roll-Up Door Pass Through Chambers
Product Group:

Roll-Up Door Pass-Through Chambers

• Safety pressure sensors detect obstructions

• PLC touch panel and extra door clearance

• Automatic electronic interlock

• Touch screen control options

Stocked
Manufactured By: Terra Universal
Warranty: 1 year parts, 90 days labor
Print
Need Help?

(714) 578-6100

Mon - Fri, 5:30 AM - 5:30 PM, PST

Chat

Want a quote quickly ?

Submit a QuickQuote request

Select Product

Opening Height

Sort Order:
Opening Width

Sort Order:
Door Material

Sort Order:
Speed

Sort Order:
Air Shower

Sort Order:
Voltage

Sort Order:

 Terra Part #PriceShips in
46" 29" Aluminum Slats 4" per sec No 220 V 6705-12C-220$14,73420-30 Days
46" 29" Aluminum Slats 4" per sec No 120 V 6705-12C$14,73420-30 Days
59" 71" Aluminum Slats 4" per sec No 220 V 6705-13C-220$25,19620-30 Days
59" 71" Aluminum Slats 4" per sec No 120 V 6705-13C$25,19620-30 Days
69" 52" Aluminum Slats 4" per sec No 220 V 6705-10C-220$22,23520-30 Days
69" 52" Aluminum Slats 4" per sec No 120 V 6705-10C$22,23520-30 Days
44" 29" Aluminum Slats 4" per sec Yes 220 V 6705-12C-AS-220$17,20520-30 Days
44" 29" Aluminum Slats 4" per sec Yes 120 V 6705-12C-AS$17,20520-30 Days
84" 63" Aluminum Slats 4" per sec No 220 V 6705-30C-220$29,20220-30 Days
84" 63" Aluminum Slats 4" per sec No 120 V 6705-30C$29,20220-30 Days
84" 72" Aluminum Slats 4" per sec No 220 V 6705-31C-220$33,05420-30 Days
84" 72" Aluminum Slats 4" per sec No 120 V 6705-31C$33,05420-30 Days
62" 68" Aluminum Slats 4" per sec No 120 V 6705-13$19,2301-3 Days
Opening Height
Opening Width
Door Material
Speed
Air Shower
Voltage
ORDERED
Item ordered before. Click on bagde to see the order.
Demo Available
Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Add to Compare
See Product Details
Back to product group
Select product to see details
Show more
Product Details
Product Details
Features & Benefits
Available Accessories
Products similar to this one
Manuals & Resources

Product Details

Designed in the USA

• Segmented aluminum roll-up door design requires no door clearance

• Optimizes valuable cleanroom floor space

• Touch-activated control panel offers a smooth, cleanable surface as well as emergency stop and lock-out capabilities

• Bi-directional motor and disc brake ensure smooth, accurate door motion and full braking power in the event of a power failure

• Electronic key-switch door interlock prevents cross contamination

• Pressure-sensitive safety circuits on each door automatically stop door motion and return door to full open position if an object hits the door bottom

• For equipment transfer only (not for personnel entry/exit)

Show more
Show more

Roll-Up Door Pass-Through Chambers

Standard Features

  • A Touch panel
    Touch panel controls feature an emergency stop and pass-through lock-out functionality
  • B Viewing window
    Side viewing window (static dissipative PVC)
  • C Safety circuit
    Safety circuit halts door motion if path is obstructed

Not Shown: Iris reader - Iris reader or security card system available for operational security

Not Shown: ULPA-filtered - ULPA-filtered air shower dislodges particles

Roll-Up Door Pass Through Chambers

  • Video Overview of Cleanroom Roll-Up Door Pass-Through Chambers Roll-Up Door Pass-Through Chamber
  • Roll-Up Door Pass-Through Touch Panel Roll-Up Passthrough Touch Panel
  • Cleanroom Roll-Up Door Pass-Through Chamber with Cart Roll-Up Door Pass-Through Chambers
  • Roll-Up Door Pass-Throughs Roll-Up Door Pass-Through Chamber
  • Pass-Through, Roll-Up, SS, 63.75''W x 50.125''D x 104.875''H, Floor Mount w/Brackets Roll-Up Door Pass-Through, 64''W x 50''D x 105''H
Video Overview of Cleanroom Roll-Up Door Pass-Through Chambers
Video overview of Terra's Roll-Up Door Pass-Through Chambers | 6705-10C displayed Roll-Up Door Pass-Through Chamber Video overview of roll-up door pass-through chambers, which are ideal for moving carts and other large equipment into the cleanroom without contaminating the controlled space.
Roll-Up Door Pass-Through Touch Panel
Touch-activated control panel offers a smooth, cleanable surface on the roll-up door pass through chambers | 6705-12C displayed Roll-Up Passthrough Touch Panel Roll-up door pass-through chambers feature easy-clean touch-activated controls and a safety switch that reverses the interlocked door if it senses an obstruction.

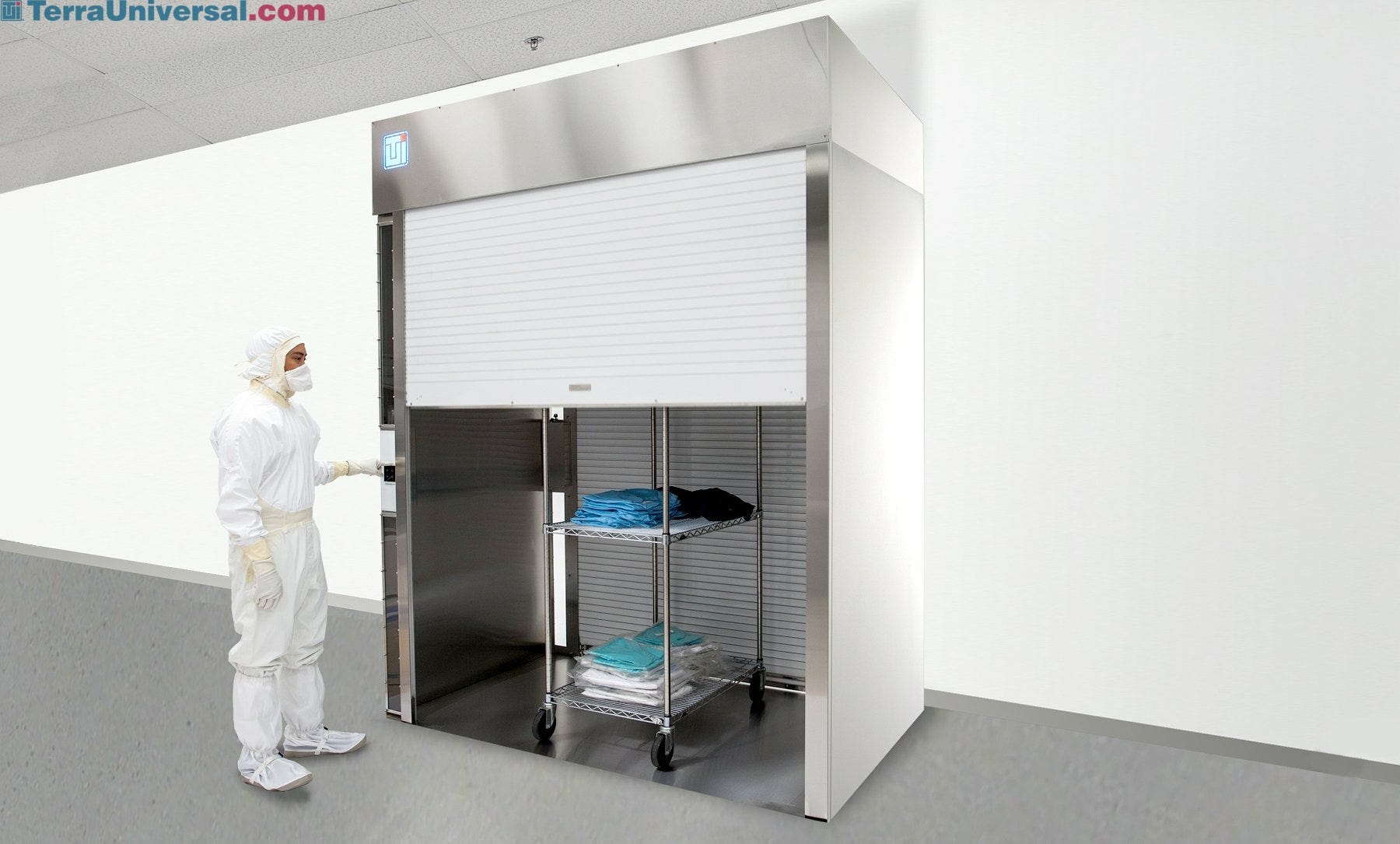

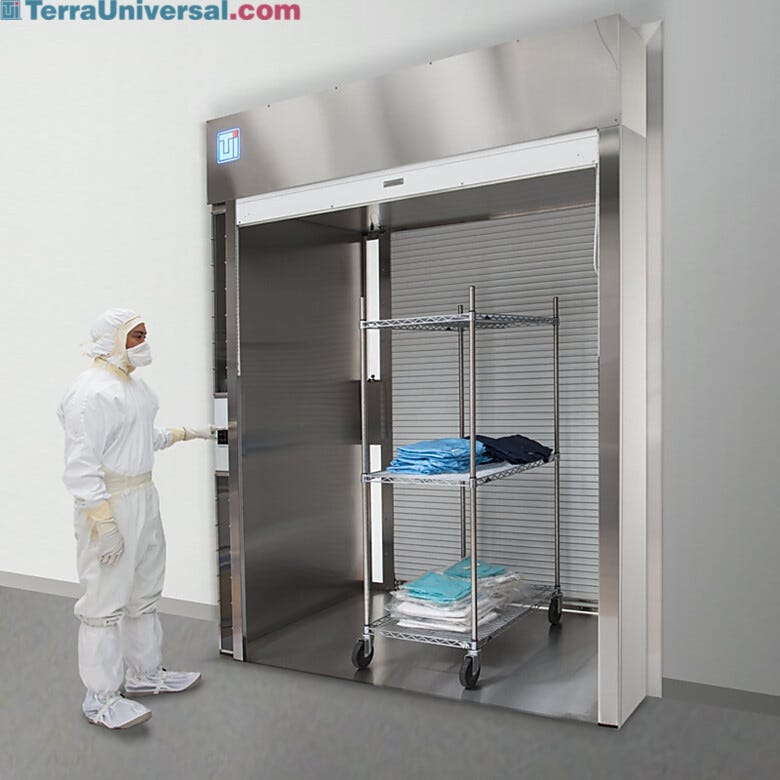

Cleanroom Roll-Up Door Pass-Through Chamber with Cart
Cleanroom Roll-Up Door Pass-Through Chambers feature segmented aluminum doors and electronic interlocks | 6705-31C displayed Roll-Up Door Pass-Through Chambers Cleanroom Roll-Up Door Pass-Through Chambers feature segmented aluminum doors and an electronic door interlock to minimize cross-contamination.
Roll-Up Door Pass-Throughs
These pass-through chambers allow transfer of large items without door clearance, preserving valuable cleanroom space | 6705-31C displayed Roll-Up Door Pass-Through Chamber These pass-through chambers use high-precision inerlocked aluminum doors to allow transfer of large items without door clearance, preserving valuable cleanroom space and minimizing cross-contamination.
Pass-Through, Roll-Up, SS, 63.75''W x 50.125''D x 104.875''H, Floor Mount w/Brackets
Saves valuable cleanroom floor space and features an electronic interlock | 6705-30C displayed Roll-Up Door Pass-Through, 64''W x 50''D x 105''H Roll-up door pass-through chambers use high-precision inerlocked aluminum doors to allow transfer of large items without door clearance, preserving valuable cleanroom space and minimizing cross-contamination.

Features & Benefits

Features and Benefits

Roll-Up Door Pass-Throughs
Print Copy Copied

Roll-Up Door Pass-Throughs

Optional ULPA-Filtered Air Shower

The optional air shower includes a blower isolated inside the control unit above the access doors. When a door is closed, the unit activates the blower, which forces intake air through an ULPA filter into dual vertical stainless steel exhaust manifolds inside the pass-through chamber. Openings in these manifolds provide a cleansing wash of clean air to remove loose particles from items before they enter the cleanroom. Air exits the Pass-Through through exhaust vents on the "dirty" side. A time delay maintains air shower operation for 60 seconds after the door is closed.

Due to the intermittent operation of this unit the ULPA filter is rated for over five years of operation under normal conditions. As the filter nears the end of its service life, the increasing backpressure will cause louder fan operation. To replace the filter, simply remove the screws that hold the "dirty" side front panel in place; the cylindrical filter is easily accessible inside.

Roll-Up Door Pass-Through Door Safety Sensor

Safety Pressure Sensor

The pressure-sensitive safety mechanism along the bottom edge of each roll-up door sends a signal to immediately reverse door direction when it detects an obstruction.
Automatic Electronic Interlock on Roll-up Door Pass-Through

Automatic Electronic Interlock

The electronic interlock allows only one door at at time to open, preventing cleanroom cross-contamination. Side windows allow personnel to view opposing door status and chamber contents.
Roll-Up Door Pass-Through Control Panel

Touch Panel

The flat touch interface is easy to clean and operated by gloved personnel and impervious to moisture; includes emergency stop.
Door Position Sensors on Roll-Up Door Pass-Through

Door Position Sensors

Laser sensors mounted on the ceiling of the chamber monitor the position of the doors for proper interlock sequencing.
Pass-Through Interlock Override Switch

Interlock Override Switch

Key switches allow the door interlock to be disabled for chamber cleaning and maintenance.
Roll-Up Pass-Through Door Design

Eliminates Swing Clearance

Roll-up door design requires no swing clearance, conserving valuable cleanroom floorspace. Many sizes accommodate all types of equipment.

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • High Velocity Cleanroom Air Curtain
    Versatile Mounting Locations
    Cleanroom air curtains are useful over any of type and size of opening to control temperature and/or contamination
