Select Product
Type

Opening Width

Terra Part # Price Ships in
Swing Door Operator 27" ISO 8 2635-51 62089 $2,306 5-7 Days 2
In stock
Swing Door Operator 28" to 44" ISO 8 2635-52 62096 $2,874 1-3 Days 3
Quick Ship+ Available In stock
Swing Door Operator 48" ISO 8 2635-54 62227 $2,606 5-7 Days 4
Only 3 left in stock
Swing Door Operator 72" ISO 8 2635-53 62097 $6,448 5-7 Days 5
In stock soon
Swing Door Operator 96" ISO 8 2635-56 62228 $5,212 5-7 Days 6
Only 3 left in stock
Type
Opening Width
Certified ISO Grade Design
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • Available ISO Ratings: ISO 8
  • Low-energy, swing door operators for installation on cleanroom doors
  • Compact aluminum housing for electromechanical drive
  • Whisper-quiet operation
  • Includes motion sensor that activates with the wave of a hand
  • Single- and double-door options available
  • Can be opened manually; ADA-compliant
  • Blow-open feature for smoke ventilation (per NFPA 92B)
  • Twelve programmable options and optional integration with control systems
  • Maximum Door Weight: 220 lbs.
  • Maximum Opening Angle: 110° (180° if manually opened)
  • Door operator only (doors and frames sold separately)
  • Intended for use in positive or negative pressure cleanrooms where air movement is acceptable. Doors are not hermetically sealed and not intended for spaces mitigating operator exposure to biohazards, chemicals, or nauseating odors.

Door Accessories

  • Short video of the automatic door Cleanroom Automatic Door
Short video of the automatic door
Features & Benefits

Features and Benefits

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Gradeâ„¢ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.

Automatic Door Operator

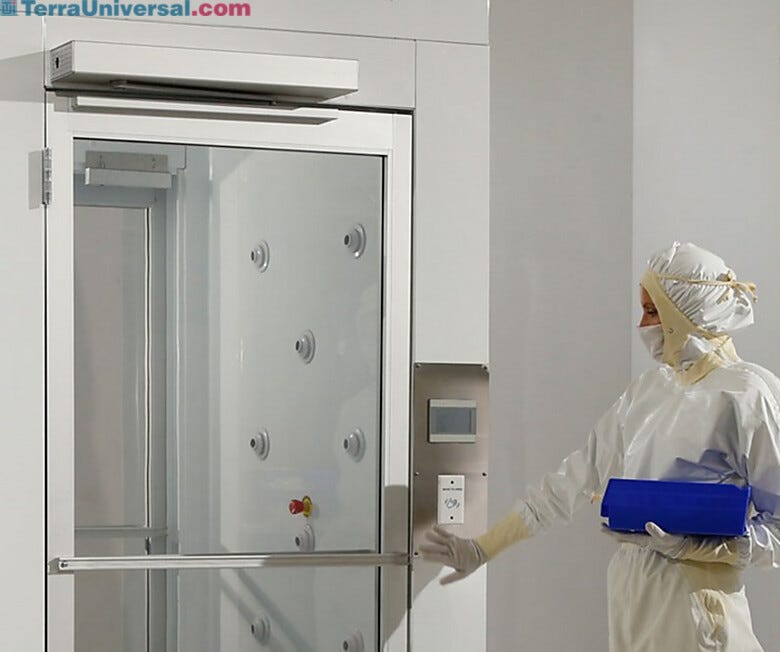

Automatic door opener is triggered by motion sensor; ideal for aseptic cleanrooms that require hands-free door operation (available with several doors styles; shown on Air Shower entrance).

Door Swing Direction

Door swing direction is easily determined while standing on the SECURE SIDE (key side) or OUTSIDE of the door.

Long-Term Customers

Terra is committed to building long-term relationships with satisfied clients; 94% of orders each year come from repeat customers

Electromagnetic Door Interlock Diagram

Electromagnetic door interlock systems reduce cross-contamination by ensuring specific doors never open simultaneously. The central control module connects to electronic maglocks, allowing up to 6 interlocking doorways. Maglocks engage with 600lb of holding force and can be easily disabled in case of an emergency.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements
