Terra Part # 6710-53A
Usually ships in 25-30 business days

Want it faster ? Read about FasTrak

Terra Part # 6710-53A
Usually ships in 25-30 business days

Want it faster ? Read about FasTrak

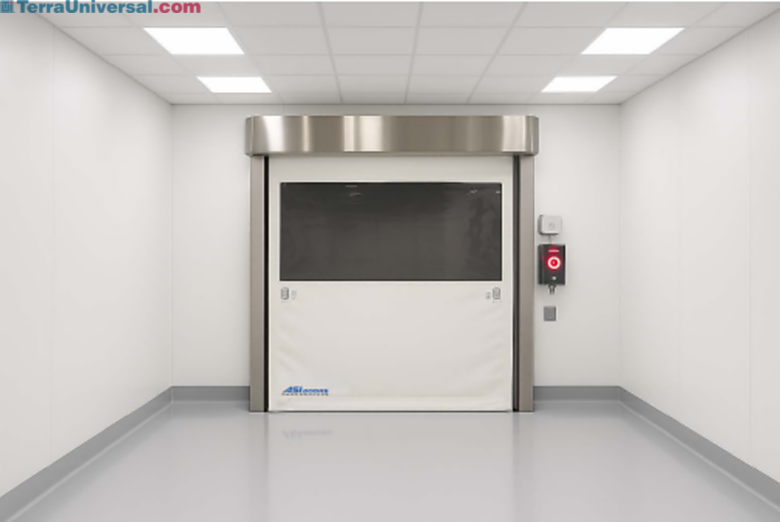

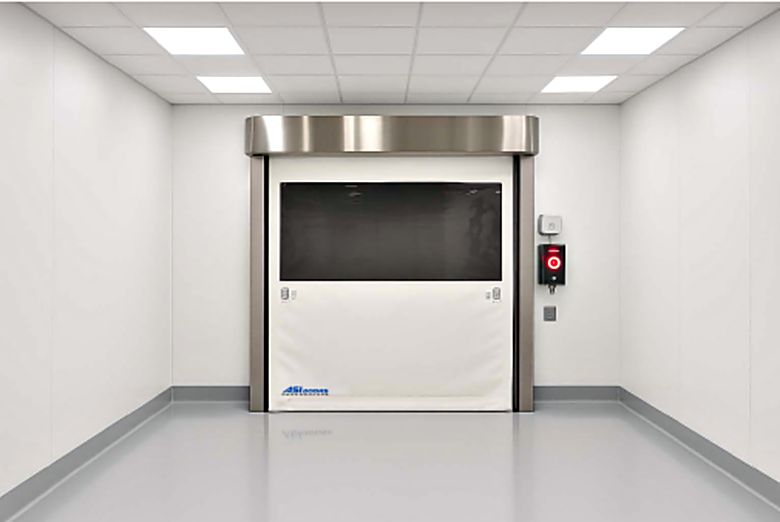

Product Details
  • •  Available ISO Ratings: ISO 8
  • Size: Standard door size is 6' x 8' (1829 mm x 2438 mm)
  • Material: .030 ( 0.762 mm) thick multi-filament PVC coated curtain material, FDA compliant, 28" ( 711 mm) high, full width, clear plastic panel, 304SS side frames
  • Motor: 1hp electric motor
  • 316 SS optional
  • Available in white or blue standard, other colors available upon request
  • Side frames are designed for maximum durability and easy wipe down/ wash down
  • Low profile - only requires 3.125" (79 mm) of side room clearance and 17.5" (445 mm) of head clearance
  • Curtain will reset on every upward cycle, even if displaced from its track
  • Open and close up to 50" (1270 mm) a second
  • Soft bottom edge

Electropolished: Optional

Mounting Position: Wall

Wall Thickness: 5.125"

Window Material: N/A

Width: 72"

Height: 96"

Frame Material: 304 Stainless Steel

Material: Vinyl Fabric

Door Frame: 304 Stainless Steel

Door Panel: Vinyl Fabric

Opening Action: Vertical

Type: Roll-Up Door

Unit of Measure: EA

Electrical Specifications: 120 V, 60 Hz

Weight, Product: 20 lb

Weight, Shipping: 30 lb

Package Type: Crate

Roll-Up Doors and Windows

  • High-Speed Roll-Up Door Pass-Through High-Speed Roll-Up Door Pass-Through
  • High-Speed Cleanroom Door Motion High-Speed Passthrough Roll-Up Door Motion

Features and Benefits

High-Speed Doors

Interlocked polyvinyl-coated fabric doors open or close in under four seconds, reducing chamber exposure to airborne contaminants and speeding up transfer.

High-Speed Roll-Up Door Obstruction Sensor

If either of two photoelectric sensors mounted along the inside edge of each chamber entrance detects an obstruction, the pass-through door reverses and the TUI logo flashes to prevent system damage.

Products Compliant With Your ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Versatile Mounting Locations

    Cleanroom air curtains are useful over any of type and size of opening to control temperature and/or contamination
