Product Details
- Available ISO Ratings: ISO 6, ISO 7, ISO 8
- Explosion-proof ceiling components, control panel, and softwall strips are ordered separately
- Quick Disconnect couplings speed up conduit installation
- Potted fittings in the conduit array isolate each of the components from the rest of the system

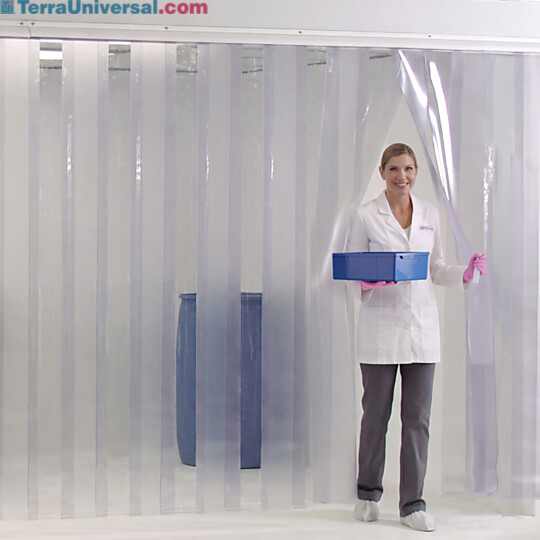

- Static-dissipative PVC strips protect against the risk of electrostatic discharge
- Powder-coated steel support frame can be mounted on casters for portability
- Specified height is from the floor to filter face
- FFUs add 13” (330mm) to specified height for overhead clearance
- Allow an additional 11” above FFUs for proper air flow
- Standard height: 7’ (custom heights available)
- Walls over 8’ long require an additional vertical support member
- Proper installation of explosion proof equipment is critical to maintaining the explosion-proof protection aspects of the system. Therefore all wiring for explosion proof systems should be done in the field per local code by a licensed electrician.
- Terra assumes no responsibility for meeting local building regulations, including fire and seismic codes
- Check with your local planning department to see what regulations apply to your installation
Specs
• Frame Material: Powder-Coated Steel
• Overall Dimensions: Custom
• Panel Material: Anti-Static Vinyl Soft Panels
• Unit of Measure: EA
• Marks & Listings: UL, ULC
• Package Type: Crate
