• Type: Curtain Panel
• Fire-Rating: None
• Curtain Material: Anti-Static PVC
• Height: 8'
• Width: 48"
• Unit of Measure: FT
Want it faster ? Read about FasTrak
High-Speed Roll-Up Cleanroom Doors Cleanroom Fire-Rated Double Doors Cleanroom Roll-Up Aluminum Door Cleanroom Roll-Up Aluminum Door High-Speed Passthrough Roll-Up Door Motion
UL-Listed fire-rated double-doors for walls in fire-rated facilities; pre-hung, with frame included. Come with cylindrical-lock preps for installation of desired handles; standard opening is away from cleanroom
Cleanroom Roll-Up Doors make it easy to transport carts and large equipment into and out of a facility (cleanroom-side shown; motor housing on opposite side).
Cleanroom Roll-Up Doors are space efficient and easy to operate, with touch panel controls that are easy to wipe down and sterilize.
The polyvinyl-coated fabric doors fully open or close in less than four seconds, reducing the time that the chamber is exposed to airborne contaminants; bi-directional motor provides smooth motion, accurate open/closed positioning and braking.

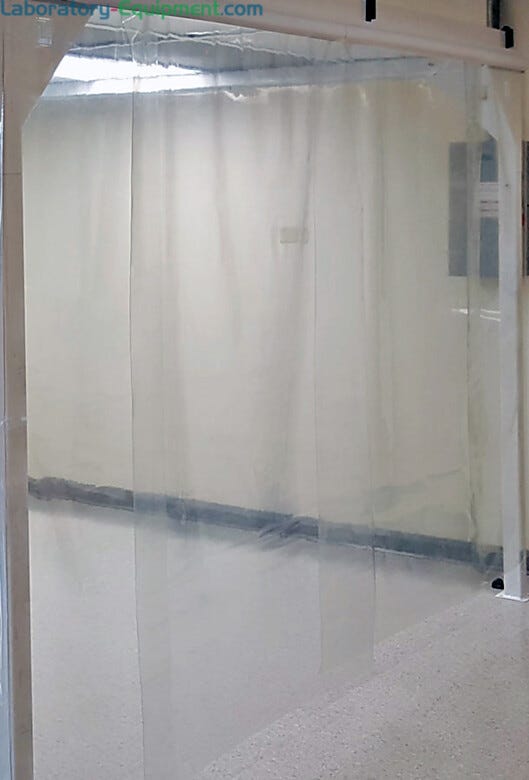

These softwall curtains and strip shields are ideal for use with Terra's free-standing Softwall Cleanrooms on the previous pages. They can also be installed directly onto existing walls or ceilings.
Either way, you receive the cleanest, most durable panels available. Standard 4-foot wide softwall curtains overlap by 6 inches and are fabricated of heavy-duty, blur-free 40 mil material—double the industry standard—ensuring enhanced tear resistance and eliminating the need for unsightly sewn sash weights. Polyvinyl chloride (PVC) strip shields, made of 60 mil vinyl, come standard in 8" widths, with 2" overlap, to form parting doors or reach-throughs. Both are made of static-dissipative vinyl. Polyurethane (Polysim®) shields are 40 mil x 12" W with 2" overlap.
Select the panel material to meet your application requirements. Static-Dissipative PVC includes built-in static inhibitors. Tests performed per ASTM D257 show surface resistivity of 1.8 x 107 ohms/sq. Static-dissipative characteristics may degrade over time and require curtain replacement after two years (depending on temperature, humidity, UV exposure, and other environment conditions). Testing is recommended in static-sensitive applications.
Terra also offers panels made from static-dissipative polyurethane that provides permanent, humidity-independent ESD protection from sensitive manufacturing conditions. This material contains no plasticizer, making it virtually non-outgassing.
Pricing is per linear foot. Use quantity to indicate the length in feet of the curtain or strip panel (ie quantity 8 = an eight-feet of material of the specified height).
Standard curtain panels are 4-feet wide, but wider panels are available. Similarly, strip shields and panels for ceiling heights over 10 feet can be ordered. Talk to a Terra Product Specialist.
Please note these construction details:
On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*
Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.
* Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
