1320C-10
Terra Part # 1320C-10
$57
Usually ships in 10-15 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 1320C-10
55522

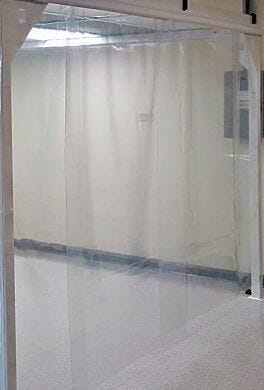

Curtain Panel; Anti-Static PVC, 40 mil, 10'
Qty Unit Price %
1 $57 -
2 $51 10%
Product Details
  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • Pricing is per linear foot. Use quantity to indicate the width in feet of the curtain (Example: Qty 4 is 4 linear feet of coverage)
  • Cut to fit nominal room height while allowing approx. 6" of gap above floor for air release
  • Panel Overlap: 2" (51mm)
  • Material: Heavy-duty, blur-free lightly-tinted transparent anti-static PVC vinyl 40 mils thick with permanent built-in static inhibitors that will not wear off
  • Surface resistivity: 10^10 ohms/square (static-dissipative)
  • Includes grip track to mount curtains and strips onto. Standard grip track ships in 4’ sections
  • Ideal soft-wall system for cleanrooms
  • Fluctuating temperature conditions may cause curtains to expand/shrink ±2" of specified height and ±0.75" of specified width.

• Type: Curtain Panel

• Fire-Rating: None

• Curtain Material: Anti-Static PVC

• Height: 10'

• Width: 48"

• Unit of Measure: FT

• Weight, Shipping: 10 Lbs

Buy Accessories
  1. Suspended T-Bar Mount for GripTrack; 1-1/2" Ceiling Grid Supports  |  6704-24A displayed
    $3
    Increase Down Increase Up
  2. Stainless steel T-bar mount fastens softwall curtain GripTrack to the ceiling grid  |  6704-09A displayed
    $3
    Increase Down Increase Up
  3. Allows suspension of a curtain from standard T-grid ceiling without the need for ceiling disassembly.  |  6704-23A displayed
    $3
    Increase Down Increase Up

Features and Benefits

Learn More: Cleanroom Softwall Curtains

Cleanroom Softwall Curtains and Strip Shields

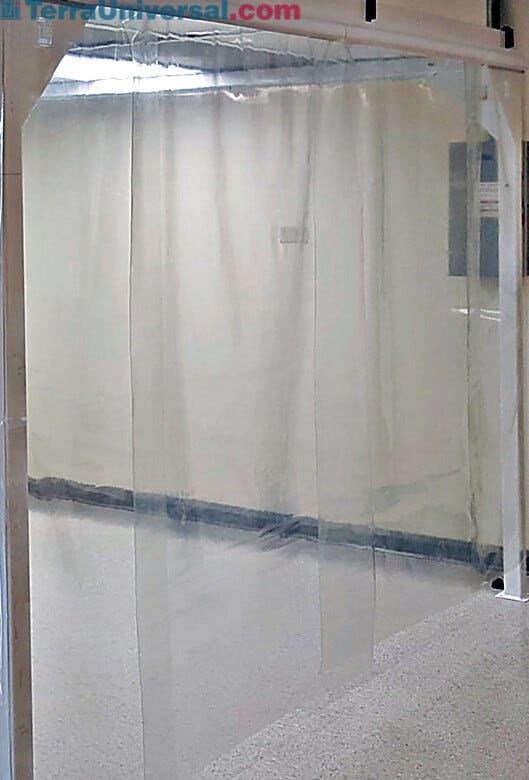

  • Suitable for all classes of cleanrooms and all levels of process isolation
  • Static-dissipative vinyl helps prevent surface charges and particle attraction
  • Standard mounting system is easy to clean, eliminates exterior crevices where contaminants can collect
  • Heavy-gauge materials hang straight, without the need for sewn hems or cumbersome sash weights
  • T-Grid Mounting System allows suspension of curtains or strip shields from existing cleanroom T-grids
  • Industry-leading fabrication and mounting technology gives you the cleanest, most durable curtains and strip panels available

These softwall curtains and strip shields are ideal for use with Terra's free-standing Softwall Cleanrooms on the previous pages. They can also be installed directly onto existing walls or ceilings.

Either way, you receive the cleanest, most durable panels available. Standard 4-foot wide softwall curtains overlap by 6 inches and are fabricated of heavy-duty, blur-free 40 mil material—double the industry standard—ensuring enhanced tear resistance and eliminating the need for unsightly sewn sash weights. Polyvinyl chloride (PVC) strip shields, made of 60 mil vinyl, come standard in 8" widths, with 2" overlap, to form parting doors or reach-throughs. Both are made of static-dissipative vinyl. Polyurethane (Polysim®) shields are 40 mil x 12" W with 2" overlap.

Select the panel material to meet your application requirements. Static-Dissipative PVC includes built-in static inhibitors. Tests performed per ASTM D257 show surface resistivity of 1.8 x 107 ohms/sq. Static-dissipative characteristics may degrade over time and require curtain replacement after two years (depending on temperature, humidity, UV exposure, and other environment conditions). Testing is recommended in static-sensitive applications.

Terra also offers panels made from static-dissipative polyurethane that provides permanent, humidity-independent ESD protection from sensitive manufacturing conditions. This material contains no plasticizer, making it virtually non-outgassing.

Ordering Guide

Pricing is per linear foot. Use quantity to indicate the length in feet of the curtain or strip panel (ie quantity 8 = an eight-feet of material of the specified height).

Standard curtain panels are 4-feet wide, but wider panels are available. Similarly, strip shields and panels for ceiling heights over 10 feet can be ordered. Talk to a Terra Product Specialist.

Please note these construction details:

  • Standard curtains come in 4-foot wide panels, which are mounted to create the run specified. PVC strip shields come in overlapping 8"-wide strips; polyurethane strip shields come in 12"-wide strips.
  • Corners are heat-creased and notched to ensure a snug fit against frame corners.
  • Adjacent curtain panels overlap by 6", which generally provides an adequate air barrier. Strip shields overlap by 2".

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Gradeâ„¢ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.

Easy Mount Flex-Track

Unique grip track design is easy to install and allows for quick attachment/detachment of curtain panels and strip shields. Eliminates cracks and crevices where dust & germs can collect.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.
