Select Product

Voltage

Design

Exterior Material

Capacity

Temperature Range

Interior Material

Manufacturer SKU

Terra Part #PriceShips in
120 V Free Standing Powder Coated Steel 24.7 cu. ft. Ambient to 70°C Stainless Steel 9020-0337 1410-13 70465 $24,01420-26 Days2
240 V Free Standing Powder Coated Steel 8.7 cu. ft. Ambient to 70°C Stainless Steel 9020-0336 1410-12 70464 $20,00920-26 Days3
Voltage
Design
Exterior Material
Capacity
Temperature Range
Interior Material
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

• KBWF Series Growth Chambers provide humidity and homogeneous light distribution with natural illumination via a patented lighting system

• Ideal for growing Arabidopsis, an extensively studied plant organism and other organisms dependent on well-defined light cycle and tightly controlled temperature

• Models meet the strict demands of scientific, pharmaceutical and industrial fields by providing an accurate simulation of biological, chemical and physical conditions

• Patented lighting system ensures homogenous light distribution

• Flexible positioning of illumination cassettes with three different, individually selectable light spectra

• APT.line™ preheating chamber technology with adjustable fan speed

• Includes illumination cassettes and stainless steel racks

• Industry use: Pharmaceutical, scientific, industrial and chemical

• Integrated weekly program in real-time, heated door and access port with silicone plug, 30 mm

• Humidity regulation with capacitive humidity sensor and vapor humidification

• Inner door (tightly sealed) made of tempered safely glass (ESG safety glass with special TIMELESS coating)

• Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm

• Intuitive touchscreen controller with time-segment and real-time programming with internal data recording

• LCD monitor and controller with interval programming

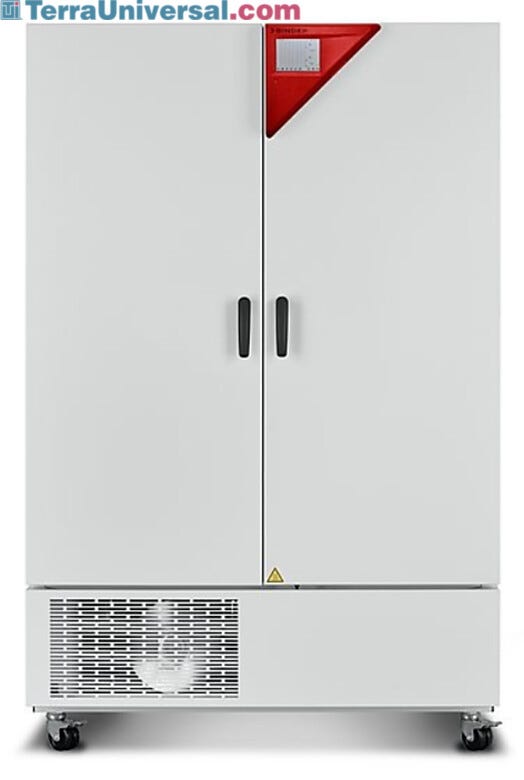

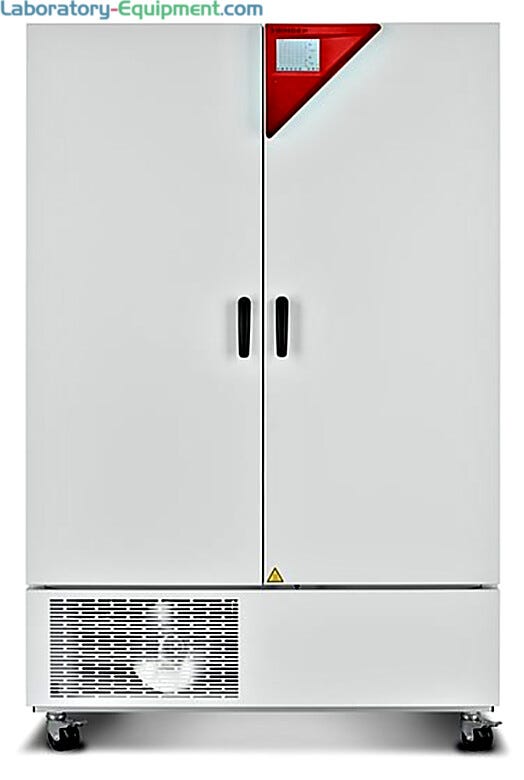

  • BINDER KBWF 240 Growth Chambers with Stainless Steel Inner Chamber BINDER KBWF 240 Growth Chambers with Stainless Steel Inner Chamber
  • KBWF Patented Lighting System KBWF Patented Lighting System
BINDER KBWF 240 Growth Chambers with Stainless Steel Inner Chamber
KBWF Patented Lighting System

Features & Benefits

Features and Benefits

KBWF Options and Specifications

KBWF Series Plant Growth Chambers Technical Specifications

BINDER Growth Chambers Options and Accessories
  • Arabidopsis illumination cassette
  • Calibration certificates
  • Class 3.3 independent temperature safety device
  • Data Logger Kit
  • Data Logger Software
  • Door lock
  • FLUORA® illumination
  • Interface converter, USB / RS422
  • Interior electrical sockets
  • Pt 100 temperature sensor
  • Stainless steel racks
  • Stainless steel shelf, perforated or reinforced
Model KBWF 240 KBWF 720
Electrical 200-240v, 50Hz 200-240v, 50Hz
Net weight of the unit (kg) 430 lbs. (195kg) 825 lbs. (374kg)
External Dimensions W" x D" x H" (mm) 36.4 x 31.5 x 57.7 in.
(925 x 800 x 1465 mm)
49.2 x 35 x 75.8 in.
(1250 x 890 x 1925 mm)
Internal Dimensions W" x D" x H" (mm) 25.6 x 19.1 x 30.9 in.
(650 x 485 x 785mm)
38.3 x 22.7 x 49.2 in.
(973 x 576 x 1250mm)
Internal Volume (L) 8.72 cu. ft. (247 L) 24.7 cu. ft. (700 L)
Unit doors 1 2
Number of stainless steel racks (std./max.) 2/7 3/12
Number of illumination cassettes (std./max.) 2/2 3/3
Temperature range without illumination cassettes [°C] 32-158 °F (0-70 °C) 32-158 °F (0-70 °C)
Temperature range with 100% illumination [°C] 50-140 °F (10-60 °C) 50-140 °F (10-60 °C)
Temperature variation without illumination cassettes [± K] 0.5 0.5
Temperature variation with 100% illumination [± K] 0.5 1
Temperature fluctuation without illumination cassettes [± K] 0.1 0.1
Temperature fluctuation with 100% illumination [± K] 0.2 0.1
Humidity range without illumination [% RH] 10-80 10-80
Humidity range with illumination cassettes, with illumination [% RH] 10-75 10-75
Illumination per cassette Daylight tubes [lx] 9000 13000
Illumination per cassette Fluora® growth lamps [lx] 7500 10500
Illumination per cassette Arabidopsis lamps [lx] 11000 14000
Computer Interface Ethernet Ethernet

Homogeneous Temperature Distribution

APT.line™ preheating chamber technology with dual-side air flow ensures long-term temperature uniformity.

KBWF Growth Chamber Humidity Control

Patented long-life humidification system and capacitive humidity sensor ensure on target humidity values.

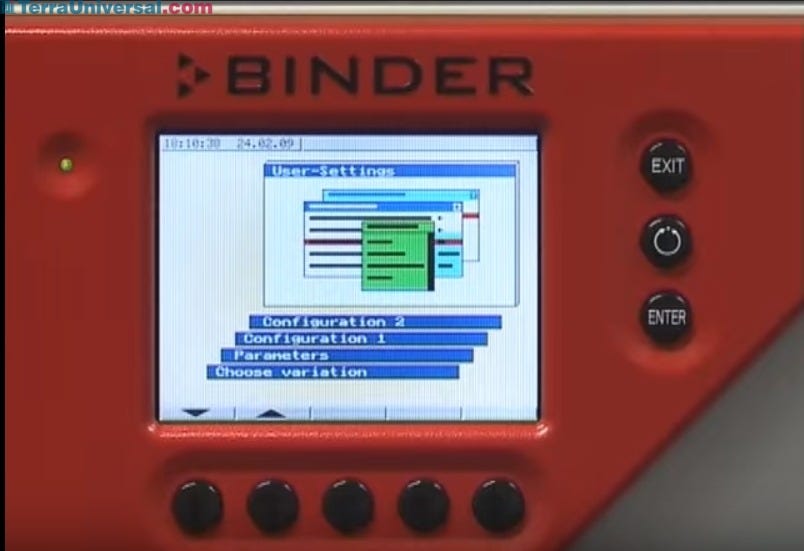

KBWF Growth Chamber Intuitive Touchscreen Controller

KBWF Growth Chambers feature state-of-the-art controller technology with time-segment, real-time programming and internal data recording.
