120 V Free Standing Powder Coated Steel 24.7 cu. ft. Ambient to 70°C Stainless Steel 9020-0340 1410-11 70463 $20,26020-20 Days2
120 V Free Standing Powder Coated Steel 14.1 cu. ft. Ambient to 70°C Stainless Steel 9020-0339 1410-10 70462 $14,50615-21 Days3
240 V Free Standing Powder Coated Steel 8.7 cu. ft. Ambient to 70°C Stainless Steel 9020-0338 1410-09 70461 $13,13215-21 Days4
Exterior Material
Temperature Range
Interior Material
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

• Available in 8.72 cu.ft. (247 L) and 24.7 cu.ft. capacities

• Temperature range with light: 10 °C to 60 °C

• Temperature range: 0 °C to 70 °C

• Relative humidity range from 10 to 80%

• Patented lighting system ensures homogenous light distribution

• Includes illumination cassettes and stainless steel racks

Features & Benefits

Features and Benefits

Options, Features and Specs

Light Spectra of KBW Series Growth Chambers with Light

KBW models include daylight lamp. Arabidopsis and FLUORA® illumination cassettes are sold separately.

KBW Series Growth Chambers Options and Accessories
  • Arabidopsis illumination cassette
  • Calibration certificates
  • Class 3.3 independent temperature safety device
  • Data Logger Kit
  • Data Logger Software
  • Door lock
  • FLUORA® illumination
  • Interface converter, USB / RS422
  • Interior electrical sockets
  • Pt 100 temperature sensor
  • Stainless steel racks
Additional Features
  • KBW climate chambers feature tempered safety glass (ESG) inner door (tight sealing) with TIMELESS coating
  • Integrated weekly program in real-time
  • Adjustable fan speed
  • Door heating
  • Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
  • Intuitive touchscreen controller with time-segment and real-time programming with internal data recording Access port with silicone plug, 30 mm left

These filters also remove aerosol-born pathogens—germs that literally hitch a ride on larger particles and liquid droplets that are captured in a HEPA or ULPA filter.

HEPA- or ULPA-based Fan/Filter Units (FFUs) thus can play an important role in infection prevention in surgical theaters, ICUs and other medical settings. Here is a list of common human pathogens that HEPA/ULPA filters capture and remove from circulation:

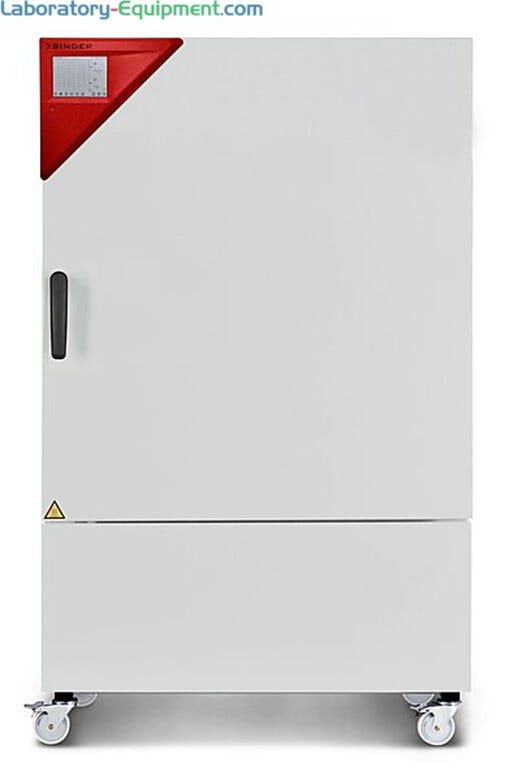

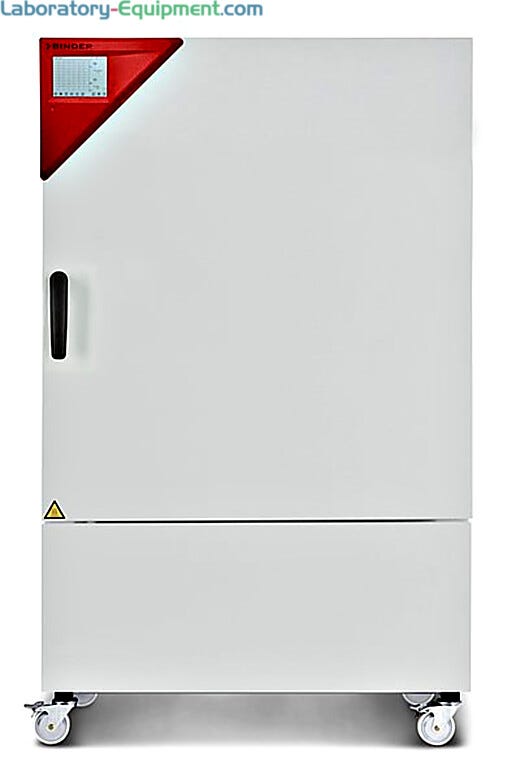

Model KBW 240 with 8.72 cu. ft. capacity includes 2 shelves KBW 400 with 14.13 cu. ft. capacity includes 3 shelves KBW 720 with 24.7 cu. ft. capacity includes 3 shelves
Electrical 200-240v, 50/60Hz 200-240v, 50/60Hz 200-240v, 50/60Hz
Net weight of the unit (kg) 430 lbs. (195kg) 556  lbs. (252kg) 831 lbs. (377kg)
External Dimensions
W" x D" x H" (mm)
36.4 x 31.5 x 57.7 in.
(925 x 800 x 1465 mm)
36.4 x 31.7 x 76.8 in.
(925 x 805 x 1950 mm)
49.2 x 35 x 75.8 in.
(1250 x 890 x 1925 mm)
Internal Dimensions
W" x D" x H" (mm)
25.6 x 19.1 x 30.9 in.
(650 x 485 x 785mm)
25.6 x 19.1 x 50 in.
(650 x 485 x 1270mm)
38.2 x 22.7 x 49.2 in.
(970 x 576 x 1250mm)
Internal Volume (L) 8.72 cu.ft. (247 L) 14.13 cu.ft. (400 L) 24.7 cu.ft. (698 L)
Unit doors 1 1 2
Number of shelves (std./max.) 2/7 3/12 3/12
Permitted load 220 lbs. (99.80 kg) 265 lbs. (120.202 kg) 331 lbs. (140.13 kg)
Load per rack 66 lbs. (29.94 kg) 66 lbs. (29.94 kg) 66 lbs. (44.91 kg)
Illumination cassettes (std./max.) 2/2 3/3 3/3
Temperature range without illumination cassettes [°C] 32-158 °F (0-70 °C) 32-158 °F (0-70 °C) 32-158 °F (0-70 °C)
Temperature range with 100% illumination [°C] 41-140 °F (5-60 °C) 41-140 °F (5-60 °C) 41-140 °F (5-60 °C)
Temperature variation without illumination cassettes [± K] 0.5 0.5 0.5
Temperature variation with 100% illumination [± K] 0.5 1.5 1
Temperature fluctuation without illumination cassettes [± K] 0.1 0.1 0.1
Temperature fluctuation with 100% illumination [± K] 0.2 0.2 0.1
Illumination per cassette Daylight tubes [lx] 9000 9000 13000
Illumination per cassette Fluora® growth lamps [lx] 7500 7500 10500
Illumination per cassette Arabidopsis lamps [lx] 11000 11000 14000
Computer Interface Ethernet Ethernet Ethernet

Homogeneous Temperature Distribution

APT.line™ preheating chamber technology with dual-side air flow ensures long-term temperature uniformity.
