Select Product

Configuration

Programmable

Tank Capacity

Frequency Output

Heated

Heat Output

Voltage

Manufacturer SKU

Terra Part #PriceShips in
Industrial No 10 gal 55 kHz Yes 1000 120 V 000-914-506 2623-00$5,0985-7 Days
Industrial No 10 gal 55 kHz Yes 1000 240 V 000-914-606 2623-00-220$5,2598-12 Days
Mini Yes 15 oz 55 kHz No Unrated 120 V 100-951-010 2622-00$1615-7 Days
Mini Yes 15 oz 55 kHz No Unrated 240 V 100-951-011 2622-00-220$1798-12 Days
Configuration
Programmable
Tank Capacity
Frequency Output
Heated
Heat Output
Voltage
Manufacturer SKU
Item ordered before. Click on bagde to see the order.
Demo Available
Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Select product to see details

Product Details

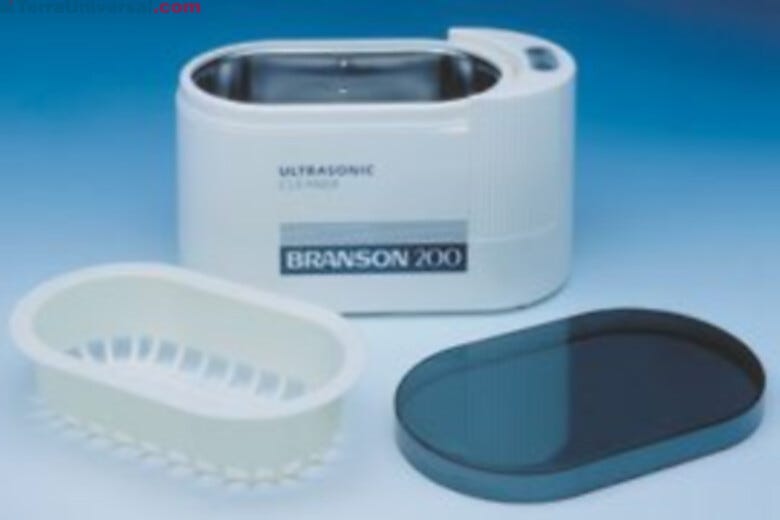

• Small, stylish cleaner is big on value

• Specially designed for medium and heavy-duty industrial applications

• Contains all solid-state circuitry

• Includes contemporary Noryl™ plastic base and smoked plastic cover

• Features a stainless steel tank in a compact housing

• Includes heater for maximum effectiveness

Features & Benefits

Features & Benefits

Ultrasonic Cleaning Accessories

Ultrasonic Cleaning Accessories

We offer a wide line of cleaning accessories to make your cleaning job easier and faster. Exactly which accessories you need will depend on the cleaning method you use.

For Direct Cleaning you typically need only a perforated insert tray. This method involves pouring the cleaning fluid directly into the tank and then lowering items either in a perforated tray or suspended by a wire. The chief advantage of this method is its simplicity. It does, however, present several disadvantages: all removed soil remains in the tank; only one solution can be used at a time; and highly acidic or caustic solutions should not be used at all.

Indirect Cleaning solves these problems and provides more flexibility and control over the cleaning cycle. In this method, the tank is filled with a liquid driving medium, such as water, plus a wetting agent (detergent) to improve circulation. Cleaning solutions are poured into one or more beakers or solid insert trays, where parts can then be placed. The beakers fit into a beaker positioning cover which suspends them in the tank. If a solid tray is being used, its handles should fit over the edges of the unit and suspend it in the tank.

This method ensures that removed soil stays in the beaker or tray; it can be easily examined, filtered, or discarded. Indirect cleaning also lets you use one or more solutions at the same time. In a large cleaner, which features inserts for three beakers, one beaker might contain a rinse solution and the other two beakers could contain two different types of cleaning solutions. Whichever method you employ, optimal cleaning occurs in the area of the tank between 1/2" from the top and 1/2" from the bottom. Therefore, parts should not be placed directly on the bottom.

Note: Be sure to maintain a fluid level between 1/2" and 1" from the top of the tank or the unit could be damaged.
