Select Product

Voltage

Configuration

Programmable

Tank Capacity

Frequency Output

Heated

Heat Output

Manufacturer SKU

Terra Part #PriceShips in
120 VGeneral CleaningYes1.5 gal40 kHzYesUnratedCPX-952-318R 2618-00A 55496 $8798-12 Days2
120 VGeneral CleaningYes1.5 gal40 kHzNoUnratedCPX-952-319R 2637-42 56098 $8618-12 Days3
120 VGeneral CleaningYes0.75 gal40 kHzYesUnratedCPX-952-218R 2617-00A 55495 $5738-12 Days4
120 VGeneral CleaningYes0.75 gal40 kHzNoUnratedCPX-952-219R 2637-41 56096 $5508-12 Days5
120 VGeneral CleaningYes0.5 gal40 kHzYesUnratedCPX-952-118R 2631-00A 55494 $4538-12 Days6
120 VGeneral CleaningYes0.5 gal40 kHzNoUnratedCPX-952-119R 2637-40 56094 $4368-12 Days7
120 VGeneral CleaningYes20.8 L40 kHzYesUnratedCPX-952-818R 2637-00A 55498 $1,9268-12 Days8
120 VGeneral CleaningYes2.5 gal40 kHzYesUnratedCPX-952-518R 2619-00A 55497 $1,1248-12 Days9
240 VGeneral CleaningYes0.5 gal40 kHzYesUnratedCPX-952-138R 2631-00A-220 56081 $5808-12 Days10
240 VGeneral CleaningYes0.75 gal40 kHzYesUnratedCPX-952-238R 2617-00A-220 56082 $7678-12 Days11
240 VGeneral CleaningYes1.5 gal40 kHzYesUnratedCPX-952-338R 2618-00A-220 56083 $1,2388-12 Days12
240 VGeneral CleaningYes2.5 gal40 kHzYesUnratedCPX-952-538R 2619-00A-220 56084 $1,4778-12 Days13
240 VGeneral CleaningYes20.8 L40 kHzYesUnratedCPX-952-838R 2637-00A-220 56085 $2,4948-12 Days14
240 VGeneral CleaningYes0.5 gal40 kHzNoUnratedCPX-952-139R 2637-40-220 56095 $5268-12 Days15
240 VGeneral CleaningYes0.75 gal40 kHzNoUnratedCPX-952-239R 2637-41-220 56097 $6978-12 Days16
240 VGeneral CleaningYes1.5 gal40 kHzNoUnratedCPX-952-339R 2637-42-220 56099 $1,1458-12 Days17
120 VGeneral CleaningYes2.5 gal40 kHzNoUnratedCPX-952-519R 2637-43 56100 $1,1008-12 Days18
240 VGeneral CleaningYes2.5 gal40 kHzNoUnratedCPX-952-539R 2637-43-220 56101 $1,3638-12 Days19
120 VGeneral CleaningYes20.8 L40 kHzNoUnratedCPX-952-819R 2637-44 56102 $1,8858-12 Days20
240 VGeneral CleaningYes20.8 L40 kHzNoUnratedCPX-952-839R 2637-44-220 56103 $2,4408-12 Days21
120 VGeneral CleaningNo0.5 gal40 kHzYesUnratedCPX-952-117R 2630-00A 56134 $3798-12 Days22
240 VGeneral CleaningNo0.5 gal40 kHzYesUnratedCPX-952-137R 2630-00A-220 56136 $5028-12 Days23
120 VGeneral CleaningNo0.75 gal40 kHzYesUnratedCPX-952-217R 2604-00A 56137 $5168-12 Days24
240 VGeneral CleaningNo0.75 gal40 kHzYesUnratedCPX-952-237R 2604-00A-220 56139 $6848-12 Days25
120 VGeneral CleaningNo1.5 gal40 kHzYesUnratedCPX-952-317R 2606-00A 56141 $8028-12 Days26
240 VGeneral CleaningNo1.5 gal40 kHzYesUnratedCPX-952-337R 2606-00A-220 56142 $1,0198-12 Days27
120 VGeneral CleaningNo2.5 gal40 kHzYesUnratedCPX-952-517R 2610-00A 56145 $1,0618-12 Days28
240 VGeneral CleaningNo2.5 gal40 kHzYesUnratedCPX-952-537R 2610-00A-220 56146 $1,3888-12 Days29
120 VGeneral CleaningNo20.8 L40 kHzYesUnratedCPX-952-817R 2614-00A 56148 $1,7938-12 Days30
240 VGeneral CleaningNo20.8 L40 kHzYesUnratedCPX-952-837R 2614-00A-220 56149 $2,3458-12 Days31
120 VGeneral CleaningNo0.5 gal40 kHzNoUnratedCPX-952-116R 2602-00A 56154 $3408-12 Days32
240 VGeneral CleaningNo0.5 gal40 kHzNoUnratedCPX-952-136R 2602-00A-220 56155 $4528-12 Days33
120 VGeneral CleaningNo0.75 gal40 kHzNoUnratedCPX-952-216R 2603-00A 56156 $4628-12 Days34
240 VGeneral CleaningNo0.75 gal40 kHzNoUnratedCPX-952-236R 2603-00A-220 56157 $6048-12 Days35
120 VGeneral CleaningNo1.5 gal40 kHzNoUnratedCPX-952-316R 2605-00A 56158 $7118-12 Days36
240 VGeneral CleaningNo1.5 gal40 kHzNoUnratedCPX-952-336R 2605-00A-220 56159 $9258-12 Days37
120 VGeneral CleaningNo2.5 gal40 kHzNoUnratedCPX-952-516R 2609-00A 56160 $9938-12 Days38
240 VGeneral CleaningNo2.5 gal40 kHzNoUnratedCPX-952-536R 2609-00A-220 56161 $1,2858-12 Days39
120 VGeneral CleaningNo20.8 L40 kHzNoUnratedCPX-952-816R 2613-00A 56162 $1,5808-12 Days40
240 VGeneral CleaningNo20.8 L40 kHzNoUnratedCPX-952-836R 2613-00A-220 56163 $2,1238-12 Days41
Voltage
Configuration
Programmable
Tank Capacity
Frequency Output
Heated
Heat Output
Manufacturer SKU
Item ordered before. Click on bagde to see the order.
Demo Available
Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

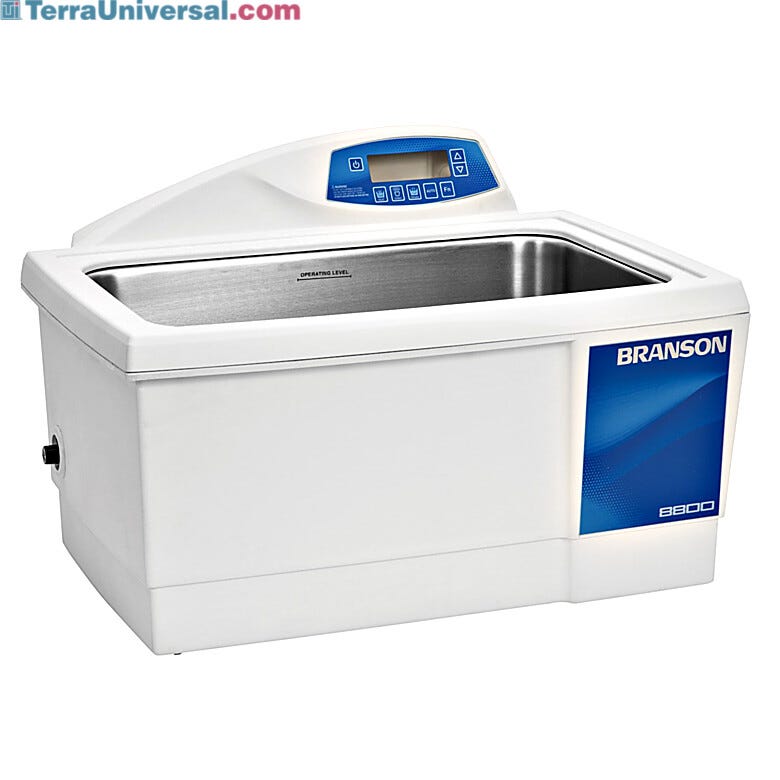

• Precision cleaning of small and medium sized parts and materials

• Ultrasonic power tracking automatically adjusts frequency when the load changes to ensure the same cavitation

• Choose from Digital or Mechanical Series with five capacity sizes to choose from

• Heated versions available with temperature sensors and auto-shutoff

• Choose the output waveform: 100% for normal applications or 70% for cleaning delicate parts

• Programmable models can activate the ultrasonic cycle when the process temperature reaches the programmed set point

• Automatic Sleep Mode shuts off the unit after 15 minutes of inactivity

• Applications: cell separation, liquid degassing, cleaning glassware or other instruments, removing flux from microelectronics, restoring jewelry, cleaning optics, removing oils or grease

• Precision cleaning of small and medium sized parts and materials

• Ultrasonic power tracking automatically adjusts frequency when the load changes to ensure the same cavitation

• Choose from Digital or Mechanical Series with five capacity sizes to choose from

• Heated versions available with temperature sensors and auto-shutoff

• Choose the output waveform: 100% for normal applications or 70% for cleaning delicate parts

• Programmable models can activate the ultrasonic cycle when the process temperature reaches the programmed set point

• Automatic Sleep Mode shuts off the unit after 15 minutes of inactivity

• Applications: cell separation, liquid degassing, cleaning glassware or other instruments, removing flux from microelectronics, restoring jewelry, cleaning optics, removing oils or grease

Features & Benefits

Features & Benefits

Ultrasonic Cleaning Accessories

Ultrasonic Cleaning Accessories

We offer a wide line of cleaning accessories to make your cleaning job easier and faster. Exactly which accessories you need will depend on the cleaning method you use.

For Direct Cleaning you typically need only a perforated insert tray. This method involves pouring the cleaning fluid directly into the tank and then lowering items either in a perforated tray or suspended by a wire. The chief advantage of this method is its simplicity. It does, however, present several disadvantages: all removed soil remains in the tank; only one solution can be used at a time; and highly acidic or caustic solutions should not be used at all.

Indirect Cleaning solves these problems and provides more flexibility and control over the cleaning cycle. In this method, the tank is filled with a liquid driving medium, such as water, plus a wetting agent (detergent) to improve circulation. Cleaning solutions are poured into one or more beakers or solid insert trays, where parts can then be placed. The beakers fit into a beaker positioning cover which suspends them in the tank. If a solid tray is being used, its handles should fit over the edges of the unit and suspend it in the tank.

This method ensures that removed soil stays in the beaker or tray; it can be easily examined, filtered, or discarded. Indirect cleaning also lets you use one or more solutions at the same time. In a large cleaner, which features inserts for three beakers, one beaker might contain a rinse solution and the other two beakers could contain two different types of cleaning solutions. Whichever method you employ, optimal cleaning occurs in the area of the tank between 1/2" from the top and 1/2" from the bottom. Therefore, parts should not be placed directly on the bottom.

Note: Be sure to maintain a fluid level between 1/2" and 1" from the top of the tank or the unit could be damaged.

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Perforated Tray
    The perforated design offers extra depth to accommodate large parts or numerous small ones while allowing sound waves to penetrate
  • Mesh Basket
    The mesh design offers a shallow basket for quick cleaning of small components
  • Solid Insert Tray
    The solid design performs ultrasonic cleaning indirectly, allowing for separation of liquids
