Casters (Set of 4) ; for 63600 Series Vibration-Free Tables

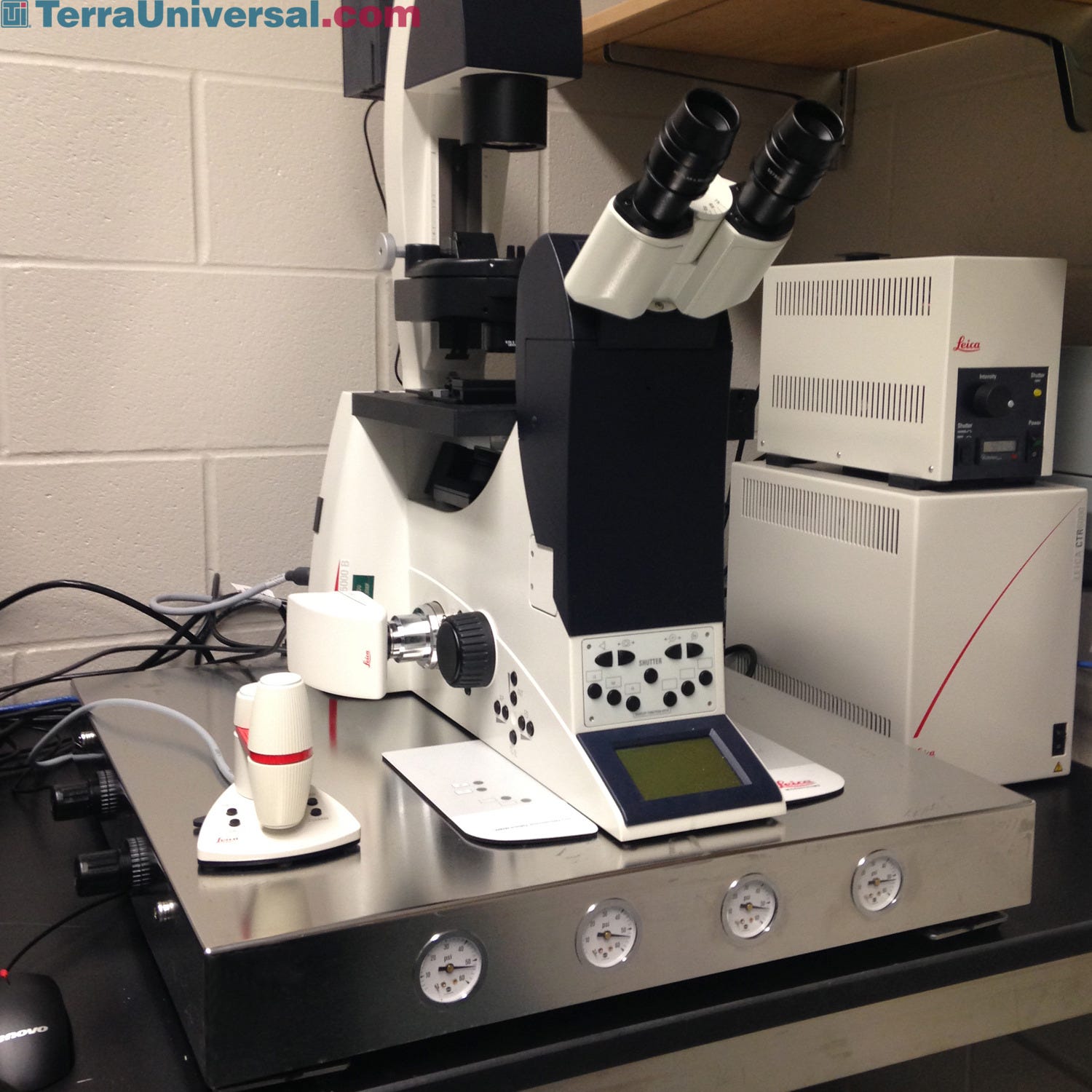

Vibration Isolation Platform for Digital Lab Microscope

Terra's vibration isolation platform is perfect for enhancing clarity on highly-sensitive digital lab microscopes. The compact design allows it to be placed on top of existing workstations.

Vibration Free Platform Perfect for Microscopes

Terra's anti vibration platform is large enough to support most larger microscopes along with their support equipment. The pneumatic vibration isolators have a low natural frequency of 2-4Hz which effectively isolates out 90% of building vibrations.

Vibration-free Platform Chart03

Vibration Isolation Platform Performance Comparison Chart

Four pneumatic vibration isolation modules act as all-axis air springs that isolate up to 90% of typical building vibrations. With the help of built-in pressure regulators, this platform maintains a fixed, controlled pressure with maximum loads up to 213 lbs.

Vibration-Isolated Configurations for Improved Stability

ErgoHeight™ workstations can be configured with vibration dampening tabletops. The pneumatic vibration-free mounts isolate up to 90% of building vibration to improve stability for vibration sensitive operations and minimize worker fatigue and nausea during high-magnification work.

ClassOne™ Vibration-Free Table; 63600 Series, EP Stainless Steel

The electropolished stainless steel ClassOne Vibration-Isolation Table is suitable for cleaner-than-Class-100 cleanrooms; patented Gimbal piston isolators achieve horizontal and vertical isolation to very low input levels.

Casters (Set of 4) ; for 63500 Series Vibration-Free Tables

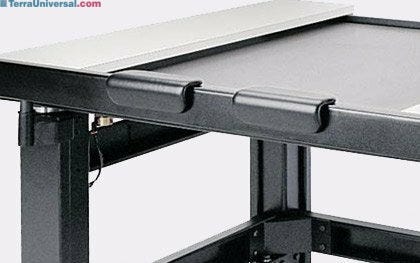

Armrest Pads for Front Support Bar; 63500 Series Vibration-Free Tables

Vibration-Free Work Station,304 Stainless Steel, ISO-Rated, 60"W x 30"D

Pneumatic dampeners isolate work surface from building vibration that can cause motion sickness during high-magnification work; all-304 stainless steel construction meets cleanroom requirements (shown: 60"W model)

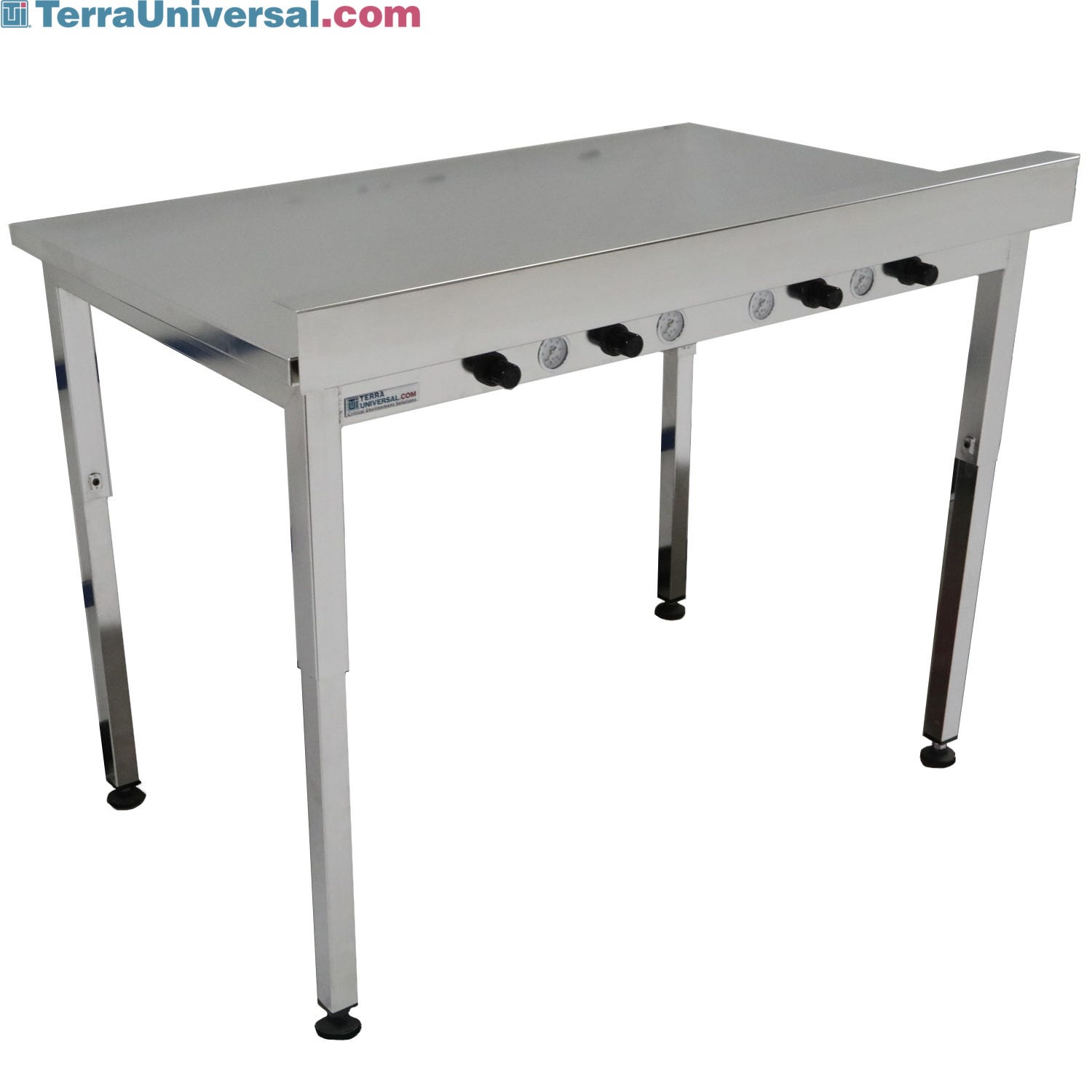

Stainless Steel Vibration-Free Table, 48"W x 30"D

Pneumatic dampeners isolate work surface from building vibration that can cause motion sickness during high-magnification work; all-304 stainless steel construction meets cleanroom requirements (shown: 60"W model)

Work Station; Vibration-Free, Static Dissipative Top, 60"W x 30"D

Pneumatic Passive Vibration Isolation Platform

Cleanroom vibration isolation platforms eliminates platform vibration for enhanced clarity.

Stainless Steel Vibration-Free Work Station, 72"W x 30"D

Pneumatic dampeners isolate work surface from building vibration that can cause motion sickness during high-magnification work; all-304 stainless steel construction meets cleanroom requirements (shown: 60"W model)

Work Station; Vibration-Free, Nonconductive Top, 48"W x 30"D

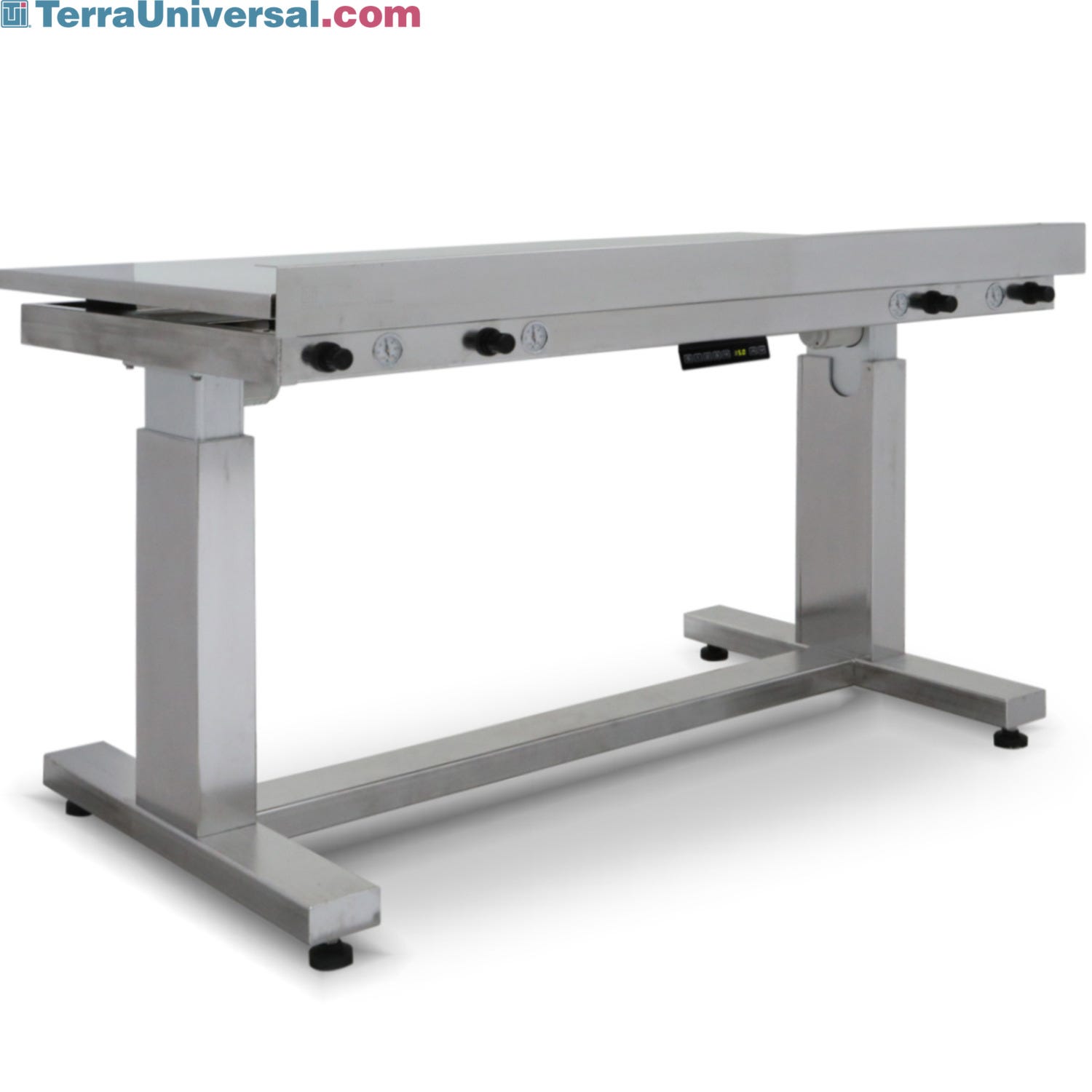

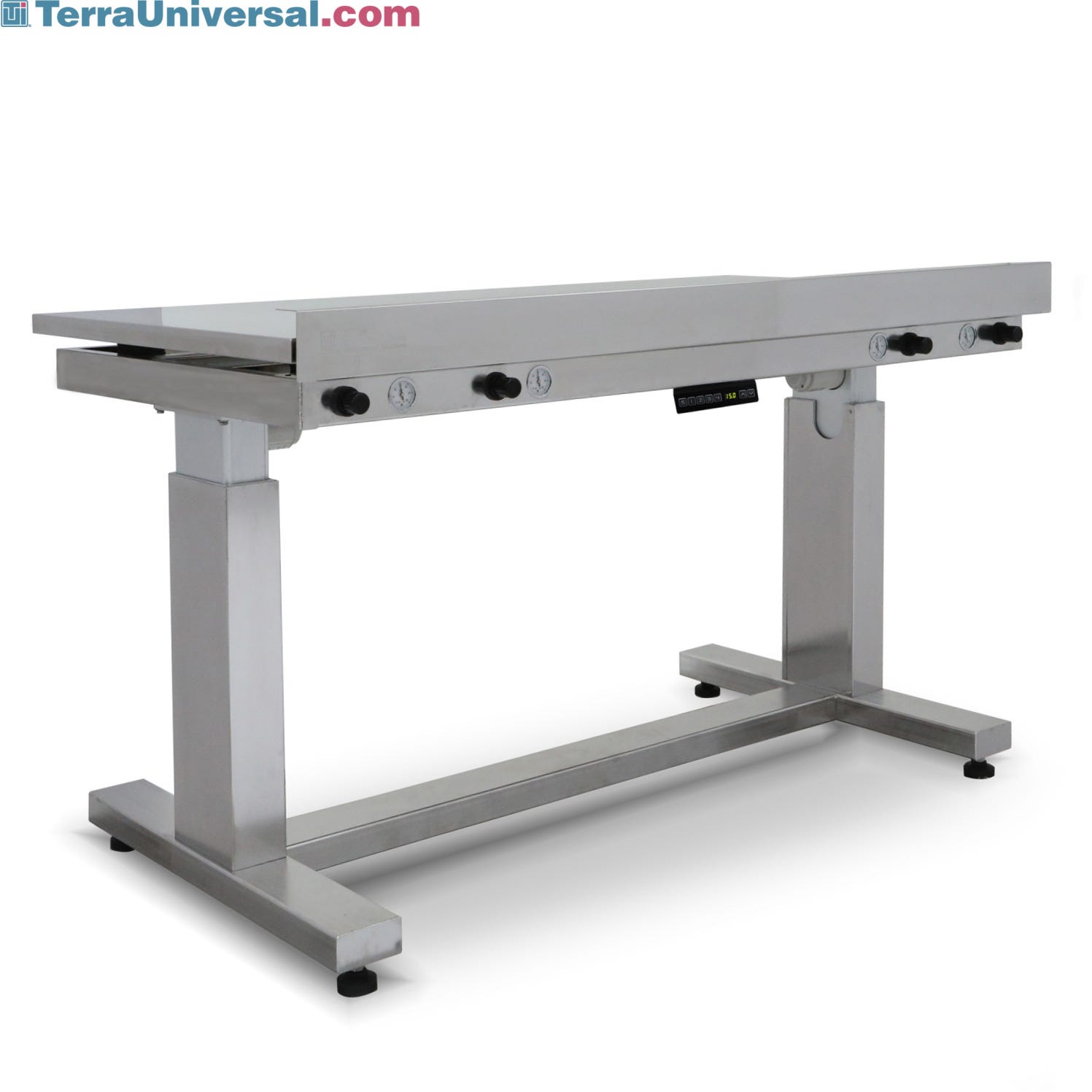

Vibration-Free ErgoHeight® Adjustable Table, 304 SS Top, 60"W x 30"D

Vibration-Free ErgoHeight® tables provide a 15" range of vertical motion to ensure personnel comfort while dampening vibration; eliminates worker nausea during high-magnification work.

Work Station; Vibration-Free, SS Top, All SS Construction, 60"W x 30"D

Pneumatic dampeners isolate work surface from building vibration that can cause motion sickness during high-magnification work; all-304 stainless steel construction meets cleanroom requirements (shown: 60"W model)

ClassOne Workstation for Cleanrooms

ClassOne™ Workstations dampen building vibrations that cause operator motion sickness and microscopy inaccuracies.

Vibration Isolation Platform; Pneumatic, Passive Damped; 304 Stainless Steel, 24" W x 24" D x 3" H

Vibration-free platforms utilize pneumatic isolators to provide benchtop vibration isolation in both vertical and horizontal

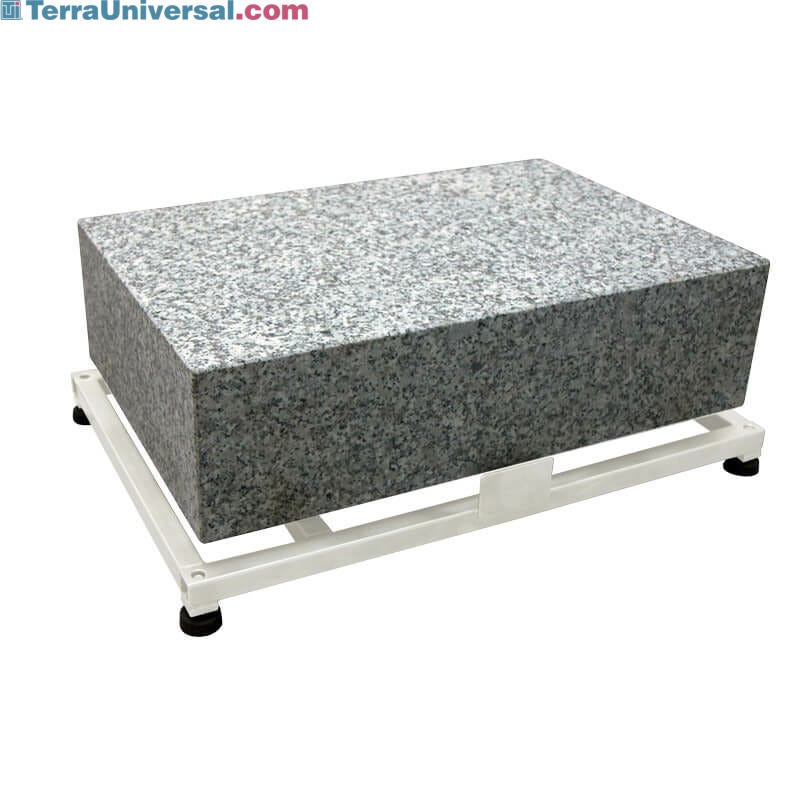

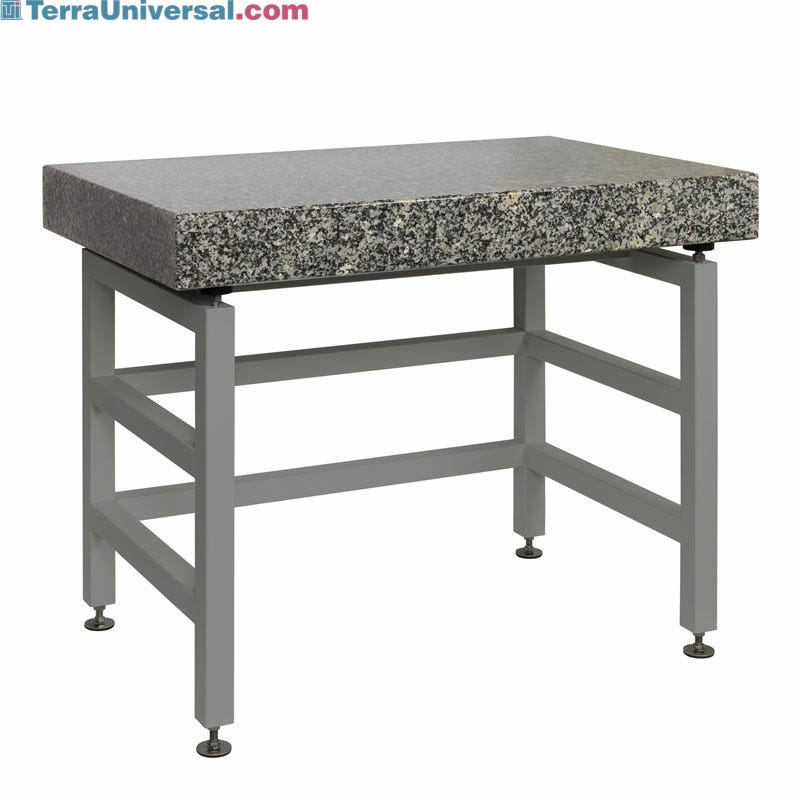

Granite Isolator for Precision Electronic Weighing Scale

Granite vibration isolators are ideal for precision electronic weighing scales, and microscopes

Front Support Bar of Vibration Isolation Table

Front support bar of ClassOne™ cleanroom vibration-free tables (included) is isolated form work surface.

Vibration Isolation Guide

Foot traffic and air handlers can disrupt work processes, so vibration control is critical for efficiency and accuracy in precision applications. Learn more about the effects of vibration and how to control it.

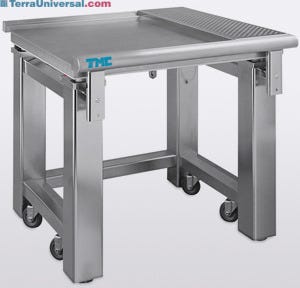

CleanBench Vibration Isolation Tables

TMC CleanBench™ Vibration Isolation Tables support balanced loads up to 500 lbs.; patented Gimbal Piston™ isolators achieve horizontal and vertical dampening (shown with two optional sliding shelves).

Compact Low Profile Design

Passive vibration isolation platform systems enhance the performance of precision tabletop equipment for applications, such as microscopes, microhardness testers, analytical balances, profilometers, and other preceision measuring and testing equipment.

Vibration-Free Work Station

Terra’s Vibration-Free Work Station applies pneumatic vibration control to the entire table. Reduces operator nausea during microscopy processes.

Stainless Steel Adjustable Ergoheight® Workstation

ErgoHeight® tables incorporates a high-torqe, low RPM motor inside two lifters, located on the left and ride side of the table. Each lifter can safely handle 440 lbs of net load.

Vibration Isolation Platform; Pneumatic, Passive Damped; 304 Stainless Steel, 24" W x 24" D x 3" H

Underside of vibration isoation platform with 4 pneumatic mounts and 190+ lbs of powder-coated solid metal plates
