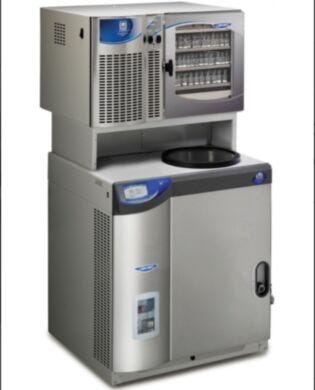

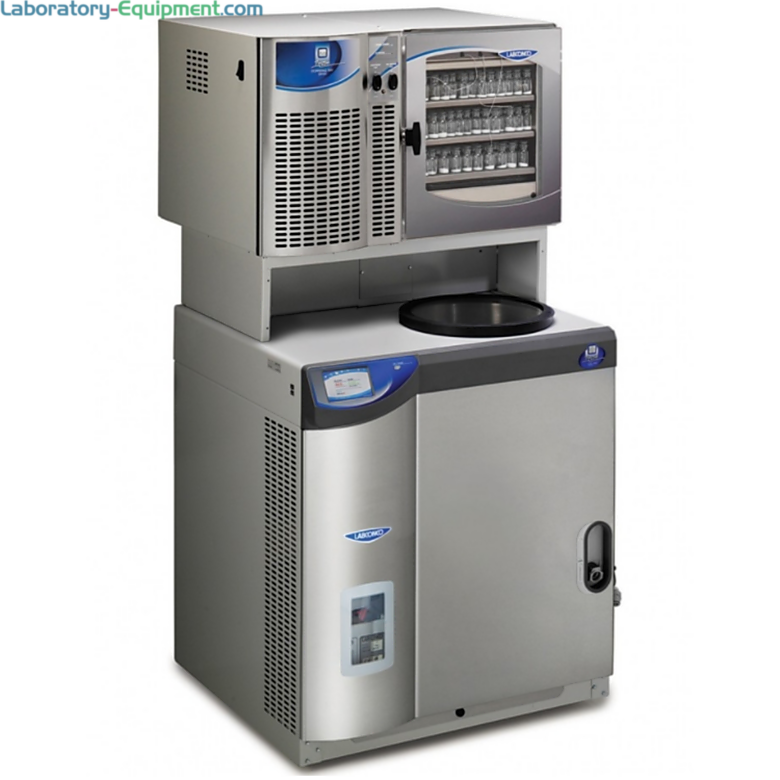

- 12-Liter FreeZone Console Freeze Dryers for lyophilizing moderate to large sample loads include casters for mobility, an interior space that accommodates required vacuum pump (sold separately), and a removable two-piece front panel with viewing window
- Features Lyo-Works operating system and choice of upright stainless steel, or PTFE-coated stainless steel collector coil (for corrosive compounds)
- Refrigeration temperatures: -50° C for aqueous samples, or -84° C for low eutectic point samples containing water or acetonitrile
- Required vacuum pumps: rotary vane pump, chemically resistant rotary vane pump, combination pump or scroll pump
- Select models include stoppering tray dryer, purge valve, shell freezer and/or mini chamber
6923-PP-03
6923-PP-03
12-Liter FreeZone Console Freeze Dryers by Labconco
Read more
Want a quote quickly ?
Submit a QuickQuote requestProduct Details
Product Details
Features & Benefits
Features & Benefits
Learn More: FreeZone 12L
Print Copy Copied
Additional Features
- 3" diameter port (for connecting drying accessories)
- Displays collector temperature, vacuum level, and optional End-Zone™ end point detection system in real time
- Modes: Collector cool-down (start-up) and vacuum pull-down (automatic or manual)
- Operating mode (standby or run)
- Settings: multi-language, time, time zone, temperature (° C or ° F), and vacuum (mBar, Torr, or Pa)
- Vacuum set point, alerts, diagnostic tests, user manual, defrost control, and optional drying accessory parameters
- Data logging storage and display: table or chart format exportable via USB or Ethernet
- Programmable alerts can be sent via Ethernet connection to user-entered email addresses.
- Display settings: brightness, touch sounds (on/off), and screen time out in minutes (on/off)
- Maintenance alert settings include vacuum pump oil change, refrigeration cleaning, total operating hours and line voltage offset
- Level-specific security lock-out prevents changes to programs and other system parameters
- Hot gas defrost with auto shut off at +65° C (+149° F)
- On/standby switch
- Moisture sensor prevents refrigeration or vacuum start-up when moisture is detected in the drain line
- USB port (side-mounted) and Ethernet connection (rear-mounted)
- Side-mounted, quick-disconnect drain hose fitting and lanyard with hose connector
- Rear-mounted electrical receptacle for vacuum pump connection
- Includes: 18", 1/4" ID silicone tubing and clamp, 3-wire electrical cord with plug
- 3/4" OD vacuum connection, 50" of 3/4" ID vacuum hose and two clamps
- Vacuum control valve maintains vacuum level set point
- Vacuum break valve bleeds air into the system in event of power outage
-50°C Collector Temperature
- For aqueous samples
- Single 1 hp HCFC/CFC-free refrigeration system
- Removes over 8 liters of water in 24 hours
- Available Options: Purge Valve and Mini Chamber
-84°C Collector Temperature
- For samples with low eutectic points including acetonitrile
- Two 3/4 hp HCFC/CFC-free refrigeration system
- Removes 6.5 liters of water in 24 hours
- Available Options: Purge Valve and Mini Chambe
-105°C Collector Temperature
- For samples with very low eutectic points including acetonitrile and diluted methanol or ethanol
- Two 1/2 hp HCFC/CFC-free refrigeration systems
- Removes 2.5 liters of water in 24 hours
Catalog of CE-Marked Products
Terra offers over 1,700 CE-marked products configured for international voltage requirements
Stoppering Tray
Included with select models for moderate to large loads of serum bottles or vials; pneumatic mechanism stoppers containers under vacuum on three processing shelves
