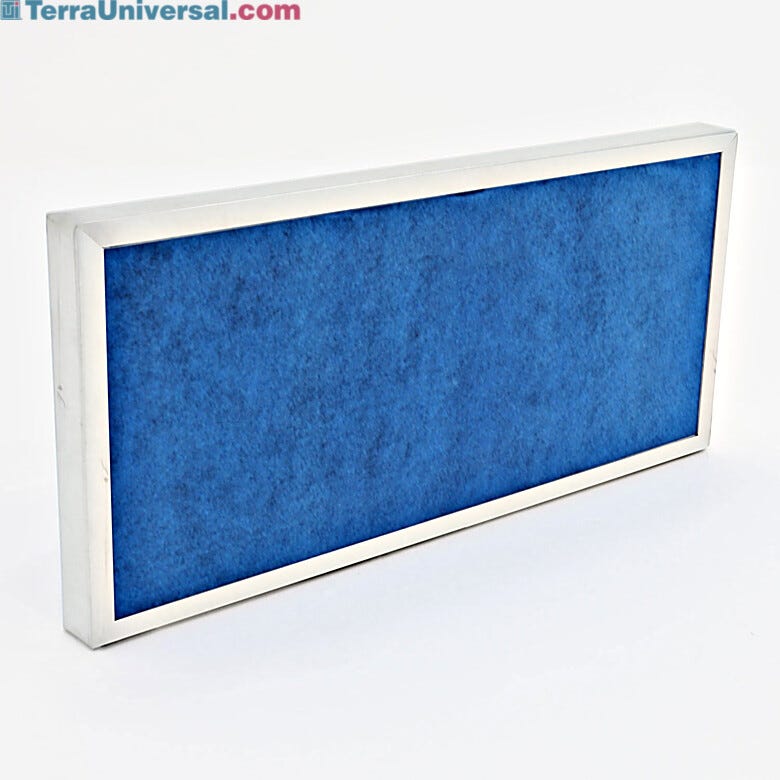

Activated bonded-charcoal filters remove a broad range of organic compounds and solvent fumes | 1716-00A displayed
Hood Accessories,Hood Accessories,Hood Accessories,Hood Accessories,HEPA, ULPA, and Carbon Filters

Activated Bonded Charcoal Filter; Fume Scrubbing, 13"W x 27.75"D x 1.75"H

Warranty: 1 Year Limited Warranty
  • Bonded carbon media effectively removes a wide range of compounds and solvent fumes, ensuring a cleaner exhaust
  • Capable of adsorbing approximately 2.64 lbs (1,197.5 g) of common volatile organic compounds (VOCs) under typical ambient conditions
  • Particle entrapment layers contain charcoal dust, minimizing mess and improving handling
  • Includes high-loft, non-woven polyester pre- and post-filter pads for effective downstream particulate filtration
  • Features KOH-impregnated carbon, specifically designed to neutralize acidic gases

• Type: Filter

• Width: 13"

• Depth: 27.75"

• Filter Type: Fume Scrubbing

• Unit of Measure: EA

Read more
Stocked Quick Ship +
Warranty: 1 Year Limited Warranty
Print
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
1716-00A
Terra Part # 1716-00A
$651
*includes web discount for online orders Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Terra Part # 1716-00A
36810
$651
Save For Later
In stock
Usually ships in 0-2 business days

Want it faster ? Read about FasTrak

In stock
Usually ships in 0-2 business days

Want it faster ? Read about FasTrak

Details & Specs
Manuals & Resources
Related Products
Product Details
  • Bonded carbon media effectively removes a wide range of compounds and solvent fumes, ensuring a cleaner exhaust
  • Capable of adsorbing approximately 2.64 lbs (1,197.5 g) of common volatile organic compounds (VOCs) under typical ambient conditions
  • Particle entrapment layers contain charcoal dust, minimizing mess and improving handling
  • Includes high-loft, non-woven polyester pre- and post-filter pads for effective downstream particulate filtration
  • Features KOH-impregnated carbon, specifically designed to neutralize acidic gases
  • Carbon Bonded Panels (CBPs) provide effective odor control and particle filtration in critical environments.
  • 1 lb (0.45 kg) of activated charcoal adsorbs up to 33% of its weight in contaminants, ensuring superior filtration.
  • Effectively removes volatile organic compounds (VOCs) like carbon tetrachloride, trichloroethane, and ethylbenzene
  • Designed for high performance and low particulate shedding, these bonded carbon panels eliminate the need for downstream filters, unlike loose-fill carbon trays or disposable honeycomb filters
  • Suited for HVAC systems in critical environments
  • Activated Carbon: Made from high-quality, virgin coconut shell for superior pore size distribution and maximum adsorption capacity. Designed for effective removal of odors, VOCs, and airborne contaminants.
  • Pressure Drop: Offers equivalent static resistance to loose-fill refillable panels. Its self-supporting structure eliminates the need for high-resistance perforated or expanded panel designs
  • NOTE:  All filter sales are final; returns cannot be accepted.

• Type: Filter

• Width: 13"

• Depth: 27.75"

• Filter Type: Fume Scrubbing

• Unit of Measure: EA

• Electrical Specifications: None

• Weight, Product: 11 Lbs

• Dimensions, Product: 13"W x 27.75"D x 1.75"H

• Weight, Shipping: 16 lb

• Dimensions, Shipping: 19"W x 33"D x 5"H

• Package Type: Box

Show more
Other products you may find relevant
  1. Biofit ISO4 black high bench chair includes high profile tubular steel base, dual-wheel casters, footring and four-way contouring seat
    BioFit Elite ETS Series Cleanroom Chair ISO 5 Blue Vinyl Tubular Steel 25"-32" With Footring
    $485
    Usually Ships in 3 - 5 days
  2. Granite vibration isolators are ideal for precision electronic weighing scales, and microscopes | 1580-20 displayed
    Vibration Control Platform, Granite Isolator; 16" W x 21" D x 1.5" H, 70 lb Capacity
    $1,127
    Usually Ships in 5 - 7 days
  3. Cleanroom gloves suitable for different applications and cleanliness requirements. | 5605-30 displayed
    Gloves; Cleanroom, M, 12", Nitrile, ISO 5, ISO 6, ISO 7, ISO 8, Valutek
    $236
    Usually Ships in 8 - 14 days
  4. #T5005-3205 with a compact 9 x 7 inch footprint | 2829-66 displayed
    Thermal Cycler; TC-32, 32 Well, 100/240 V
    $3,438
    Usually Ships in 5 - 7 days
  5. Front side of horizontal HEPA filtration system; 1 FFUs mounted on a base stand
    Portable Horizontal Flow Module; 1 FFU, 50" W x 40" D x 27" H
    $2,118
    Usually Ships in 1 - 3 days
  6. Front side of horizontal laminar flow module; 2 HEPA fan filter units mounted on a base stand
    Portable Horizontal Flow Module; 2 FFU's, 48" W x 26" D x 48" H
    $3,446
    Usually Ships in 5 - 5 days

Features and Benefits

Learn More: Activated Charcoal Filtration
Print Copy Copied

Activated Charcoal Filtration Table

Terra Part Number Description UVDI Part Number Chemical Filter Index Contaminants
1701-90A Activated Bonded Charcoal Filter; for fume scrubbing, 12" x 12" x1.75" B23038 AC Multiple volatile organic gases/solvent vapors and inorganic gases; fumes, food odors, body odors, perfumes, ozone
1716-00A Activated Bonded Charcoal Filter; for fume scrubbing, 13" W x 27.75" D x 1.75" H B23019 AC Multiple volatile organic gases/solvent vapors and inorganic gases; fumes, food odors, body odors, perfumes, ozone
1716-00A-B Activated Bonded Charcoal/ Permanganate Oxidant Blend Filter 13" W x 27.75" D x 1.75" H B23031 AC/FOR Cigarette smoke, fumes, ethylene, aldehydes, food odors, paint, multiple organics, hydrogen cyanide, NOx, SOx,
1716-00A-D Activated Bonded Charcoal Filter; Caustic Impregnation, 13" W x 27.75" D x 1.75" H B23032 AC/I Inorganic acids, chlorine, NOx, SOx, hydrogen sulfide
1716-00A-E Activated Bonded Charcoal Filter; Multigas Impregnate, 13" W x 27.75" D x 1.75" H B23119 ALK and AC/I Mixture of acidic and basic vapors, mixture of volatile organics and inorganics with ammonia, amines
