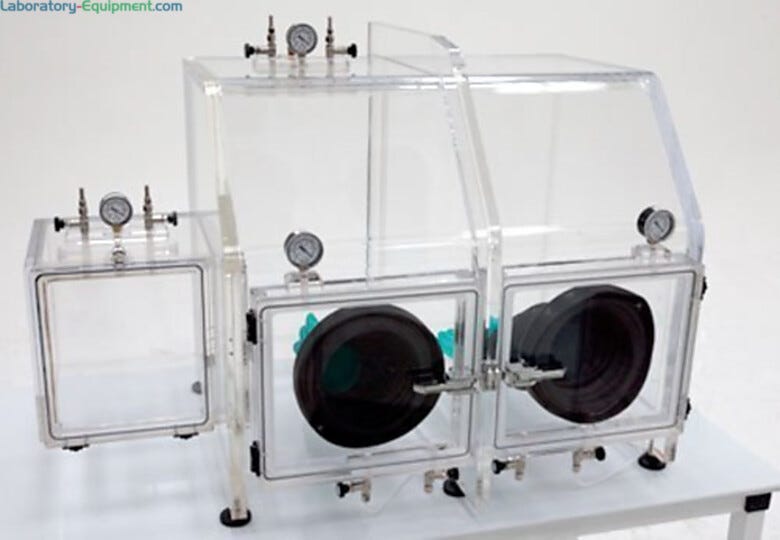

Allows transfer of materials into the glovebox without breaching the controlled environment (shown with left-mount airlock). | 3305-48 displayed
Glovebox Accessories,Glovebox Accessories

Air Lock; Vacuum, Series 210, Left/Right Mount

Terra Part #: 3305-48A
Manufactured By: Terra Universal
Warranty: 1 year parts, 90 days labor
LTL freight shipment. Dock or liftgate may be required.
  • Available Certified ISO Grade Designs: ISO 7, ISO 8

• Accessories: Air Lock

• Material: Acrylic

• Style: Pass Through

• Unit of Measure: EA

Read more
ISO 7 Icon
Terra Part #: 3305-48A
Manufactured By: Terra Universal
Warranty: 1 year parts, 90 days labor
LTL freight shipment. Dock or liftgate may be required.
Print
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
3305-48A
Terra Part # 3305-48A
$3,277
Accessories related to Terra Part # 3305-48A
79959
Air Lock; Vacuum, Series 210, Left/Right Mount
View Shopping Cart View Quote Cart
CONFIGURE & ADD TO CART
Usually ships in 25-25 business days

Want it faster ? Read about FasTrak

Details & Specs
Related Products
Product Details
  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • Mounts to the left/right side of Series 210 Vacuum Glovebox
  • Material: 1" (25 mm)-thick acrylic
  • External Dimensions: 3"W x 12"D x 13"H (324 x 279 x 305 mm)
  • Internal Dimensions: 11.25"W x 10"D x 10"H (275 x 232 x 257 mm)
  • Includes dual metering valves and vacuum gauge
  • Supports vacuum to 29.9" Hg (order pump and vacuum controller, No. 1681-75, separately)

• Accessories: Air Lock

• Material: Acrylic

• Style: Pass Through

• Unit of Measure: EA

• Weight, Product: 12 lb

• Dimensions, Product: 13" W x 12" D x 13" H

• Weight, Shipping: 24 lb

• Dimensions, Shipping: 16" W x 16" D x 15" H

• Package Type: Palletized

Show more
Buy Accessories
  1. | 5235-23 displayed
    Mini Ball Valve, 1/4" MNPT, Nickle Plated Quick Ship+ Available In stock
    $67
    Increase Down Increase Up
  2. Senses and indicates vacuums on 0-30 Hg scale | 5235-10 displayed
    Vacuum Gauge 0-30HG, 2"dia, 1/4"NPT Quick Ship+ Available In stock
    $330
    Increase Down Increase Up
  3. Dual metering valves allow purging of the chamber with nitrogen or other process gas before vacuum is applied | 5235-09 displayed
    Metering Valve; Nickel-Plated, 1/4 male NPT x 1/4: Dk-lock Quick Ship+ Available In stock
    $269
    Increase Down Increase Up
  4. FasTrak 24-7 Expediting Service
    FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  5. Qualification Documentation (IQ/OQ) for Terra Universal System
    Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  6. White Glove Freight Service
    White Glove Freight Service
    Request Quote
    Increase Down Increase Up
  7. Equipment Testing
    Equipment Testing
    Request Quote
    Increase Down Increase Up
  8. Service, ISO Grade Certificate, ISO 7
    Service, ISO Grade Certificate, ISO 7
    Request Quote
    Increase Down Increase Up

Features and Benefits

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.
