3031-PP-02
3031-PP-02 72041

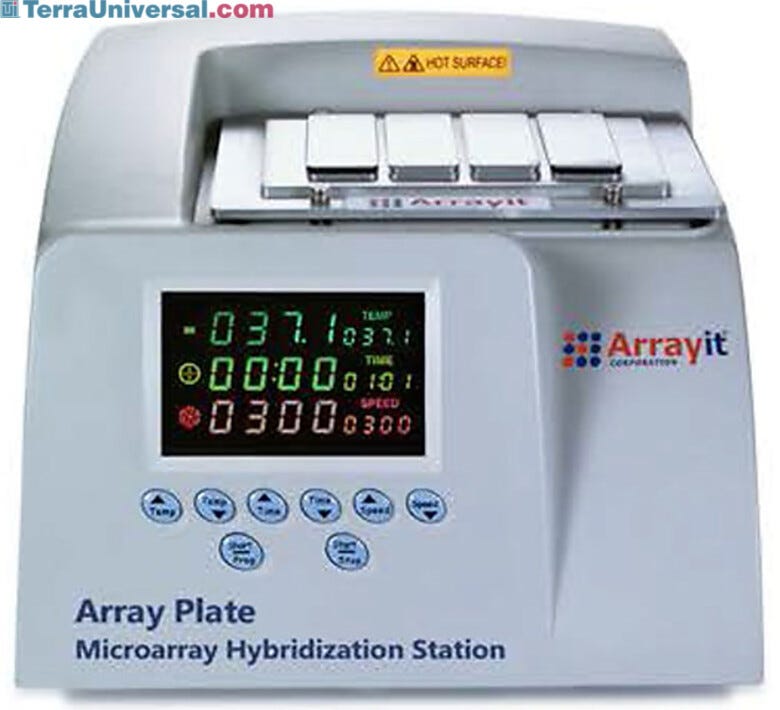

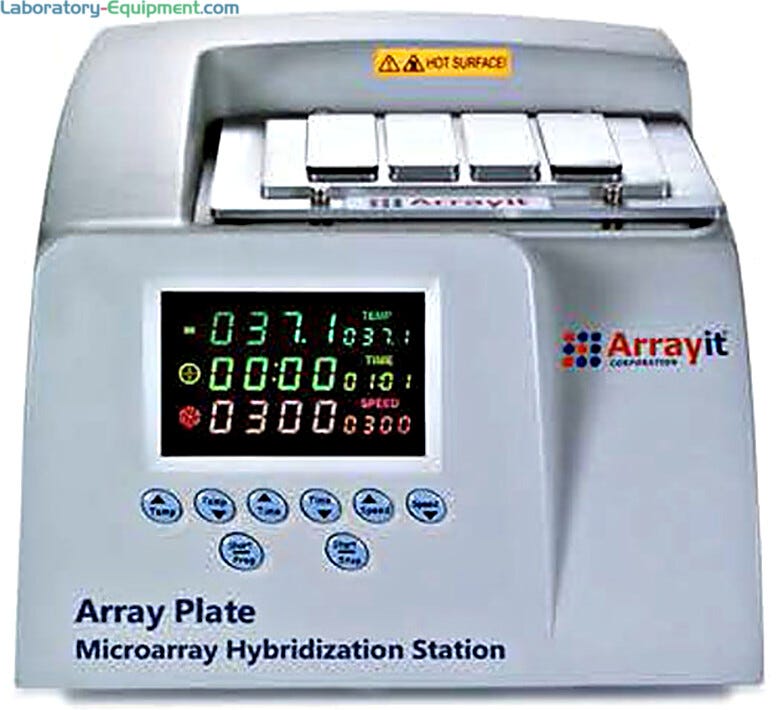

Array Plate Multi-Well Microarray Hybridization Stations by Arrayit
Read more
Manufactured By: Arrayit
Print
Want a quote quickly ?
Submit a QuickQuote requestProduct Details
- Array Plate Hybridization Stations by Arrayit feature Peltier heating and cooling
- Quickly and efficiently hybridizes and incubates DNA, protein, carbohydrate and peptide microarray
- 1-Plate capacity#MMHS110V for 96 microarrays
- 2-Plate capacity #MMHS2 for 192 microarrays
- 4-Plate capacity #MMHS4 for 384 microarrays
- Temperature range:
- Microcomputer control of timer, heating, cooling, and mixing operations
- Operations progress easily visible on high-luminosity 3-color digital display
- Alloy block allows rapid heating and cooling
- Versatile block accepts microplates and single tubes
- Compatible with microarray microplate hardware AHC4x8S, AHC4x8L, AHC4X16 and AHC4X24
- Applications: Hybridizes/incubates DNA, protein, carbohydrate and peptide microarrays
Features & Benefits
Features and Benefits
Single and Multi-Plate Models
Print Copy Copied
More Information
| Model | #MMHS110V | #MMHS2 | #MMHS4 |
|---|---|---|---|
| Capacity | Single-Plate Capacity | 2-Plate Capacity | 4-Plate Capacity |
| Simultaneous reactions | up to 96 microarrays | up to 192 microarrays | up to 384 microarrays |
| Mixing speed | 300 to 1,500 rpm | 300 to 1,200 rpm | |
| Temperature range | ambient to 100°C heating | ambient to 60°C heating | |
| Timer range | 1 minute to 100 hours | ||
| Mixing amplitude of micro-well samples | 3 mm | ||
| Temperature control accuracy | ±0.5°C | ||
| Display accuracy | ±0.5°C | ||
| Temperature uniformity | ±0.5°C | ||
| Heating time | 20°C to 100°C: 10 minutes | 25°C to 37°C: 10 minutes | |
| Cooling time | 100° to 20°C: 10 minutes | 37°C to 25°C: 5 minutes | |
| Dimensions (W x D x H) | 10 x 13 x 7 in. (270 x 330 x 170 mm) | 10 x 11 x 5 in. (260 x 270 x 130 mm) | 15 x 15 x 6 in. (381 x 381 x 140 mm) |
| Net weight | 18.7 lbs. (8.5 kg) | 13.4 lbs. (6.1 kg) | 19.4 lbs. (8.8 kg) |
| Compatible well configurations | AHC4x8L and AHC4x24 well configurations | ||
| Power requirements | 110 – 240V AC at 50/60Hz and 150W | 110-240V AC at 50/60Hz and 40W | 110-240V AC at 50/60Hz and 50W |
| Includes |
| ||
Accelerates Hybridization Rates by Approximately 10-Fold
Figure 1-A. Hybridized for 30 minutes at 42° in 30 µl under a glass cover slip
Figure 1-B. Hybridized for 30 minutes in 200 µl at 500 rpm using an Array Plate Hybridization Station. Figure 1-B shows a 10-fold increase in signal compared to figure 1-A. Even with a 6.7-fold greater probe dilution, the Array Plate produced a stronger signal compared to static cover slip hybridization reactions. Note: Microarrays were spun dry for 3 seconds using the Microarray High-Speed Centrifuge and scanned on an Arrayit InnoScan® 710AL Two-Color High-Speed Fluorescence Scanner
Figure 2. The Plate Hybridization Station accommodates various cassettes for fast and effective microarray hybridization reactions. Gaskets can be modified to various formats. Cassettes are sealed with a microplate foil seal to eliminate sample evaporation during hybridization process.
Figure 3. Multi-Well Hybridization Stations accept various interchangeable block tubes for holding tubes, plates, chambers and cassettes.
Figure 4. This display diagram shows the various features of Microarray Multi-Well Microarray Hybridization Stations.
Easy Placement of Hybridization Cassette and Substrates
Substrate slides placed between Arrayit Multi-Well Hybridization Cassette with anodized aluminum lid and silicone gasket
Heating and Cooling Alloy Block
Rapid heating and cooling alloy block accommodates 4 x 24 wells and increases the efficiency of hybridization reactions
