• Accessories: Casters
• Wheel Diameter: 3"
• Caster Load Rating: 210 lbs.
• Caster Finish: Zinc
• Brakes: No brake
• Caster Type: Stem, heavy-duty
• Wheel Material: Hard Rubber
• Unit of Measure: EA
Desiccator Accessories,Hardware & Materials

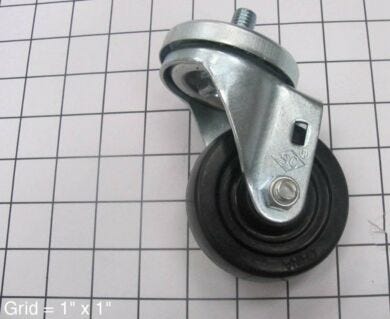

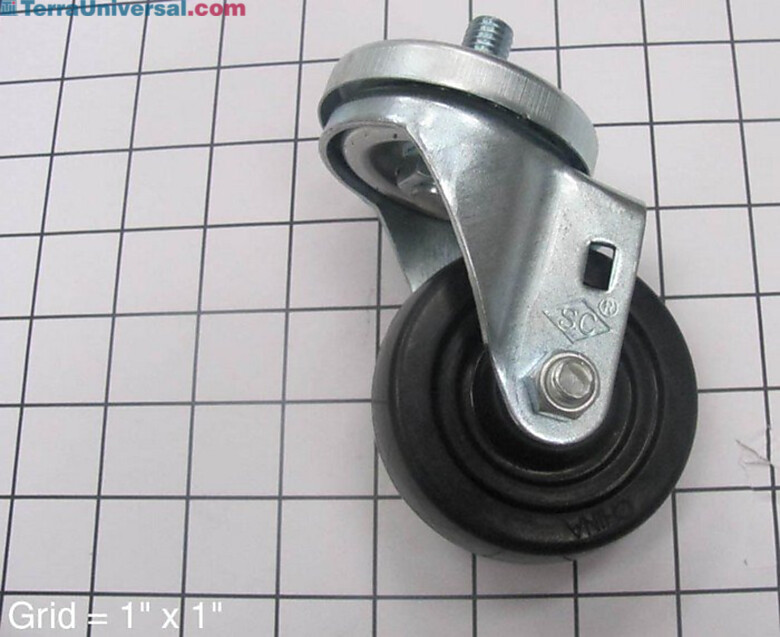

Caster; 3" diameter, Heavy Duty Low Profile, Hard Rubber Wheel, Bright Zinc Plated, no Brake
Read more
Print
Want a quote quickly ?
Submit a QuickQuote request- Dimensions: 3" (76 mm) diameter x 1 1/4 " (32 mm) tread width
- Wheel material: hard rubber
- Finish material: Bright Zinc Plated
- Load capacity: 210 lb (95.3 kg) each
- Double-bearing construction with hardened raceways lend extra strength
- No brake
- Zinc plated casters are not suitable for cleanroom use. Select stainless steel caster set 1700-41 to avoid potential contamination and corrosion
• Accessories: Casters
• Wheel Diameter: 3"
• Caster Load Rating: 210 lbs.
• Caster Finish: Zinc
• Brakes: No brake
• Caster Type: Stem, heavy-duty
• Wheel Material: Hard Rubber
• Unit of Measure: EA
• Electrical Specifications: None
• Weight, Shipping: 1.49 lb
• Package Type: Box
Features and Benefits
Casters
Print Copy Copied
Casters
Application Key
| Figure | Application |
|---|---|
| 1, 2 | Recommended for use on stands used for desiccators, glove boxes, computer cart, reticle and screen frame storage cabinets. |
| 3, 4 | Stainless steel finish and Bakelite® wheels make these ideal for ultra-clean applications, including Terra's Stainless Steel Desiccators |
| 5, 6 | Standard plate casters used on Terra's acid and chemical carts. |
| 7 | Similar to type 5 above, but without brakes. |
| 8 | Used on Terra's Softwall Cleanrooms (one required for each support post). |
| 11 | Standard caster used on Terra's heavy-duty PureFlow Mobile Storage Systems. |
Casters for all Terra Product Carts and Stands (All dimensions are inches)
| Fig. | Dia. in. (mm) | Tread Width in. (mm) | Wheel Material | Bearing | Axle in. (mm) | Load Capacity lbs. (kg) | Overall Height in. (mm) | Finish | Stem in. (mm) | Type | Cat. # |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 3 (76) | 1.25 (32) | Hard Rubber | Sintered | .375 (10) | 210 (95) | 3.9375 (100) | Bright Zinc | .5-13 x 1.5 (13-330 x 38) | Heavy duty Low Profile | 1700-18 |
| 2 | 3 (76) | 1.25 (32) | Hard Rubber | Sintered | .375 (10) | 210 (95) | 3.9375 (100) | Bright Zinc | .5-13 x 1.5 (13-330 x 38) | Heavy duty Low Profile | 1700-40 |
| 3 | 4 (102) | 1.5 (38) | Bakelite | Stainless Steel | .375 (10) | 300 (136) | 5.0625 (129) | Stainless Steel | .5-13 x 1.5 (13-330 x 38) | Heavy duty | 1700-41 |
| 4 | 4 (102) | 1.5 (38) | Bakelite | Stainless Steel | .375 (10) | 300 (136) | 5.0625 (129) | Stainless Steel | .5-13 x 1.5 (13-330 x 38) | Heavy duty | 1700-42 |
| 5 | 4 (102) | 1.125 (29) | Urethane | Self Lube | .375 (10) | 275 (125) | 5.0625 (129) | Stainless Steel | Plate | Medium duty Swivel | 1701-42 |
| 6 | 4 (102) | 1.125 (29) | Urethane | Self Lube | .375 (10) | 275 (125) | 5.0625 (129) | Stainless Steel | Plate | Medium duty Fixed | 1701-43 |
| 7 | 4 (102) | 1.125 (29) | Urethane | Self Lube | .375 (10) | 275 (125) | 5.0625 (129) | Stainless Steel | Plate | Medium duty Swivel | 1701-41 |
| 8 | 6 (152) | 1.25 (32) | Urethane | Stainless Steel | .375 (10) | 300 (136) | 7.25 (184) | Stainless Steel | Plate | Heavy duty | 6704-08 |
| 9 | 4 (102) | .9375 (24) | Rubber | Self Lube | .9375 (24) | 115 (52) | 5.15625 (131) | Zinc | .5-13 x 1.5 (13-330 x 38) | Medium duty | 1700-16 |
| 10 | 4 (102) | .9375 (24) | Rubber | Self Lube | .9375 (24) | 115 (52) | 5.15625 (131) | Zinc | .5-13 x 1.5 (13-330 x 38) | Medium duty | 1700-17 |
| 11 | 5 (127) | 1.25 (32) | Urethane | Stainless Steel | 1.25 (32) | 250 (113) | 6.25 (159) | Zinc | Expanding | Heavy duty | 1701-37 |
