Product Details
  • Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8

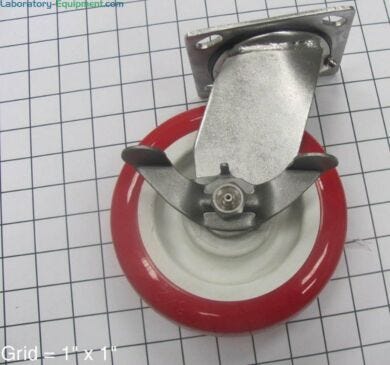

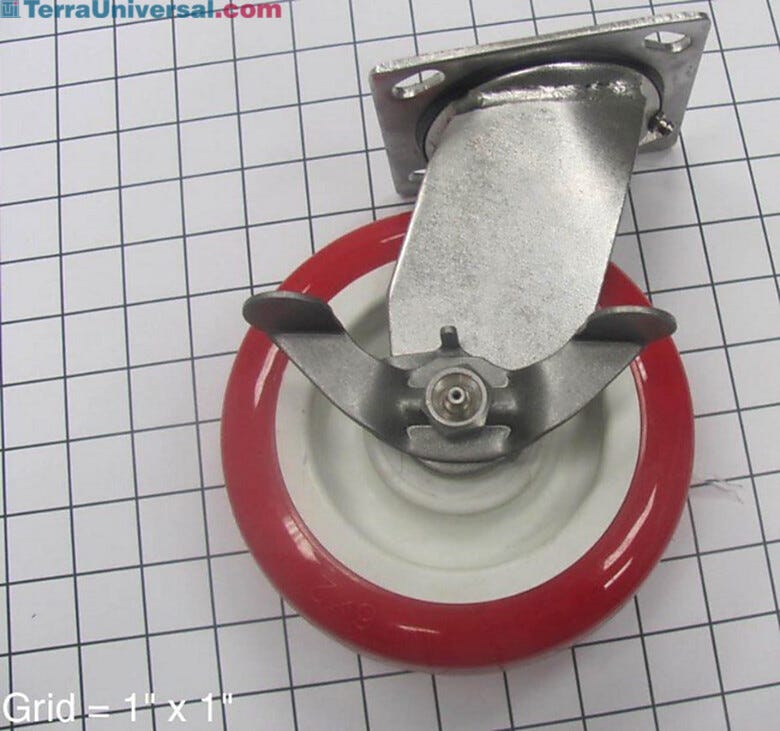

  • Dimensions: 6" ( 152 mm) diameter swivel caster raises cleanroom 7-3/16" ( 183 mm)
  • Material: Stainless steel caster w/nonshedding polyurethane wheels
  • Capacity: 300 lbs.  Each ( 136 kg.)
  • Order one per vertical post
  • Price includes installation
  • Casters are intended to allow movement only on smooth floors and require that personnel support each cleanroom upright during motion.

• Accessories: Casters

• Wheel Diameter: 6"

• Caster Load Rating: 300 lbs.

• Caster Finish: Stainless Steel

• Brakes: Brake

• Caster Type: Plate, heavy duty

• Wheel Material: NonShedding Polyurethane

• Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8

• Certified ISO Grade Design: ISO 6

• Unit of Measure: EA

• Electrical Specifications: None

• Weight, Product: 4 lb

• Weight, Shipping: 5 lb

• Package Type: Box

Features and Benefits

Casters

Casters

Application Key
Figure Application
1, 2 Recommended for use on stands used for desiccators, glove boxes, computer cart, reticle and screen frame storage cabinets.
3, 4 Stainless steel finish and Bakelite® wheels make these ideal for ultra-clean applications, including Terra's Stainless Steel Desiccators
5, 6 Standard plate casters used on Terra's acid and chemical carts.
7 Similar to type 5 above, but without brakes.
8 Used on Terra's Softwall Cleanrooms (one required for each support post).
11 Standard caster used on Terra's heavy-duty PureFlow Mobile Storage Systems.
Casters for all Terra Product Carts and Stands (All dimensions are inches)
Fig. Dia. in. (mm) Tread Width in. (mm) Wheel Material Bearing Axle in. (mm) Load Capacity lbs. (kg) Overall Height in. (mm) Finish Stem in. (mm) Type Cat. #
1 3 (76) 1.25 (32) Hard Rubber Sintered .375 (10) 210 (95) 3.9375 (100) Bright Zinc .5-13 x 1.5 (13-330 x 38) Heavy duty Low Profile 1700-18
2 3 (76) 1.25 (32) Hard Rubber Sintered .375 (10) 210 (95) 3.9375 (100) Bright Zinc .5-13 x 1.5 (13-330 x 38) Heavy duty Low Profile 1700-40
3 4 (102) 1.5 (38) Bakelite Stainless Steel .375 (10) 300 (136) 5.0625 (129) Stainless Steel .5-13 x 1.5 (13-330 x 38) Heavy duty 1700-41
4 4 (102) 1.5 (38) Bakelite Stainless Steel .375 (10) 300 (136) 5.0625 (129) Stainless Steel .5-13 x 1.5 (13-330 x 38) Heavy duty 1700-42
5 4 (102) 1.125 (29) Urethane Self Lube .375 (10) 275 (125) 5.0625 (129) Stainless Steel Plate Medium duty Swivel 1701-42
6 4 (102) 1.125 (29) Urethane Self Lube .375 (10) 275 (125) 5.0625 (129) Stainless Steel Plate Medium duty Fixed 1701-43
7 4 (102) 1.125 (29) Urethane Self Lube .375 (10) 275 (125) 5.0625 (129) Stainless Steel Plate Medium duty Swivel 1701-41
8 6 (152) 1.25 (32) Urethane Stainless Steel .375 (10) 300 (136) 7.25 (184) Stainless Steel Plate Heavy duty 6704-08
9 4 (102) .9375 (24) Rubber Self Lube .9375 (24) 115 (52) 5.15625 (131) Zinc .5-13 x 1.5 (13-330 x 38) Medium duty 1700-16
10 4 (102) .9375 (24) Rubber Self Lube .9375 (24) 115 (52) 5.15625 (131) Zinc .5-13 x 1.5 (13-330 x 38) Medium duty 1700-17
11 5 (127) 1.25 (32) Urethane Stainless Steel 1.25 (32) 250 (113) 6.25 (159) Zinc Expanding Heavy duty 1701-37
