Select Product
Voltage

Type

Controls

Maximum Temperature

Minimum Temperature

Manufacturer SKU

Terra Part # Price Ships in
120 V Programmable Digital 100°C -10°C 1 IC25 5005-02 45723 $1,156 5-7 Days 2
Ships Free Free shipping in contiguous USA In stock
120 V Programmable Digital 100°C -20°C 1 IC25XT 5005-03 45724 $1,351 5-7 Days 3
Ships Free Free shipping in contiguous USA In stock
Voltage
Type
Controls
Maximum Temperature
Minimum Temperature
Block Positions
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary

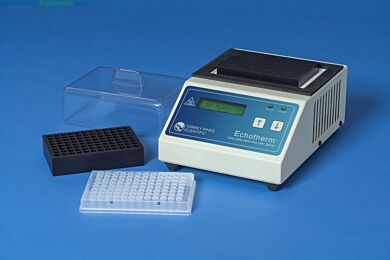

Product Details
Product Details
  • Up to 5 temperature/time profiles can be programmed into the unit, as many as 10 steps each, with the ability to continuously loop the program
  • Resolution of 1°C, temperature range from -10°C to 100°C (-20°C to 100°C on the XT model)
  • Two-line, alphanumeric display and touchpad arrows control all functions and settings, including programming steps
  • Units are factory calibrated and can be recalibrated in the field
  • Built-in timer can be set to shut off the unit upon completion
  • Data-logging function records actual plate temperature at intervals of 1 second, 1 minute, or 5 minutes
  • RS232 I/O port allows connection to a PC terminal for serial command control (ASCII) or downloading collected data
  • “Buffer” light flashes when collecting a data point and glows solid when the data-logger reaches capacity
  • Universal 12VDC power supply can be connected to any suitable source, including the one found in your vehicle
  • Optional aluminum blocks are black anodized for better heat transfer and protection from spills, with the bottoms of the blocks machined to “nest” onto the plate to prevent movement
  • Applications: Initiating or halting reactions through temperature changes; preventing denaturation of enzymes; storing reagents at safe temperatures near the workspace; eliminating the need for ice buckets
