6601-64
Terra Part # 6601-64
$225
Usually ships in 10-16 business days

Want it faster ? Read about FasTrak

Terra Part # 6601-64
78198
$225
Usually ships in 10-16 business days

Want it faster ? Read about FasTrak

Product Details
  • •  Available ISO Ratings: ISO 5, ISO 6, ISO 7, ISO 8

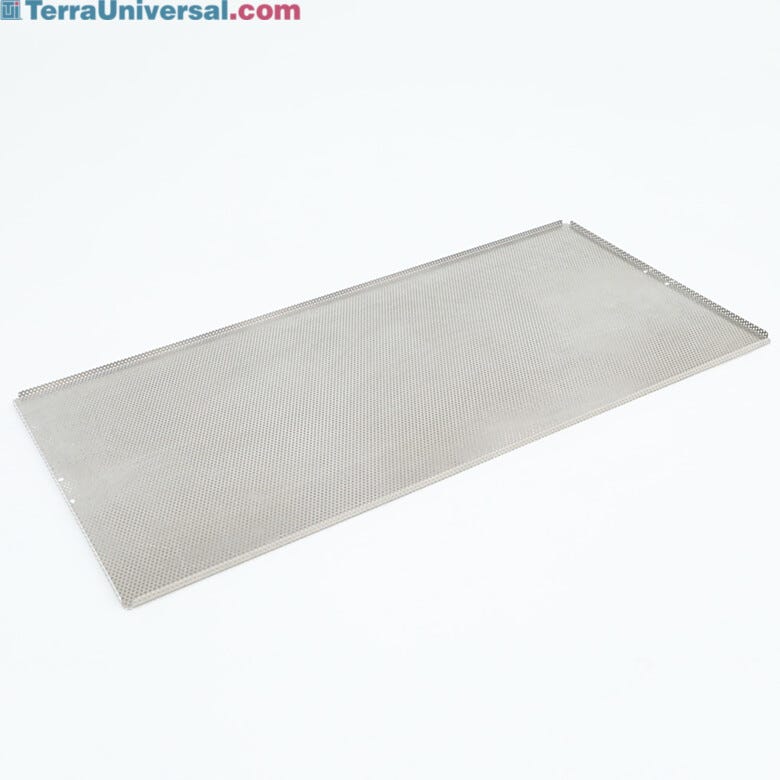

  • Perforated stainless steel screen protects the FFU's sensitive filter media from damage
  • Heavy-duty and chemical resistant 12-gauge 304 stainless steel withstands frequent sterilization

• Manufactured by: Terra Universal

• Unit of Measure: EA

• Dimensions, Product: 45.812" W x 21.875" D

Manuals & Resources

Fan Filter Units

  • Terra Universal WhisperFlow® Filter Fan Units Terra Universal WhisperFlow® Filter Fan Units
Terra Universal WhisperFlow® Filter Fan Units

Features and Benefits

Diffuser Panel Promotes Air Flow Uniformity and Protects Filter Integrity

Unlike other manufacturers, Terra’s FFUs include a unique perforated panel beneath the filter, acting as a shower head, to guarantee filter protection and laminar air flow uniformity, which prevents localized air swirling, particle build-up and turbulence.

Gel-Filled Channel on Room-Side Replaceable Filter

Gel-filled channel on room-side replaceable filter forms a tight seal against knife edge on fan housing, allowing fast, simple filter replacement from inside the cleanroom without the need for costly cleanroom shut-down.

Protect Against Contaminants and Pathogens

HEPA and ULPA filters help capture many bacteria, viruses (COVID-19), and mold spores that contribute to a host of infections for both humans and plant/animal tissue cultures

Airflow Uniformity Improves Laminar Flow

Non-uniform air speeds produce turbulence that can recirculate particles into the air stream. Unique WhisperFlow® FFU baffling system and anodized diffuser plate promotes uniform laminar airflow to minimize turbulence and effectively carry away contaminating particles.

Room-Side Replaceable HEPA Filter Simplifies Maintenance

Room-side-replaceable HEPA filters drastically simplify filter replacement to keep your cleanroom operations running smoothly. The ceiling mounted FFU features easy-open clips allowing for filter replacement from within the airlock, without dismantling the entire FFU.

Full Range of Designs, Configurations!

WhisperFlow FFUs come in all styles: room-side replaceable, all-stainless steel, HEPA or ULPA filtration, EC energy-saving fans, reverse flow and more (shown: vapor filtration module with UV sanitation lamp).

WhisperFlow Quiet Operation Reduces Distracting Background Noise

Exposure to loud noises can lower the ability to focus on work and listen selectively, which may also lead to safety issues. Typical AC units can be annoyingly loud, measuring in the range of 70 dB (comparable to a vacuum cleaner). Terra’s WhisperFlow design produces far lower noise levels for a quiet environment comparable to a library. At 90 ft/min output, units measure under 50 dB from only 1 ft away (roughly 75% quieter than 70dB).

Products Compliant With Your ISO Rating

High-capacity, durable, ISO-compliant system rated for thousands of operating hours.
