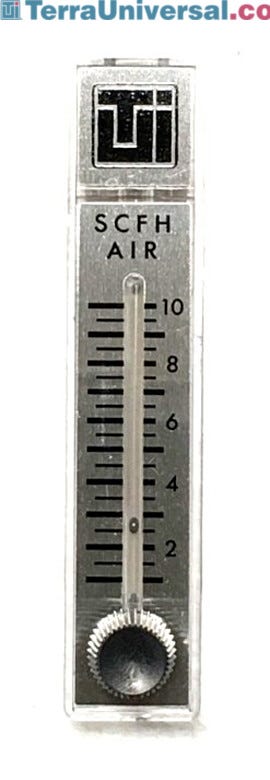

Terra Part # 1600-40
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

In stock
Terra Part # 1600-40
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

In stock
Product Details
  • Available ISO Ratings: ISO 8
  • Scale length: 2"
  • Accuracy: + or – 4% of full scale
  • Connections: 1/8" female NPT inlet and outlet
  • Pressure rating: 100 psi/6.9 bar
  • Temperature rating: 54 degrees C/130 degrees F
  • Wetted materials: Body: polycarbonate; O-ring: Buna-N and neoprene; metal parts: stainless steel or brass (for models with brass valve); float (varies by range): black glass, nickel/copper alloy, stainless steel, or tungsten carbide
  • Dimensions (H x W x D): 12.22 x 2.54 x 3.02 mm/4-13/16 x 1 x 1-3/16 inches
  • Weight: 113.4 g/4 oz.

Accessories: Flowmeter

Available ISO Ratings: ISO 8

ISO Class: ISO 8

Unit of Measure: EA

Electrical Specifications: None

Dimensions, Product: 1" W x 0.5" D x 2" H

Weight, Shipping: 4 lb

Dimensions, Shipping: 1" W x 0.5" D x 2" H

Package Type: Box

Features and Benefits

Products Compliant With Your ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.

On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
