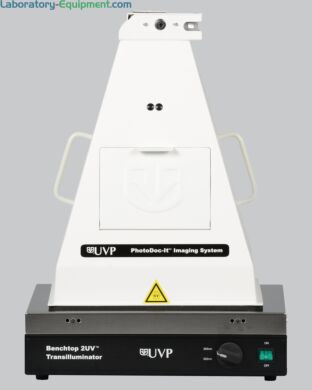

Gel Imaging System; DNA Gels,115 V, PhotoDoc-It
Product Details
  • Designed for basic gel documentation, unit is a low cost alternative to Polaroid cameras
  • Transilluminator Wavelength (nm): 302nm UV
  • Transilluminator Filters: 20x20 cm
  • Includes: Transilluminator, DigiCam 70, color printer, hood enclosure, EtBr filter and lock
  • Includes hood, camera, transilluminator and printer
  • Hood Dimensions : 13.25 x 9.5 x 18 in. (337 x 241 x 432 mm)
  • Transilluminator Dimensions: 14 x 11 x 4.8 in. (356 x 279 x 122 mm)
  • Printer Dimensions: 7 x 5 x 2.5 in. (178 x 127 x 64 mm)
  • Camera Power Supply: Included
  • Camera Interface: USB
  • Printer Resolution: 300 x 300 resolution
  • Connectivity: USB
  • Print Size: 4" x 6"
  • Emission Filters: EtBr Red 570-640nm
  • Transilluminator: 8-watt compact Benchtop UV Transilluminator for selection of longwave, midrange and shortwave, improves gel visualization and gel documentation, increases ultraviolet output and intensity, eliminates light flicker, wide intensity range, fast lamp start up, saves energy, longer tube life, lightweight, includes adjustable hinged, clear UV blocking cover
  • Main Features
  • DigiCam 70 color camera with 4GB minimum SD memory card and includes power cord
  • 16 megapixel resolution
  • Compact darkroom environment with UV blocking viewer window and handles for easy transport fits on top of transilluminator
  • Included Benchtop UV Transilluminator provides back-lit UV
  • Included color printer generates instant 4” x 6” economical lab quality color prints with 300 x 300 resolution
  • Easily interchangeable Ethidium bromide filter inside hood for fluorescent stained gels
  • Combination lock has a 3-digit resettable combination and a 2 ft. cable
  • Instantly print or save images to memory card (4GM minimum)
  • Camera can be connected to a PV
  • Applications: Fluorescent gels, colorimetric (with optional white light plate)

Type: DNA Gels

Compatible Stains: UV Stains

Feature Pack: Feature Pack 4

Camera Included: Yes

Printer Included: Yes

Wavelength: 302 nm

Filter Size: 20" x 20"

Transilluminator Included: Yes

Manufacturer SKU: 97-0274-04

Unit of Measure: EA

Electrical Specifications: 115 V, 1 Ph, 60 Hz

Weight, Product: 30 lb

Dimensions, Product: 13.25" W x 9.5" D x 18" H

Weight, Shipping: 33 lb

Dimensions, Shipping: 20" W x 16" D x 24" H

Package Type: Box

Buy Accessories
  1. Paper/Ink Kit; 108 Prints, PhotoDoc-It Imaging System, Analytik Jena
    Paper/Ink Kit; 108 Prints, PhotoDoc-It Imaging System, Analytik Jena Ships Free Free shipping in contiguous USA In stock
    Increase Down Increase Up
  2. Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Features and Benefits

Learn More: PhotoDoc-It Imager

Features of Transilluminator

  • Included Benchtop UV Transilluminator (on select models) provides back-lit UV
  • Included color printer generates instant 4” x 6” economical lab quality color prints with 300 x 300 resolution
  • Filter size (cm): 20 x 20 and 21 x 26
  • 8-watt models are a low cost alternative to the High Performance UV Transilluminators
  • Selection of 365nm, 302nm and 254nm UV Wavelength
  • Increases ultraviolet output and intensity
  • No light flicker, longer tube life and lightweight
  • Wider intensity range with variable selection (select models)
  • Fast lamp start-up and universal power supply
  • Reduced electrical consumption
  • Improves gel visualization and gel documentation
  • Hinged, adjustable clear UV blocking cover, included with each transilluminator
Converter Plates expand the capabilities of PhotoDoc-It capabilities by converting standard 302 nm UV wavelength to white, blue, or long wavelength UV light.
  • Also compatible with BioDoc-It2, MultiDoc-It and DigiDoc-It Imaging Systems
  • Choose White Light, Visi-Blue and UV to UV converter plates
  • Two filter sizes available
  • Three wavelength filters meet a myriad of applications
  • Scratch-resistant plastic material is mounted in a housing for durability
  • Handles on both sides for easy handling
List of Gel Tools: Gel-Cutter, Gel-Ruler, Gel-Scooper, Small Gel-Tray, Large Gel-Tray and Gel-Tool Kit
Hood Dimensions 13.25 x 9.5 x 18 in. (337 x 241 x 432 mm)
Electrical 115 volts, 60 Hz
Transilluminator Dimensions 14 x 4.5 x 11 in. (356 x 114 x 279 mm)
Printer Dimensions 7 x 5 x 2.5 in. (178 x 127 x 64 mm)
Camera DigiCam 70 color
Imaging Resolution 16 Megapixels
Camera Power Supply Included
Camera Interface USB
Transilluminator Filters 20x20cm or 21x26cm
Printer Resolution 300 x 300 resolution
Connectivity USB
Print Size 4" x 6"
Emission Filters EtBr Red 570-640nm
