Grid System Guide

Grid System

Grid system includes a responsive, mobile first grid system that appropriately scales up to 12 columns as the device or viewport size increases. It includes predefined classed for easy layout options

Grid systems are used for creating page layouts through a series of rows and columns that house your content. Here's how the grid system works:

Use rows .row to create horizontal groups of columns.
Predefined grid classes like .row and .col-sm-4are available for quickly making grid layouts.
Grid columns are created by specifying the number of twelve available columns you wish to span. For example, three equal columns would use three divtag with class .col-sm-4
Grid class apply tho device with screen widths greater than or equal to the breakpoint size and override grid class targeted at smaller devices.

Look to the examples for applying these principles to your code.

Grid Option

We use the following breakpoints in our CSS files to create the key breakpoints in our grid system.

Portrait Phones screen-width <480px
Landscape Phones screen-width >=480px
Small devices (tablets) screen-width >=768px
Medium/Large devices (desktops) screen-width >=1024px

Please see how aspects of the grid system work across multiple devices with a handy table.

	Portrait Phones Portrait Phones (<480px)	Landscape Phones Landscape Phones (>=480px)	Small devices Tablets (>=768px)	Medium/Large devices Desktops (>=1024px)
Grid Behavior	Horizontal at all times	Collapsed to start, horizontal above breakpoints
Class prefix	`.col-*`	`.col-sm-*`	`.col-md-*`	`.col-lg-*`

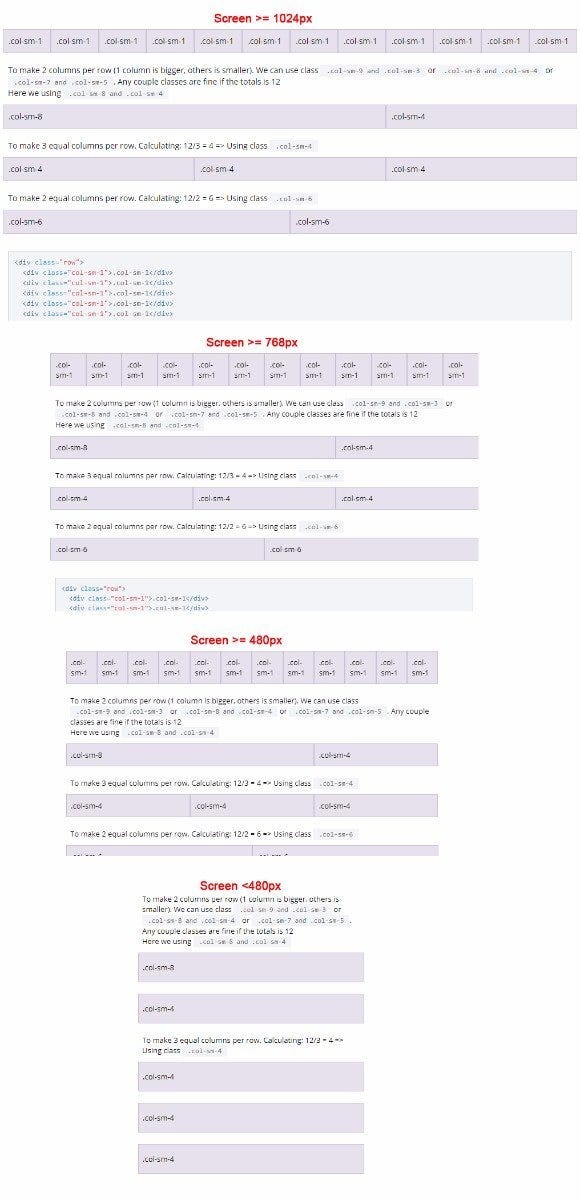

Example: Stacked-to-horizontal

Using a single set of .col-sm-* grid classes, you can create a basic grid system that starts out stacked on portrait mobile devices before becoming horizontal on landscape mobile, tablet and desktop devices (>= 480px). Place grid columns in any .row.

Totals columns is defined on grid system is 12.

Class .col-sm-* implement on screen >= 480px.

To make 12 equal columns per row. Calculating: 12/12 = 1 => Using class .col-sm-1

.col-sm-1

To make 2 columns per row (1 column is bigger, others is smaller). We can use class .col-sm-9 and .col-sm-3 or .col-sm-8 and .col-sm-4 or .col-sm-7 and .col-sm-5. Any couple classes are fine if the totals is 12.

Here we using .col-sm-8 and .col-sm-4

.col-sm-8

.col-sm-4

To make 3 equal columns per row. Calculating: 12/3 = 4 => Using class .col-sm-4

.col-sm-4

To make 2 equal columns per row. Calculating: 12/2 = 6 => Using class .col-sm-6

.col-sm-6

HTML Code:

<div class="row">
  <div class="col-sm-1">.col-sm-1</div>
  <div class="col-sm-1">.col-sm-1</div>
  <div class="col-sm-1">.col-sm-1</div>
  <div class="col-sm-1">.col-sm-1</div>
  <div class="col-sm-1">.col-sm-1</div>
  <div class="col-sm-1">.col-sm-1</div>
  <div class="col-sm-1">.col-sm-1</div>
  <div class="col-sm-1">.col-sm-1</div>
  <div class="col-sm-1">.col-sm-1</div>
  <div class="col-sm-1">.col-sm-1</div>
  <div class="col-sm-1">.col-sm-1</div>
  <div class="col-sm-1">.col-sm-1</div>
</div>
<div class="row">
  <div class="col-sm-8">.col-sm-8</div>
  <div class="col-sm-4">.col-sm-4</div>
</div>
<div class="row">
  <div class="col-sm-4">.col-sm-4</div>
  <div class="col-sm-4">.col-sm-4</div>
  <div class="col-sm-4">.col-sm-4</div>
</div>
<div class="row">
  <div class="col-sm-6">.col-sm-6</div>
  <div class="col-sm-6">.col-sm-6</div>
</div>

The result show here:

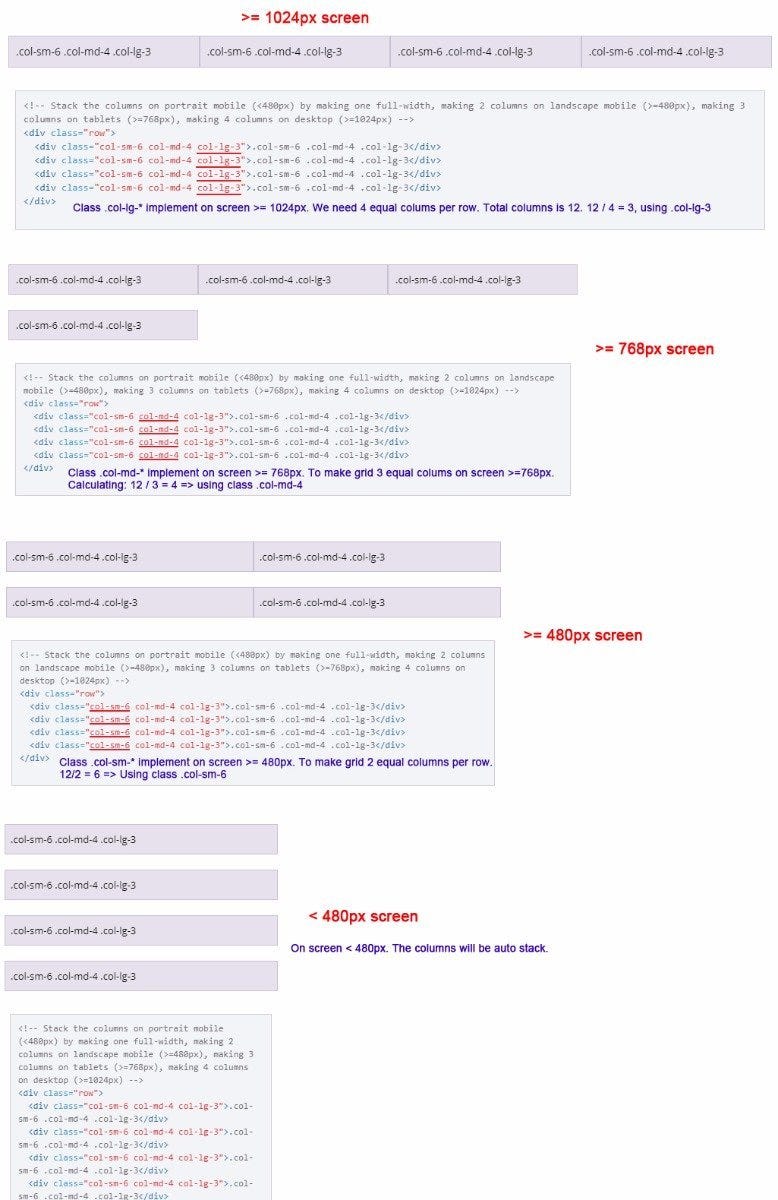

Example: Mobile, Tablet, Desktop

Don't want your columns to simply stack in smaller devices? Use the extra medium and large device grid classes by adding .col-md-* .col-lg-* to your columns. See the example below for a better idea of how it all works.

Create the grid show dynamic columns with each breakpoints:

Making 4 columns when screen width >= 1024px.
Making 3 columns when screen width >= 768px
Making 2 columns when screen width >= 480px
Stacked the columns by making one full-width when screen width < 480px

.col-sm-6 .col-md-4 .col-lg-3

<!-- Stack the columns on portrait mobile (<480px) by making one full-width, making 2 columns on landscape mobile (>=480px), making 3 columns on tablets (>=768px), making 4 columns on desktop (>=1024px) -->
<div class="row">
  <div class="col-sm-6 col-md-4 col-lg-3">.col-sm-6 .col-md-4 .col-lg-3</div>
  <div class="col-sm-6 col-md-4 col-lg-3">.col-sm-6 .col-md-4 .col-lg-3</div>
  <div class="col-sm-6 col-md-4 col-lg-3">.col-sm-6 .col-md-4 .col-lg-3</div>
  <div class="col-sm-6 col-md-4 col-lg-3">.col-sm-6 .col-md-4 .col-lg-3</div>
</div>

The result show here:

Example: Mobile and Desktop

Build on the previous example by creating even more dynamic and powerful layouts.

.col-6 .col-lg-4

.col-6 .col-lg-8

.col-6 .col-lg-4

.col-6


	<!-- Columns start at 50% wide on mobile and bump up to 33.3% wide on desktop -->
<div class="row">
  <div class="col-6 col-lg-4">.col-6 .col-lg-4</div>
  <div class="col-6 col-lg-4">.col-6 .col-lg-4</div>
  <div class="col-6 col-lg-4">.col-6 .col-lg-4</div>
</div>

	<!-- Columns start at 50% wide on mobile and bump up to 66.6% and 33.3% wide on desktop -->
<div class="row">
  <div class="col-6 col-lg-8">.col-6 .col-lg-8</div>
  <div class="col-6 col-lg-4">.col-6 .col-lg-4</div>
</div>

<!-- Columns are always 50% wide, on mobile and desktop -->
<div class="row">
  <div class="col-6">.col-6</div>
  <div class="col-6">.col-6</div>
</div>

Three equal columns

Get three equal-width columns starting at tablets and scaling to desktops. On mobile devices and below, the columns will automatically stack.

.col-md-4

Three unequal columns

Get three columns starting at desktops and scaling to large desktops of various widths. Remember, grid columns should add up to twelve for a single horizontal block. More than that, and columns start stacking no matter the viewport.

.col-lg-3

.col-lg-6

.col-lg-3

Two columns

Get two columns starting at tablets and scaling to desktops.

.col-md-8

.col-md-4

Mixed: mobile and desktop

.col-12 .col-lg-8

.col-6 .col-lg-4

Mixed: mobile, tablet, and desktop

.col-12 .col-sm-6 .col-lg-8

.col-6 .col-lg-4

.col-6 .col-sm-4

Align Items

.align-flex-center

To make columns content to justify center. Using class .align-flex-center on .row

Example:

.col-6 .col-sm-4

Centrifuges are used in pharmaceutical, biology, microbiology, manufacturing and research labs to separate and isolate suspensions, gas and immiscible liquids.

.col-6 .col-sm-4

Centrifuges can be categorized as ventilated or refrigerated centrifuges.

.col-6 .col-sm-4

Centrifuges are used in pharmaceutical, biology, microbiology, manufacturing and research labs to separate and isolate suspensions, gas and immiscible liquids. The rotating action of the centrifuge chamber creates the separation as lighter particles migrate toward the axis of centrifugal rotation while more dense particles migrate away.


	<!-- Make text on 3 columns to justify center -->
<div class="row align-flex-center">
  <div class="col-6 col-sm-4">.col-6 .col-sm-4</div>
  <div class="col-6 col-sm-4">.col-6 .col-sm-4</div>
  <div class="col-6 col-sm-4">.col-6 .col-sm-4</div>
</div>

.align-flex-end

To make columns content to justify bottom. Using class .align-flex-end on .row

Example:

.col-6 .col-sm-4

Centrifuges are used in pharmaceutical, biology, microbiology, manufacturing and research labs to separate and isolate suspensions, gas and immiscible liquids.

.col-6 .col-sm-4

Centrifuges can be categorized as ventilated or refrigerated centrifuges.

.col-6 .col-sm-4


	<!-- Make text on 3 columns to justify bottom -->
<div class="row align-flex-end">
  <div class="col-6 col-sm-4">.col-6 .col-sm-4</div>
  <div class="col-6 col-sm-4">.col-6 .col-sm-4</div>
  <div class="col-6 col-sm-4">.col-6 .col-sm-4</div>
</div>
