6707-18A
Terra Part # 6707-18A
$3,153
Usually ships in 10-16 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 6707-18A
75919

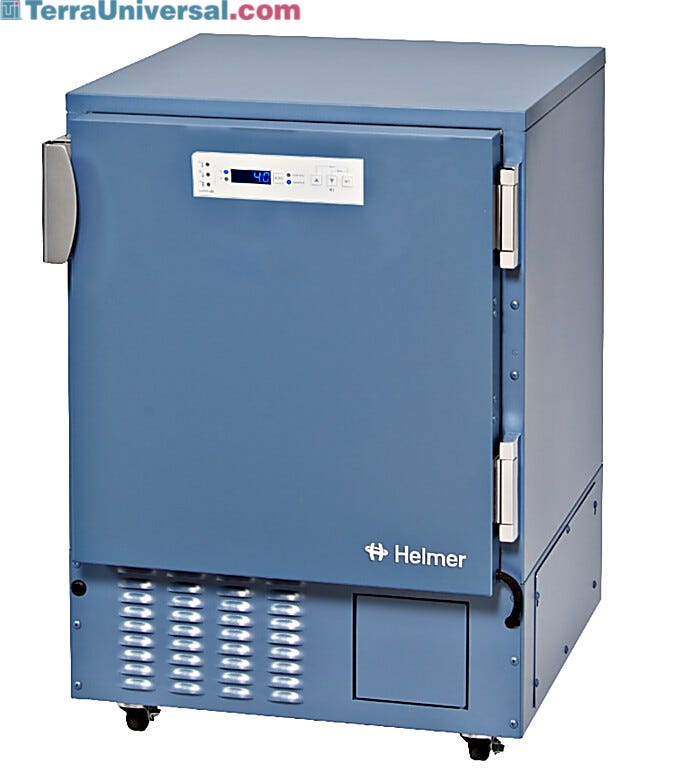

HLR105-GX Horizon Medical Grade ADA Undercounter Lab Refrigerator by Helmer Scientific, 5.3 cu. ft., 4°C Setpoint, Solid Door, 115 V, 5113105-1
  • ADA Compliant HLR105-GX Horizon Medical Grade Undercounter Refrigerator with solid door and OptiCool system
  • ENERGYSTAR certified 5.3 cu. ft. (150L) model with OptiCool system and a 4ºC setpoint for laboratory applications
  • Horizon Digital Microprocessor: LED display, touchpad entry, built-in alarm
  • ADA Compliant Features: fits under standard 34” high ADA compliant countertop and ADA compliant full-length handle
  • Includes: two ventilated shelves (Optional: casters and leveling feet)
  • OptiCool System features a variable capacity compressor (VCC) and natural hydrocarbon (HC) refrigerants to create a refrigerator with optimized control in temperature, noise and energy management
  • Medical-grade features: temperature management safeguards samples, low noise level and energy-efficiency helps reduce cost and sustains energy initiatives
  • High-Performance GX Horizon Undercounter Features: ºC or ºF temperature display, lockable door, manual alarm test, battery backup (9V, non-rechargeable, lithium), min/max temperatures (display and reset), standard alarm (high/low temperature, door open and power failure)
  • Refrigeration:
  • VCC compressor-based, forced-air hydrocarbon
  • Compressor: Hermetic, variable speed (VCC). Rated speed range: 1300-4000 rpm
  • Condenser Type: Air-cooled fan and tube, sealed
  • Cap tube expansion device
  • Evaporator Type: Direct expansion forced-air fin and tube
  • Supports sustainability with U.S. EPA, SNAP, and EU F-Gas compliant natural refrigerants and foaming agents
  • Automatic defrost method
  • Refrigerant: R600a, Isobutane, EPA SNAP compliant
  • Additional Features:
  • Stores clinical samples, reagents and lab media
  • Optimized temperature control
  • Adjustable Shelves: two ventilated, powder-coated shelves
  • Up to 50% to 55%  energy-efficient and low noise
  • No defrost cycle required to maintain constant temperature
  • Forced air circulation maintains chamber temperature uniformity and quick recovery after door openings
  • Material: bacteria-resistant powder coated interior and exterior
  • Easy-to-clean recessed floors contains spills and helps maintain product integrity115 V
  • Power-plug: NEMA 5-15 hospital-grade | 115 V 60 Hz, 8 to 10 ft. (2.4-3.0m)
  • Access port: Rear Access Port- for external monitoring probe(s) (0.75 in | 19 mm diameter)
  • Specifications:
  • Interior dimensions: 19.5" W x 19.75" D x 22" H
  • Door: right hinged solid (optional: glass and left-hinged configuration)
  • Temperature Range: 2° to 10°C
  • Setpoint: 4°C
  • Uniformity: +/-1.0
  • Recovery to 8°C after 3 min door opening | min: 9
  • Stability °C: 0.82
  • Energy Consumption | kWh/day: 1.2
  • Noise Level: 42 dB
  • Heat rejection/emission | BTU/hr.: 460
  • Pull-down time to 4®C | min: 36
  • Certification/Agency Listing:
  • QPS (Certified to UL and CSA Standards)
  • IEC/UL61010-2-01: 2016 | IEC 61010-1:2010, AMD1:2016
  • Option: ETL certified to NSF/ANSI 456 Vaccine Storage Standard* (must be configured with NSF/ANSI 456 Vaccine Storage
  • Certification option
  • Ambient Operating Temperature:+15°C to +32°C |+59°F to +90°F
  • Options:
  • Stacking kit, Integrated access control, Stainless steel exterior/interior, Chart recorder, Chart paper,
  • Swivel/Locking casters, Solid ballast, Remote alarms, Remote lock adapter kit, Floor and
  • Wall bracket kit, Pedestal, Storage trays, LED light, Locking drawer, Left-hinge door,
  • Glass door, NSF/ANSI 456 Vaccine Storage Certification (includes Certificate of calibration),
  • Temperature validation, Validation guide (IQ/OQ), Certificate of calibration, Extended warranty

Manufacturer SKU: 5113105-1

Capacity: 5.3 cu. ft.

Configuration: Undercounter

Brand: Horizon Series-GX

Plug Type: US Plug

Specialty: Laboratory

Type: Refrigerator

Internal Dimensions: 19.5" W x 19.75" D x 22" H

Door Style: Single Solid

Refrigerator Temperature Range: 2° to 10°C

Set Point Temperature: 4°C

Unit of Measure: EA

Marks & Listings: UL, CSA, ADA

Electrical Specifications: 115 V, 60 Hz

Weight, Product: 185 lb

Dimensions, Product: 24" W x 26.7" D x 31.5" H

Weight, Shipping: 251 lb

Dimensions, Shipping: 30" W x 40" D x 34" H

Buy Accessories
  1. Stainless Steel and powder-coated steel stands adjust to fit cabinets, desiccators and cleanroom equipment of any size. | 1609-20 displayed
    $578
    Increase Down Increase Up
  2. Small 4"H stainless steel desiccator stand; optional casters simplify positioning and cleaning
    $578
    Increase Down Increase Up

Refrigerators (4°C)

  • Video of GX Solutions by Helmer Scientific Video of GX Solutions by Helmer Scientific
  • GX Horizon and GX i.Series Comparison Chart by Helmer Scientific GX Horizon and GX i.Series Comparison Chart by Helmer Scientific
Video of GX Solutions by Helmer Scientific

Features and Benefits

OptiCool Technology

GX i.Series and Horizon Refrigerators with OptiCool deliver a quiet and energy-efficient unit with optimal temperature control

Microprocessor Temperature Control

GX Horizon cold-storage solutions feature a microprocessor temperature control with a built-in alarm, an LED display and a touchpad entry
