9602-03A
Terra Part # 9602-03A
$8,100
Usually ships in 25-31 business days

Want it faster ? Read about FasTrak

Terra Part # 9602-03A
25798
$8,100
Usually ships in 25-31 business days

Want it faster ? Read about FasTrak

Product Details
  • Available ISO Ratings: ISO 6, ISO 7, ISO 8

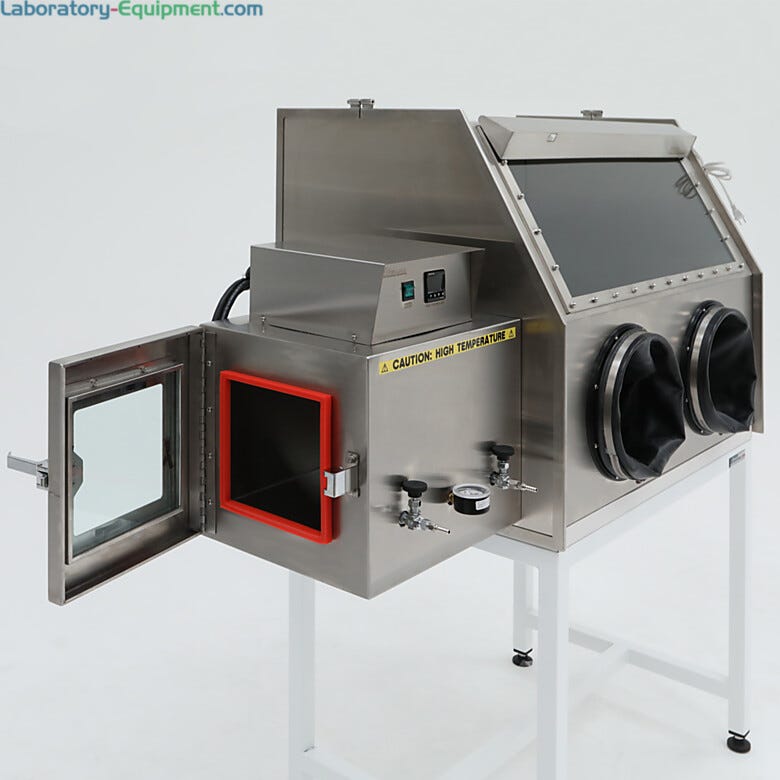

  • Integrated vacuum oven helps remove moisture from materials prior to transfering into glovebox
  • Mini antechamber oven is available in two configurations depending on max temp and load capacity
  • Designed to allow for easy attachment to the side of Terra stainless steel gas-purge glovebox
  • Inside dimensions: 8"W x 16"D x 8"H (203 mm x 406 mm x 203 mm)
  • Includes a 30" (762 mm) vacuum gauge and all necessary vacuum ports
  • Available only at standard size specified above – due to limitation on gasket seals, Terra cannot customize
  • This chamber to meet other dimensional requirements.
  • Vacuum range: Atmosphere to 10 microns Hg, with adequate pump
  • Temperature range: 10°C to 149°C
  • Requires no exterior support
  • Modular pass-through design allows easy attachment to Series 300 Chamber (can be customized to fit other chambers)
  • Uncrated weight: 54 lbs.  (24 kg.)

Material: Stainless Steel

Mounting Side: Left

Unit of Measure: EA

Electrical Specifications: 120 V, 4 A, 1 Ph, 50/60 Hz

Weight, Product: 54 lb

Dimensions, Product: 12" W x 11.25" D x 7" H

Weight, Shipping: 193 lb

Dimensions, Shipping: 15" W x 14" D x 10" H

Package Type: Crate

Features and Benefits

>

Products Compliant With Your ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.
>

Don't Budge on Your Budget, Save on High-Quality ValuLine Products

Compromising on quality goods with costs can be tiring. Here at Terra, the compromise is over with our wide range of ValuLine products. From cleanrooms to glove boxes, ValuLine products come with a premium quality without sacrificing an affordable price.

On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
