6927-17
Terra Part # 6927-17
$1,177
Usually ships in 10-14 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 6927-17
64004

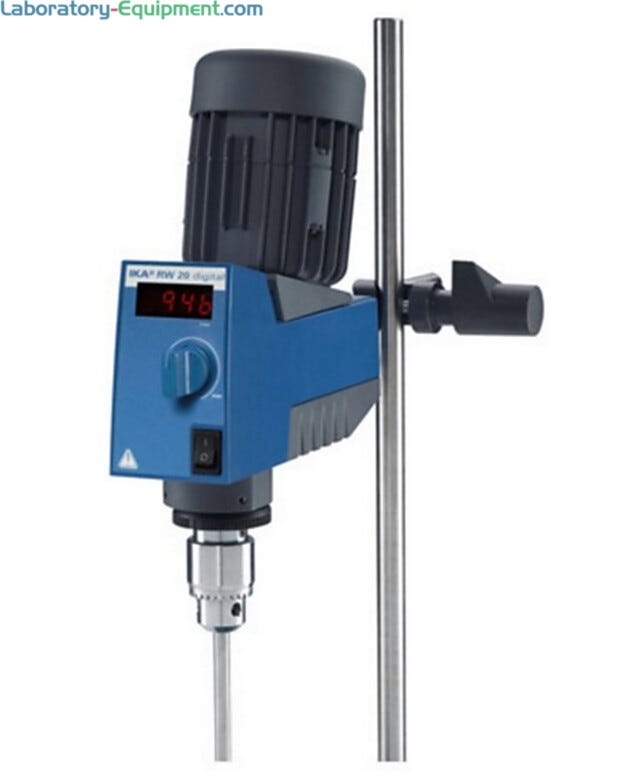

Overhead Stirrer; RW 20, Digital, 120 V
Product Details
  • Stirring quantity max.  (H2O): 20 l
  • Motor rating input: 85 W
  • Motor rating output: 35 W
  • Speed display: LED
  • Speed range: 60 - 2000 rpm
  • Viscosity max.: 10000 mPas
  • Output max.  At stirring shaft: 26 W
  • Torque max.  At stirring shaft: 150 Ncm
  • Torque max.  At stirring shaft at 60 1/min (overload): 300 Ncm
  • Torque max.  At stirring shaft at 100 1/min: 150 Ncm
  • Torque max.  At stirring shaft at 1.000 1/min: 24 Ncm
  • Speed range I (60 Hz): 72 - 600 rpm
  • Speed range II (60 Hz): 288 - 2400 rpm
  • Speed control: stepless
  • Stirring element fastening: chuck
  • Temperature display: no
  • Extension arm diameter: 13 mm
  • Extension arm length: 160 mm
  • Torque display: no
  • Nominal torque: 1.5 Nm
  • Timer: no
  • RS 232 interface: no
  • USB interface: no
  • Analog output: no
  • Two-speed mechanical motor for a wide range of liquid viscosities
  • Adjustable speed range from 60-2,000 rpm
  • Push-through agitator shafts when device is stationary
  • Constant power-drive and digital LED speed display
  • Slim-line, ergonomic and robust design
  • Overhead Stirring Elements sold separately
  • Two-Year Manufacturer Warranty; plus One-Year Warranty after product registration

• Maximum Speed: 2000 rpm

• Maximum Viscosity: 10000 mPas

• Application: General Purpose

• Controls: Digital

• Model: RW 20

• Capacity: 20 L

• Reversible Stirring: No

• Wireless Controller: No

• Manufacturer SKU: 3593001

• Shaft Length: [xxx] mm

• Immersion Depth: [xxx] mm

• Unit of Measure: EA

• Electrical Specifications: 120 V, 1 A, 200 W, 1 Ph, 50/60 Hz

• Weight, Product: 6.8 lb

• Dimensions, Product: 3.5" W x 8.4" D x 11.6" H

• Weight, Shipping: 10 lb

• Dimensions, Shipping: 6" W x 11" D x 13" H

• Package Type: Box

Buy Accessories

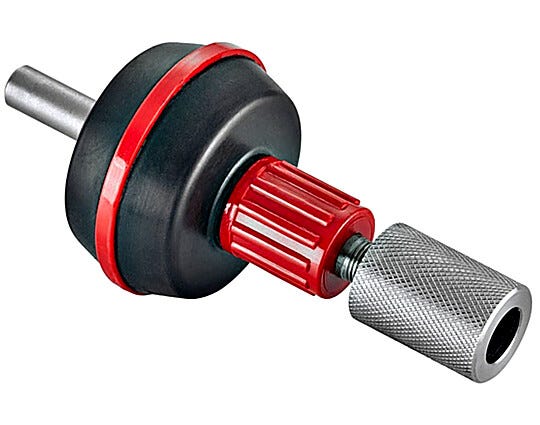

  1. IKA FK 1 Flexible coupling required for stirring applications using glass stirring rods; compatible with EUROSTAR and RW Series Overhead Stirrers   |  6926-21 displayed
    FK 1 Flexible coupling Ships Free Free shipping in contiguous USA In stock
    $560
    Increase Down Increase Up

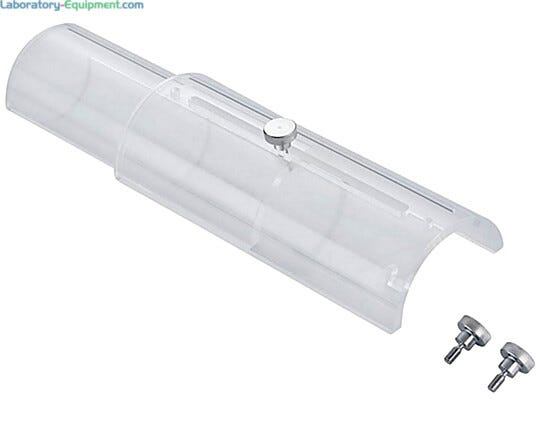

  2. Prevents potential injuries when using rotating shafts and stirring elements  |  6926-23 displayed
    R 301 Stirring shaft protection Ships Free Free shipping in contiguous USA In stock
    $353
    Increase Down Increase Up

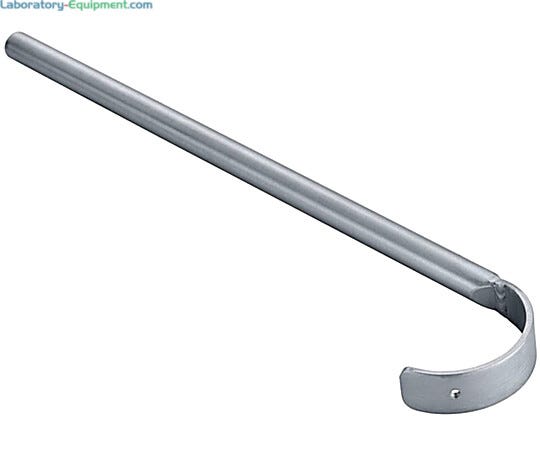

  3. Use when securing R 301 to EUROSTAR 20 digital Overhead Stirrer  |  6926-24 displayed
    R 301.1 Support holder Ships Free Free shipping in contiguous USA In stock
    $431
    Increase Down Increase Up
  4. Plate Stand, R 1825, 560 mm height
    Plate Stand, R 1825, 560 mm height Ships Free Free shipping in contiguous USA In stock
    $308
    Increase Down Increase Up
  5. Plate Stand, R 1826, 800 mm height
    Plate Stand, R 1826, 800 mm height Ships Free Free shipping in contiguous USA In stock
    $347
    Increase Down Increase Up
  6.  |  6924-86 displayed
    Plate Stand, R 1827, 1000 mm height Ships Free Free shipping in contiguous USA In stock
    $360
    Increase Down Increase Up
  7. For affixing dispersion unit to plate stand  |  6924-87 displayed
    R 182 Boss head clamp Ships Free Free shipping in contiguous USA In stock
    $65
    Increase Down Increase Up
  8. Secures vessel against wall during dispersion  |  6924-88 displayed
    RH 3 Strap Clamp Ships Free Free shipping in contiguous USA In stock
    $108
    Increase Down Increase Up
