Terra Part # 6927-19
$4,928
Usually ships in 10-14 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 6927-19
64006

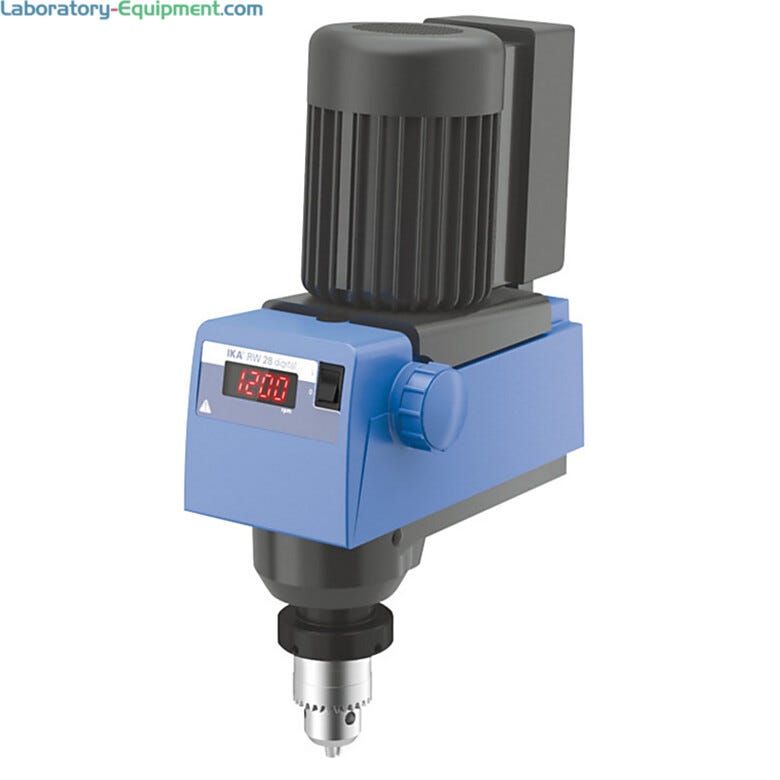

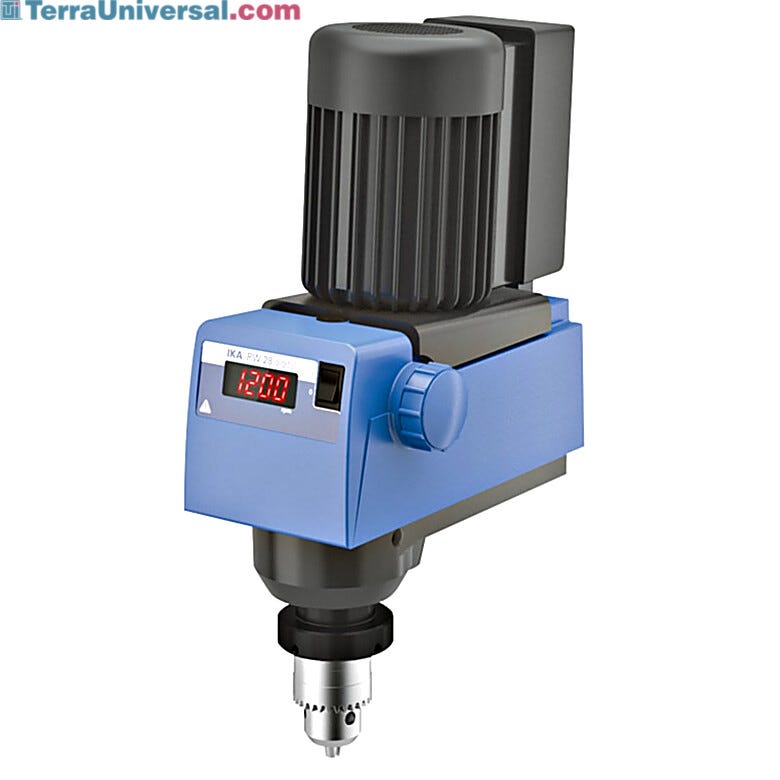

Overhead Stirrer; RW 28, Digital, 120 V

• Stirring quantity max. (H2O): 80 l

• Motor rating input: 220 W

• Motor rating output: 94 W

• Speed display: LED

• Speed range: 60 - 1400 rpm

• Viscosity max: 50000 mPas

• Output max. At stirring shaft: 90 W

• Torque max. At stirring shaft: 900 Ncm

• Torque max. At stirring shaft at 60 1/min (overload): 1144 Ncm

• Torque max. At stirring shaft at 100 1/min: 900 Ncm

• Torque max. At stirring shaft at 1.000 1/min: 86 Ncm

• Torque I max.: 900 Ncm

• Torque II max.: 300 Ncm

• Speed range I (60 Hz): 72 - 480 rpm

• Speed range II (60 Hz): 288 - 1680 rpm

• Speed control: stepless

• Setting accuracy speed: 1 ±rpm

• Deviation of speed measurement: 10 ±rpm

• Stirring element fastening: chuck

• Torque display: no

• Nominal torque: 9 Nm

• Noise without element: 62.5 dB(A)

• Not available with: RS 232 and USB interface, analog output


• Digital speed display

• Infinitely adjustable speed with two speed ranges

• Push-through agitator shafts

• Motor overload protection for increased safety

• Self-locking temperature limiter

• Error code display; robust and ergonomic design

• Quiet operation

• Constant power-drive

Maximum Speed: 1400 rpm

Maximum Viscosity: 5000 mPas

Application: General Purpose

Controls: Digital

Model: RW 28

Capacity: 80 L

Reversible Stirring: No

Wireless Controller: No

Manufacturer SKU: 5040001

Shaft Length: [xxx] mm

Immersion Depth: [xxx] mm

Unit of Measure: EA

Electrical Specifications: 120 V, 200 W, 1 Ph, 60 Hz

Weight, Product: 16.5 lb

Dimensions, Product: 4.8" W x 9.9" D x 14.3" H

Weight, Shipping: 24 lb

Dimensions, Shipping: 8" W x 12" D x 16" H

Buy Accessories

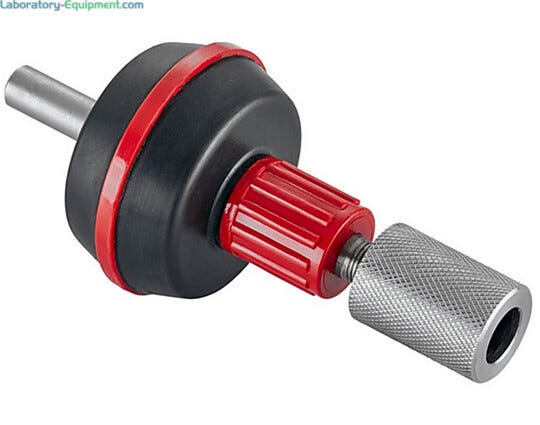

  1. IKA FK 1 Flexible coupling required for stirring applications using glass stirring rods; compatible with EUROSTAR and RW Series Overhead Stirrers | 6926-21 displayed
    FK 1 Flexible coupling Stocked Item is in stock and ready for immediate shipping
    $360
    Increase Down Increase Up
  2. Prevents potential injuries when using rotating shafts and stirring elements | 6926-23 displayed
    R 301 Stirring shaft protection Stocked Item is in stock and ready for immediate shipping
    $228
    Increase Down Increase Up
  3. Use when securing R 301 to EUROSTAR 20 digital Overhead Stirrer | 6926-24 displayed
    R 301.1 Support holder Stocked Item is in stock and ready for immediate shipping
    $277
    Increase Down Increase Up
  4. H-shaped base prevents tipping and is ideal for larger, heavier units | 6925-25 displayed
    H-Stand, R 2722 Stocked Item is in stock and ready for immediate shipping
    $449
    Increase Down Increase Up
  5. Adjustable arm height allows the unit to be used with a variety of sample containers | 6925-26 displayed
    Telescopic stand, R 2723 Stocked Item is in stock and ready for immediate shipping
    $482
    Increase Down Increase Up
  6. Attaches disperser to base stand | 6925-27 displayed
    Boss head clamp, R 271 Stocked Item is in stock and ready for immediate shipping
    $68
    Increase Down Increase Up
  7. Secures vessel during operation | 6925-28 displayed
    Strap clamp, RH 5 Stocked Item is in stock and ready for immediate shipping
    $170
    Increase Down Increase Up
