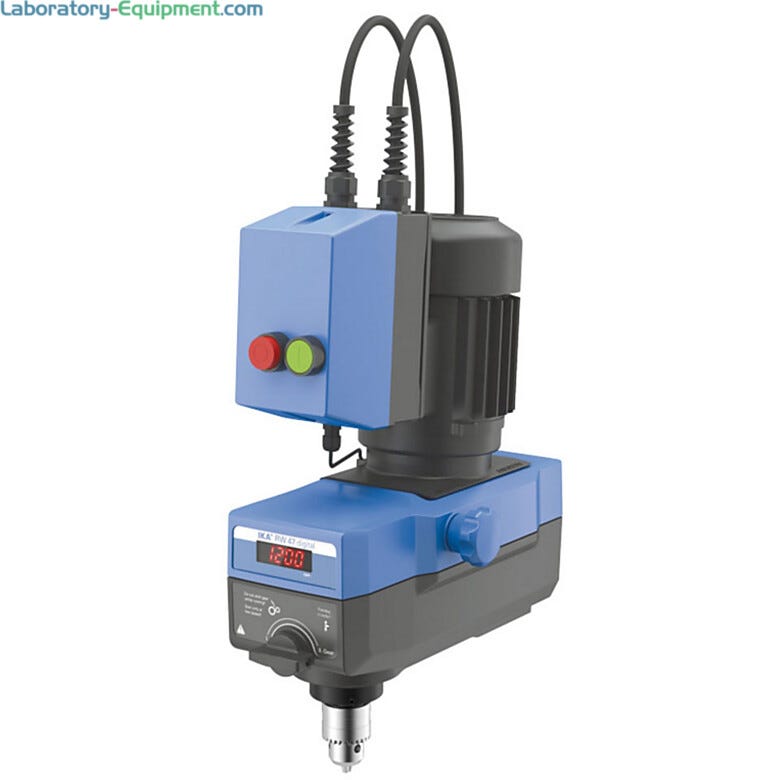

Terra Part # 6927-23
$8,539
Usually ships in 10-16 business days

Want it faster ? Read about FasTrak

• Stirring quantity max. (H2O): 200 l

• Material: Alu-casting coating/thermoplastic polymer

• Motor rating input/output: 490 W/370 W

• Motor principle: three-phase current

• Speed display: LED

• Speed range: 69 - 1560 rpm

• Viscosity max.: 100,000 mPas

• Permissible ON time: 100%

• Output max. At stirring shaft: 300 W

• Torque max. At stirring shaft: 3000 Ncm

• Torque max. At stirring shaft at 60 1/min (overload): 4642 Ncm

• Torque max. At stirring shaft at 100 1/min: 3000 Ncm

• Torque max. At stirring shaft at 1.000 1/min: 285 Ncm

• Torque I max.: 3000 Ncm

• Torque II max.: 620 Ncm

• Speed range I (60 Hz): 69 - 330 rpm

• Speed range II (60 Hz): 330 - 1560 rpm

• Speed control: stepless

• Setting accuracy speed: 1 ±rpm

• Deviation of speed measurement: 10 ±rpm

• Stirring element fastening: chuck

• Chuck range min/max diameter: 3/16 mm

• Hollow shaft, inner diameter: 13 mm

• Hollow shaft (push-through when stopped): no

• Fastening on stand: flange

• Torque display: no

• Nominal torque: 30 Nm

• Permissible ambient temperature: 5 - 40 °C

• Permissible relative humidity: 80 %

• Protection class according to DIN EN 60529: IP 54

• Designed for high volume operations

• Digital speed display

• Infinitely adjustable speed with two speed ranges

• Processing of liquids with viscosities up to 100,000 mPas

• Motor overload protection for increased safety

• Error code display for easy troubleshooting

• Quiet operation

• Constant power-drive

• Not available with RS 232 and USB interface

• DEMO AVAILABLE – Schedule a demonstration unit at your facility for no or low cost excluding freight. Please contact Evan Messenger at 714-578-6124 ([email protected])

Dimensions, Product: 5.7" W x 14.1" D x 18.3" H

Maximum Speed: 1560 rpm

Maximum Viscosity: 100000 mPas

Electrical Specifications: 230 V, 60 Hz

Weight, Product: 35.3 lb

Weight, Shipping: 45 lb

Dimensions, Shipping: 6" W x 12" D x 15" H

Package Type: Box

Unit of Measure: EA

Features and Benefits

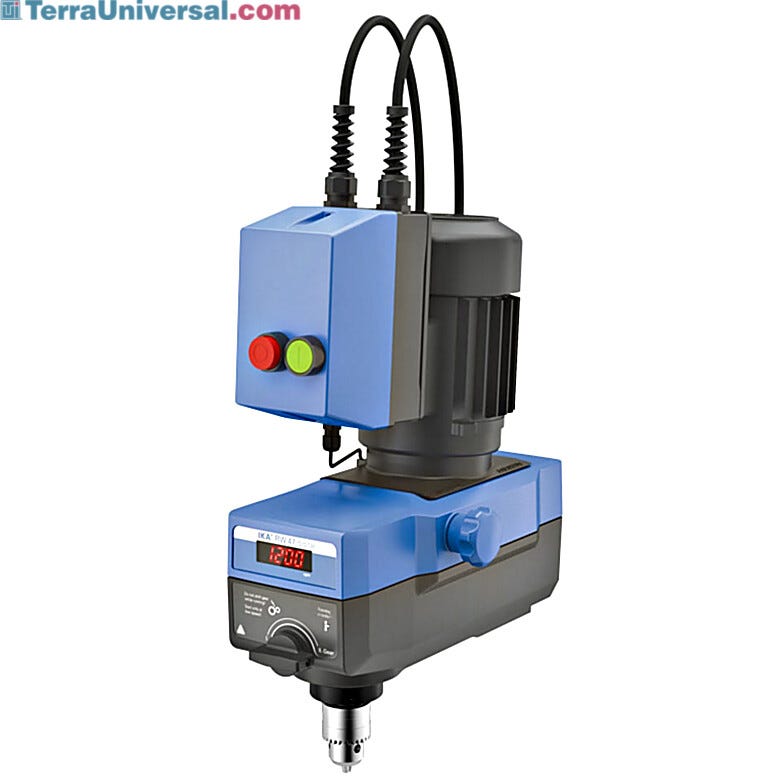

RW 47 Specifications

More Information

Stirring quantity max. (H2O)200 L
Motor rating input490 W
Motor rating output370 W
Motor principleThree-phase current
Speed displayLED
Speed range69 - 1560 rpm
Viscosity max.100000 mPas
Output max. at stirring shaft300 W
Torque max. at stirring shaft3000 Ncm
Torque max. at stirring shaft
at 60 1/min (overload)
4642 Ncm
Torque max. at stirring shaft
at 100 1/min
3000 Ncm
Torque max. at stirring shaft
at 1.000 1/min
285 Ncm
Torque I max.3000 Ncm
Torque II max.620 Ncm
Speed range I (60 Hz)69 - 330 rpm
Speed range II (60 Hz)330 - 1560 rpm
Speed controlStep-less
Setting accuracy speed±1 rpm
Deviation of speed measurement±10 rpm
Torque displayNo
Nominal torque30 Nm
Dimensions (W x H x D)5.7 x 18.3 x 14.1 in (145 x 465 x 358 mm)
Weight35.3 lbs. (16 kg)
Voltage3 x 400 / 3 x 230 V
Frequency60 Hz
Power input490 W
