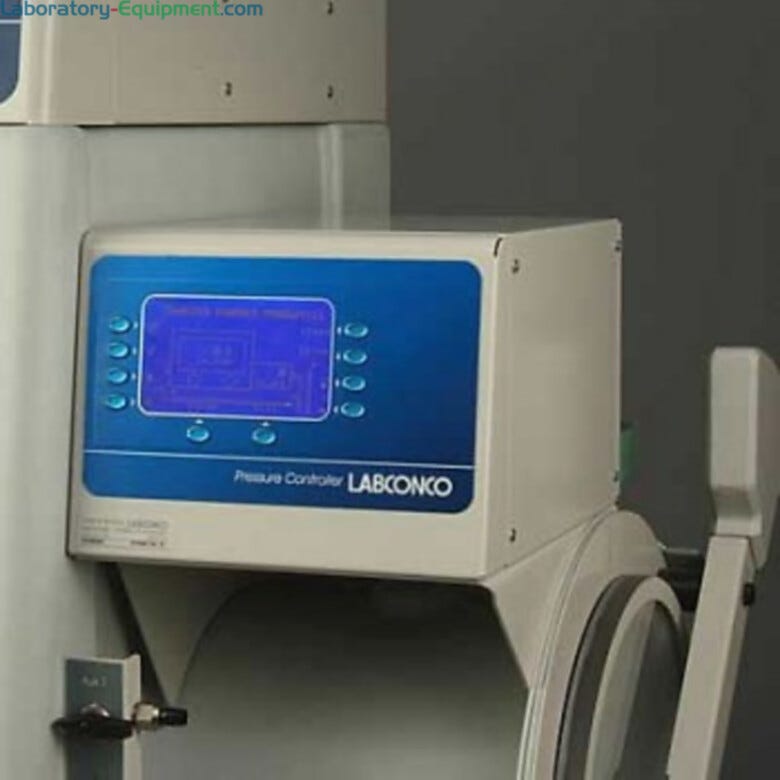

  • A mutable, audible alarm sounds when pressure/vacuum level is outside set limits

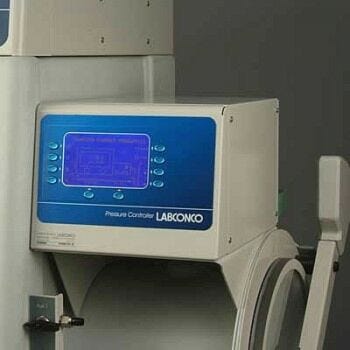

  • Epoxy-coated steel casing with a front panel LCD display and a rear panel with power switch, power inlet connection with circuit breakers, electrical receptacle for connection to vacuum pump (sold separately), electrical connection for foot pedal, two solenoid valves for controlling gas in and gas/vacuum out to transfer chamber, and two solenoid valves for controlling gas in and gas/vacuum out to main chamber
  • Unit of measure display options are inches of water, inches of mercury, and mBar
  • Designed for mounting atop the transfer chamber exterior
  • Include mounting bracket, hardware, 3/16” ID (5 mm) polyvinyl tubing, 3/32” ID (2 mm) polyvinyl tubing, and power cord with plug
  • Requires Installation; must be ordered together with affected glove box.
  • For automatic control of the main chamber pressure (-5 to +5 inches of water gauge), main chamber purging and filling cycles (up to 199 cycles), and transfer chamber purging and filling cycles (up to 199 cycles)
  • Regulates vacuum/pressure between -5 and +5 inches of water gauge in the main chamber and between 0 and -29 inches of mercury in the transfer chamber
  • A three-position foot pedal (increase gas/fill, off, purge/decrease gas) provides hands-free control of the gas inlet and vacuum outlet valves

Manufacturer SKU: 5238601

Unit of Measure: EA

Weight, Product: 28 lb

Weight, Shipping: 33 lb

Dimensions, Shipping: 17" W x 21" D x 18" H

Package Type: Box
