Terra Part # 5607-18
Request Quote
Usually ships in 22-28 business days

Want it faster ? Read about FasTrak

• Meets all requirements for USP 797 compliance

• Unit Dimensions without Stand: 50”W X 27”D X 57 ½”H (1270 x 686 x 1460.5 mm) Unit Weight: 2700 lbs. (1225 kg)

• Provides ISO Class 5/Class 100 HEPA filtered unidirectional (laminar) vertical airflow

• Material: 100% Stainless Steel with pharmaceutical grade finish

• Includes 37" tall all-welded stainless steel stand

• For sale in the U.S. only

• Continuously bathes the work area with positive pressure ISO Class 5/Class 100 HEPA filtered air and negative inward airflow to protect product from contamination and promote user safety from hazardous samples

• Lead Shielding: 2” thick lead-lined dose calibrator housing; dose calibrator monitor arm; lead on sides, back and bottom (3/4” thick); 37” tall all-welded heavy duty stainless steel stand; sliding leaded glass shield with 3/4" lead (13 3/4" x 20"); viewing window in shield is 8"x8"x4" with a density of 5.2g/cm3

• Provides user protection with ¾” lead shield while compounding

• 70% of air from each cycle recirculated through supply HEPA filter and remaining air discharged from hood through exhaust HEPA filter

• Performance Data: Passes Biological Tracer Containment Tests of the National Institutes of Health (NH), the National Cancer Institute (NCI) Units listed with MET Labs to comply with UL 1262

• HEPA filter life extended by high capacity motor/blower with speed control

• Easy to remove gasketed front lifting viewing panel

• Concave front panel allows operator to lean into work area

• Placement (parallel to work area and each other) of HEPA filters prevent turbulence

• Removable stainless steel filter screen and stainless steel work tray for easy clean-up and decontamination

• Externally mounted fluorescent lights minimized heat build-up

• I.V. Bar in work area includes 12 stainless steel hooks

• ON/OFF indicator switches for blower and lighting

Dimensions, Product: 50" W x 27" D x 94" H

Weight, Product: 2,700 lb

Weight, Shipping: 2,969 lb

Dimensions, Shipping: 56" W x 34" D x 100" H

Electrical Specifications: 120 V, 10 A, 1,500 W, 60 Hz

Work Area Dimensions: 48" W x 22" D x 29" H

Biosafety Class: Class II A2

Model: RADIOSAFE

Filter Stack: Single HEPA

Marks & Listings: CE, UL, USP 797

Package Type: Palletized

Unit of Measure: EA

Biosafety Cabinets

  • Germfree RADIOSAFE Radiopharmacy Hood Germfree RADIOSAFE Radiopharmacy Hood
Germfree RADIOSAFE Radiopharmacy Hood

Features and Benefits

BSCs and BSLs

Biosafety Cabinets (BSCs) and Biological Safety Levels (BSLs): Breaking Down the Differences

What is a BSL?
Biological Safety Level (BSL) is a biocontainment designation developed by the American Biological Safety Association (ABSA) to protect personnel from exposure to harmful, potentially pathogenic microbes in a research or manufacturing environment.

What differentiates BSL designations from one another?
In the United States, the Center for Disease Control specified four general Biosafety Levels, adopted from the ABSA designations. Each increasing BSL corresponds to greater risk, building upon the previous level to provide greater protection.

  • BSL-1: for work with well-characterized microbes that do not present a serious health risk, such as laboratory strains of E. coli. This designation does not require engineering controls (i.e. a biosafety cabinet) and can be carried out on the bench with minimal personal protective equipment.
  • BSL-2: for work with moderately hazardous microbes known to cause infectious diseases in humans. An example of this would be Staphylococcus aureus. This level requires the use of a biological safety cabinet with negative-pressure containment, and exhausted air must be filtered prior to release.
  • BSL-3: for work with potentially lethal microbes that are easily aerosolized, such Mycobacterium tuberculosis. This level requires restricted access to the work environment, immunization of personnel (where available), and the use of respirators. Work must be performed in a primary engineering control such as a biosafety cabinet, and air must be filtered before it can be exhausted.
  • BSL-4: for work with high-risk, airborne pathogens that frequently cause lethal infections, such as Ebola. Requires all work to be carried out in a Class III BSC. In addition, personnel must use full-body, positive-pressure cleanroom suits. All materials must be decontaminated prior to leaving the BSC.
Which BSC is appropriate to which BSL?
Biological safety cabinets were designed to provide localized protection from potentially biohazardous substances. In general, the BSL level corresponds to BSC class, indicating the BSC type most appropriate for each BSL application. The National Science Foundation designates three classes for BSCs:

  • Class I: a negative-pressure hood in which air is drawn from the room into the enclosure and subsequently exhausted after treatment with UV-C germicidal light and HEPA filtration. These enclosures protect personnel, but do not protect products within the hood.
  • Class II: protect both operator and product. These units provide a HEPA-filtered laminar flow of air to protect the product from contamination, much like a laminar flow hood. Air is then directed into negative pressure plenums where it can be re-filtered or exhausted into a ducting system. Four common types of Class II BSCs are distinguished by air velocity as well as the percentage of air that recycled versus exhausted.
    • Type A1 (formerly Type A): minimum inflow velocity of 75 ft/min. 70% of air is recirculated; 30% is ducted. The contaminated plenum is surrounded by the lab environment.
    • Type A2 (formerly Type A/B3): minimum inflow velocity of 100 ft/min., with a negative plenum surrounding the contaminated plenum. 70% of air is recirculated; 30% is ducted.
    • Types B1 and B2 have dedicated hard-ducted exhaust lines, with 70% air exhaust in Type B1 and 100% air exhaust in Type B2.

  • Class III: provide the highest level of protection when working with high-risk pathogens. These enclosures are gloveboxes with airtight seals. Operators use glove ports to manipulate materials within the enclosure, never coming into direct contact with any materials. Exhaust air is HEPA filtered and directed into a ducting system.
BSCs, BSLs, and ISO Classes
When it comes to working with hazardous or potentially infectious material, protecting personnel must be the primary concern. However, offering personnel protection does not have to come at the cost of risking product integrity. Class II BSCs provide protection to both personnel and product simultaneously. They provide an ISO class 5 clean environment for product manipulation, while ensuring that exhaust air is filtered and ducted out of the environment. Thus, a class II BSC is the ideal solution when working with moderately hazardous material and both personnel and product safety are required.

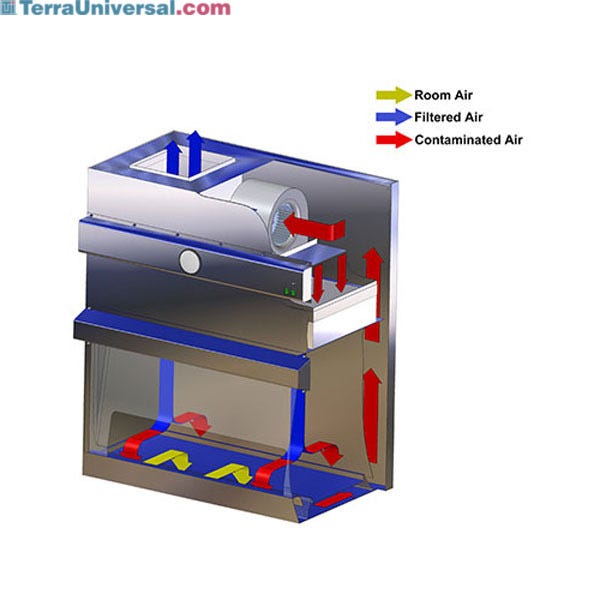

Germfree RADIOSAFE Radiopharmacy Hood Airflow Diagram

Germfree’s RADIOSAFE™ Radiopharmacy Hood operates as a Class II Type A2 biological safety cabinet for compounding radiopharmaceuticals.

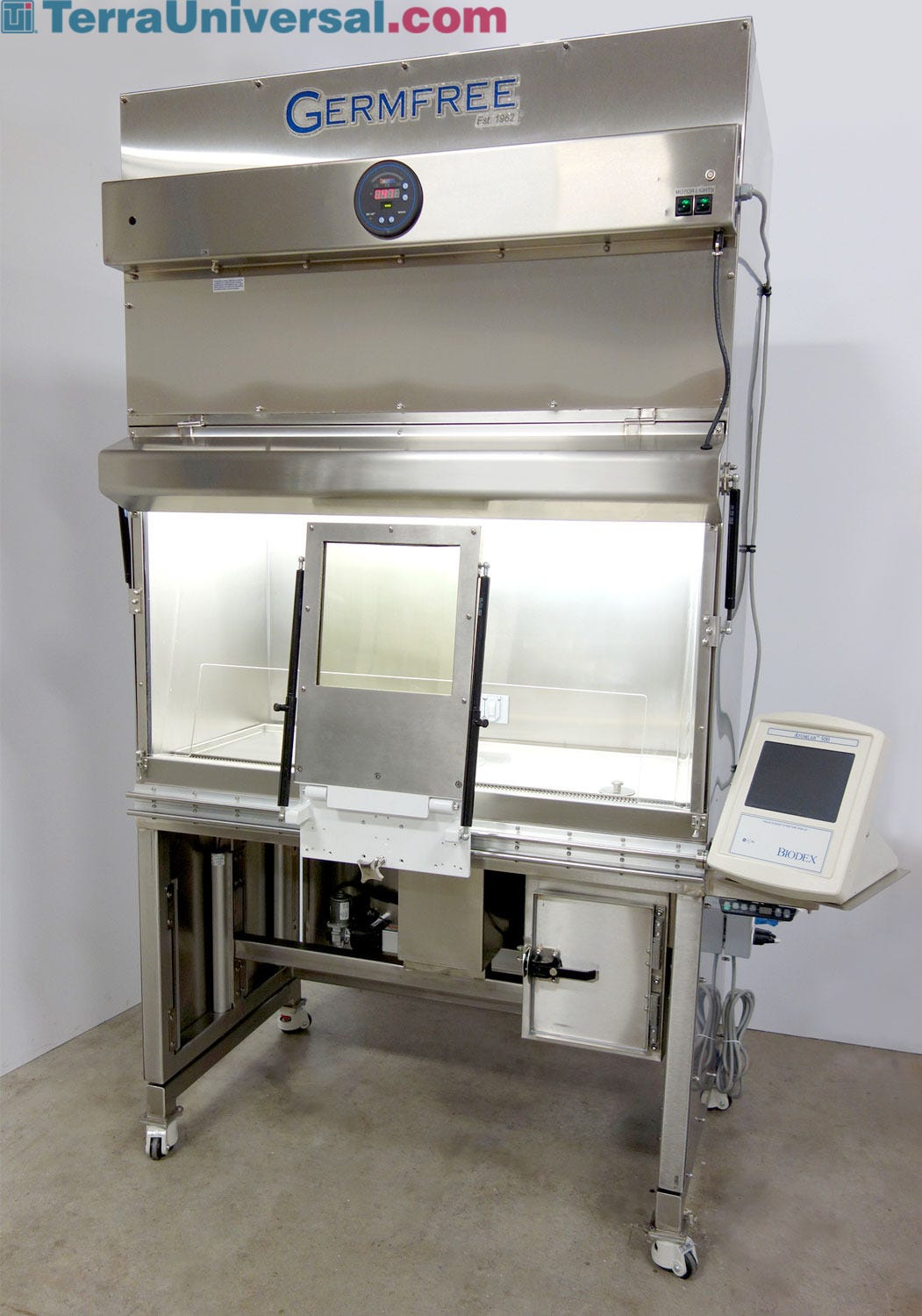

Germfree RADIOSAFE Radiopharmacy Hood

Germfree’s RADIOSAFE™ Radiopharmacy Hood operates as a Class II Type A2 biological safety cabinet for compounding radiopharmaceuticals.

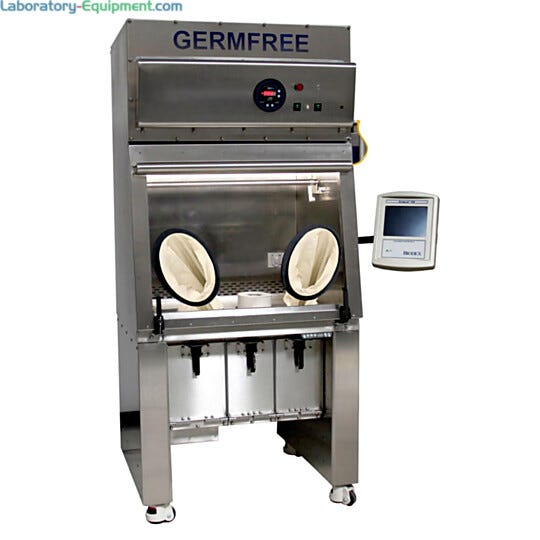

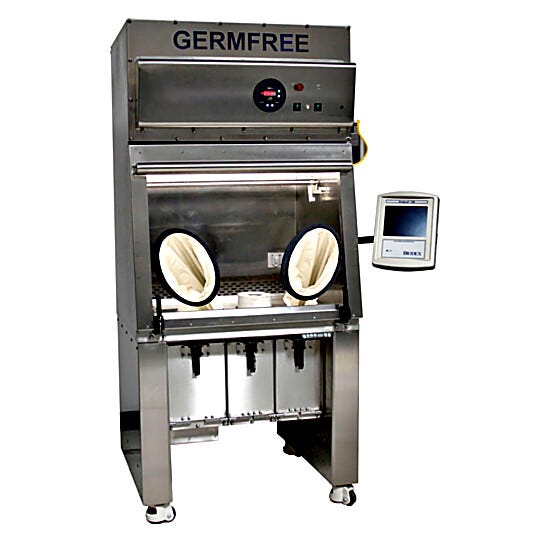

Germfree Radiopharmacy Compounding Aseptic Containment Isolator (CACI) Airflow Diagram

Germfree’s Radiopharmacy Compounding Aseptic Containment Isolators (CACIs) maintain negative pressure and include lead shielding to contain hazardous radiopharmaceuticals
