Select Product
Door Swing

Refrigerator Temperature Range

Model

Terra Part #PriceShips in
Double-Swing+2ºC to +10°CHPR125-GX / 44.9 cu. ft. 6707-15A 75938 $8,43010-16 Days2
Double-Swing+2ºC to +10°CHPR256-GX / 56.0 cu. ft. 6707-16A 75940 $8,32910-16 Days3
Right Hinge+2°C to +10°CHPR113-GX / 13.3 cu. f.t. 6707-40A 75958 $4,59010-16 Days4
Right Hinge+2°C to +10°CHPR120-GX / 20.2 cu. ft. 6707-25A 75942 $5,89610-16 Days5
Right Hinge+2°C to +10°CHPR125-GX / 25.2 cu. ft. 6707-26A 75943 $5,74010-16 Days6
Door Swing
Refrigerator Temperature Range
Model
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details

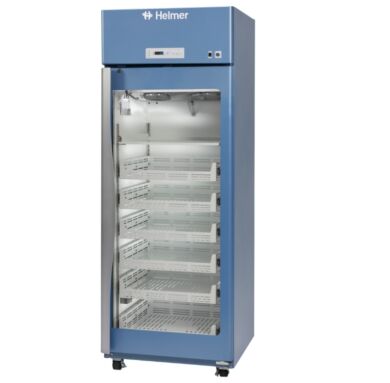

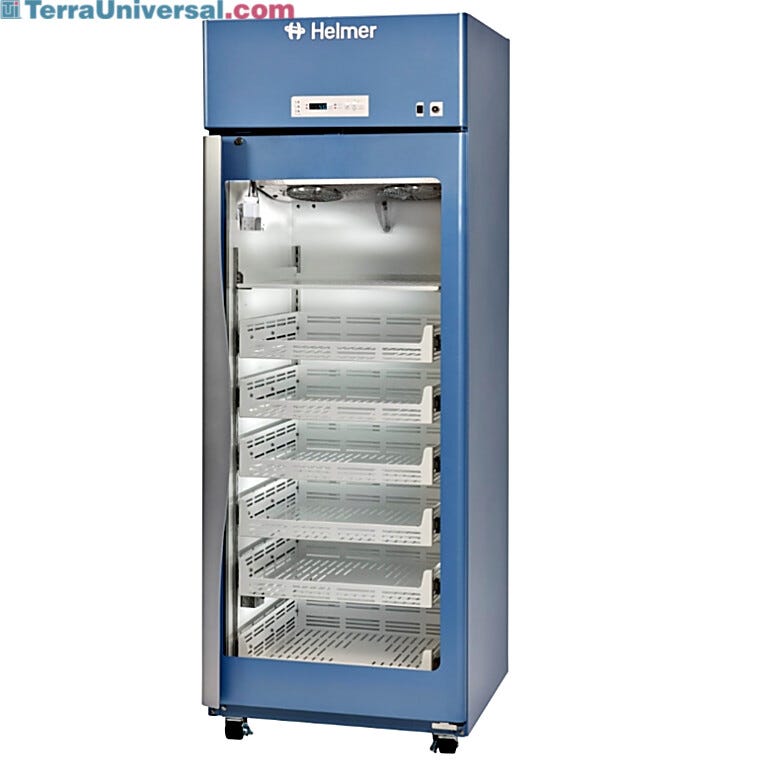

  • GX Horizon Series Medical-Grade Upright Pharmacy Refrigerators with glass doors for storage of vaccines and chemotherapy
  • NSF/ANSI 456 vaccine storage standard certified and supports CDC guidelines for vaccine storage
  • ENERGY STAR certified models feature OptiCool system, digital microprocessor controller, LED Display, ADA compliant handles and sustainable refrigerants
  • Factory pre-set to 5°C for pharmacy applications
  • Includes: swivel casters, adjustable ventilated shelves and ventilated pull-out drawers
  • Horizon Control: digital microprocessor with built-in alarms; optional integrated electromagnetic access control for secure access to refrigerator via Access Control Keypad
  • OptiCool features: variable capacity compressor (VCC) and natural hydrocarbon (HC) refrigerants optimize temperature performance, quiet operation and energy-efficiency
  • Professional medical-grade upright fridge features: temperature management protects patient samples and ensures efficacy of medication, low noise level and energy-efficiency helps reduce cost and sustains energy initiatives
  • High-Performance GX Horizon Features: ºC or ºF temperature display, key lock, manual alarm test, one stainless steel alarm probe in product simulation bottle, 2-hour battery backup (9V, non-rechargeable, lithium), dry contact alarm connection, digital calibration, min/max temperatures (display and reset), standard alarm (high/low temperature, door open and power failure)
  • Refrigeration:
  • VCC compressor-based, forced-air hydrocarbon
  • Compressor: Hermetic, variable speed (VCC). Rated speed range: 1300-4000 rpm
  • Condenser Type: Air-cooled fin and tube, sealed
  • Evaporator Type: Direct expansion forced-air fin and tube
  • Supports sustainability with U.S. EPA and SNAP compliant natural refrigerants and foaming agents
  • Refrigerant: R600a, Propane, EU F-Gas and EPA SNAP compliant
  • Automatic defrost method
  • Cap tube expansion device
  • Additional Features:
  • Forced air circulation maintains chamber temperature uniformity and quick recovery after door openings
  • 50-65% more energy efficient than traditional medical-grade models
  • Dual pane glass doors with ADA compliant handles
  • Optimized temperature control
  • No defrost cycle required to maintain constant temperature
  • Material: Glass doors, bacteria-resistant powder coated (interior, exterior, shelves and drawers), RTD stainless steel control sensor
  • Drawer design: mid-stop catch for proper closure maximizes airflow, maintains temperature uniformity and protects glass doors from slide-throughs
  • Adjustable shelf
  • Easy-to-clean recessed floors contains spills and helps maintain product integrity
  • Power-plug: NEMA 5-15 hospital-grade | 115V 60Hz, 8 to 10 ft. (2.4-3.0m)
  • Access port
  • Specifications:
  • Temperature Range: +2º to +10ºC
  • Setpoint: 5ºC
  • Uniformity: +/-1.0°C
  • Ambient Operating Temperature: +15°C to +32°C | +59°F to +90°F
  • Options and accessories: Contact a Terra Product Specialist for Details

Refrigerators (4°C)

  • Compare GX Horizon Medical-Grade Upright Pharmacy Refrigerators by Helmer Scientific Compare GX Horizon Medical-Grade Upright Pharmacy Refrigerators by Helmer Scientific
  • Comparison Chart for GX Horizon Pharmacy Refrigerators by Helmer Scientific Comparison Chart for GX Horizon Pharmacy Refrigerators by Helmer Scientific
  • GX Horizon and GX i.Series Comparison Chart by Helmer Scientific GX Horizon and GX i.Series Comparison Chart by Helmer Scientific
  • Video of GX Solutions by Helmer Scientific Video of GX Solutions by Helmer Scientific
  • GX i.Series storage solution i.C3® Video Series: Access Control by Helmer Scientific i.C3® Video Series: Access Control
  • i.C3® Video Series: Interactive Temperature Graph on GX i.Series cold storage models by Helmer Scientific i.C3® Video Series: Interactive Temperature Graph
  • i.C3 Automatic Alarm Testing by Helmer Scientific i.C3 Automatic Alarm Testing
Video of GX Solutions by Helmer Scientific
GX i.Series storage solution i.C3® Video Series: Access Control by Helmer Scientific
i.C3® Video Series: Interactive Temperature Graph on GX i.Series cold storage models by Helmer Scientific
i.C3 Automatic Alarm Testing by Helmer Scientific
Features & Benefits

Features and Benefits

Microprocessor Temperature Control

GX Horizon cold-storage solutions feature a microprocessor temperature control with a built-in alarm, an LED display and a touchpad entry

OptiCool Technology

GX i.Series and Horizon Refrigerators with OptiCool deliver a quiet and energy-efficient unit with optimal temperature control

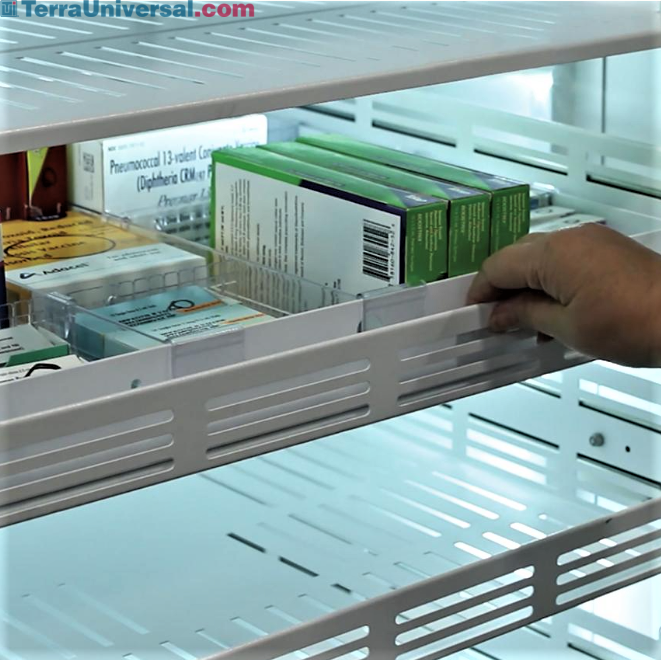

Meets Vaccine Regulations

GX Pharmacy Refrigerators help meet CDC vaccine storage regulations and USP 797 cleanroom requirements (pass-thru models) in the storage of medications and pharmaceuticals
