6707-17A
Terra Part # 6707-17A
$4,005
Usually ships in 10-16 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 6707-17A
75920

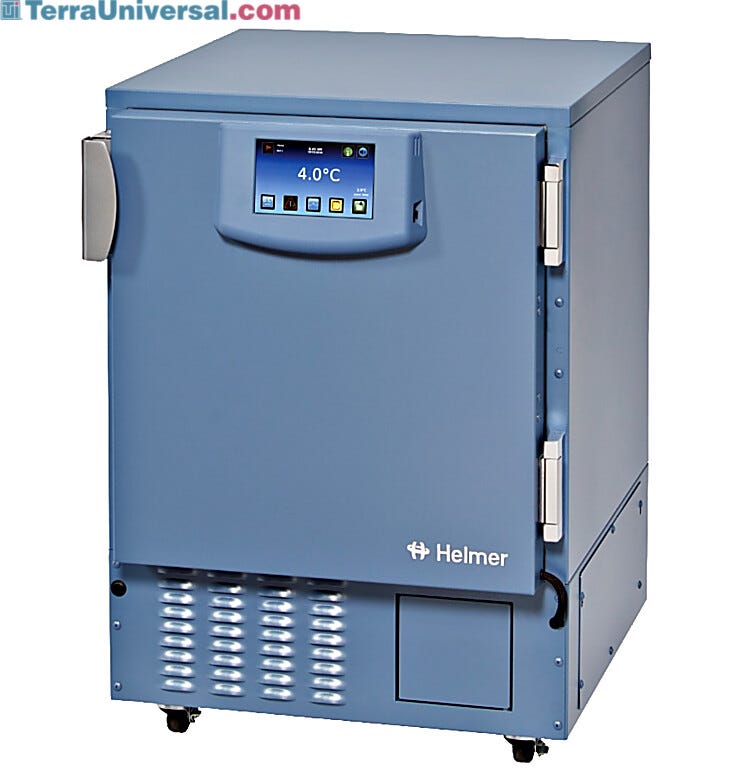

iLR105-GX i.Series Medical Grade ADA Undercounter Lab Refrigerator by Helmer Scientific, 5.3 cu. ft., 4°C Setpoint, Solid Door, 115 V, 5112105-1
Product Details
  • ADA Compliant iLR105-GX  i.Series Medical-Grade Undercounter Lab Refrigerator with an advanced i.C3 microprocessor and a 7” display
  • ENERGYSTAR certified 5.3 cu. ft. (150L) model with OptiCool system and a 4°C setpoint for laboratory applications
  • •  ADA Compliant Features: fits under standard 34” high ADA compliant countertop and ADA compliant full-length handle
  • Options: electromagnetic-lock with PIN entry, access control, certificate of calibration
  • •  Includes: two ventilated shelves (Optional: casters and leveling feet)
  • i.C3 User Interface Features:
  • Provides constant temperature monitoring and features multiple information logs
  • Door-mounted 7” color touchscreen display
  • System Status Console at home screen for status monitoring
  • Information and Event Center for recording performance history (event acknowledgement, status, min/max temperature and 7 and 1-day interactive graph views)
  • Data Transfer Center exports temperature, event, and access data via USB
  • Medical-grade fridge features: temperature management protects patient samples and ensures efficacy of medication, low noise level and energy-efficiency helps reduce cost and sustains energy initiatives
  • High-Performance GX i.Series Undercounter Features: ºC or ºF temperature display, monitor/logging, compliance data management (PDF and CSV files via USB port), password protection, key lock, interactive temperature graphing, alarm probes, alarms (standard, condenser temperature, probe failure, low battery), display/reset of min/max temperature, rechargeable battery backup (20 hrs.), connectivity (Ethernet/API, two USB ports)
  • Refrigeration:
  • VCC compressor-based, forced-air hydrocarbon
  • Compressor: Hermetic, variable speed (VCC). Rated speed range: 2000-3500 rpm
  • Condenser Type: Air-cooled fin and tube, sealed
  • Cap tube expansion device
  • Evaporator Type: Direct expansion forced-air fin and tube
  • Supports sustainability with U.S. EPA, SNAP, and EU F-Gas compliant natural refrigerants and foaming agents
  • Automatic defrost method
  • Refrigerant: R600a, Isobutane, EPA SNAP compliant
  • Additional Features:
  • 50% to  energy-efficient
  • Optimized temperature control
  • No defrost cycle required to maintain constant temperature
  • Forced air circulation maintains chamber temperature uniformity and quick recovery after door openings
  • Material: bacteria-resistant powder coated interior and exterior, RTD stainless steel control sensor
  • Easy-to-clean recessed floors contains spills and helps maintain product integrity
  • Power-plug: NEMA 5-15 hospital-grade | 115 V 50/60 Hz, 8 to 10 ft. (2.4-3.0m)
  • Rear Access Port- for external monitoring probe(s) (0.75 in | 19 mm diameter)
  • Specifications:
  • Interior dimensions: 19.5" W x 19.9" D x 22.8" H
  • Door: right hinged solid (optional: glass and left-hinged configuration)
  • Temperature Range: 2° to 10°C
  • Setpoint: 4°C
  • Uniformity: +/-1.0
  • Recovery to 8°C after 3 min door opening | min: 9
  • Stability °C: 0.82
  • Energy Consumption | kWh/day: 1.37
  • Noise Level: 42 dB
  • Heat rejection/emission | BTU/hr.: 460
  • Pull-down time to 4®C | min: 36
  • Certification/Agency Listing:
  • QPS (Certified to UL and CSA Standards)
  • IEC/UL61010-2-01: 2016 | IEC 61010-1:2010, AMD1:2016
  • Option: ETL certified to NSF/ANSI 456 Vaccine Storage Standard* (must be configured with NSF/ANSI 456 Vaccine Storage
  • Certification option
  • Ambient Operating Temperature:+15°C to +32°C |+59°F to +90°F
  • Options:
  • Stacking kit, Integrated access control, Stainless steel exterior/interior, Chart recorder, Chart paper,
  • Swivel/Locking casters, Solid ballast, Remote alarms, Remote lock adapter kit, Floor and
  • Wall bracket kit, Pedestal, Storage trays, LED light, Locking drawer, Left-hinge door,
  • Glass door, NSF/ANSI 456 Vaccine Storage Certification (includes Certificate of calibration),
  • Temperature validation, Validation guide (IQ/OQ), Certificate of calibration, Extended warranty

Manufacturer SKU: 5112105-1

Capacity: 5.3 cu. ft.

Configuration: Undercounter

Brand: i.Series-GX

Plug Type: US Plug

Specialty: Laboratory

Type: Refrigerator

Internal Dimensions: 19.5" W x 19.9" D x 22.8" H

Door Style: Single Solid

Refrigerator Temperature Range: 2° to 10°C

Set Point Temperature: 4°C

Unit of Measure: EA

Marks & Listings: CSA, ADA

Electrical Specifications: 115 V, 50/60 Hz

Weight, Product: 174 lb

Dimensions, Product: 24.3" W x 31.9" D x 28.1" H

Weight, Shipping: 235 lb

Dimensions, Shipping: 30" W x 38" D x 34" H
