Select Product

Chamber Material

Window Material

Chamber Height

Light Fixture

Voltage

Terra Part #PriceShips in
PolypropylenePolycarbonate46"22"38.5"Fluorescent Illuminator240 V2 2900-58B-220 $8,92130-38 Days
PolypropylenePolycarbonate46"22"38.5"Fluorescent Illuminator120 V2 2900-58B $9,4191-3 Days
Chamber Material
Window Material
Chamber Width
Chamber Depth
Chamber Height
Light Fixture
Voltage
Number of Glove Ports
Item ordered before. Click on bagde to see the order.
Demo Available
Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Select product to see details

Product Details

• HEPA filtration maintains ISO Class 5 conditions in work area

• Optional air lock reduces contaminant inflow during sample transfer

• Meets USP 797 regulations for sterile pharmacy compounding

• Polypropylene construction offers excellent chemical-resistance and durability

• HEPA-filtered antechamber isolates the main chamber from the outside environment and features a sliding glass door

• Hypalon sleeves and 3-groove glove connectors (sold separately) allow operators to easily replace the sterile gloves without opening the isolator and risking contamination

Low Particle Isolators

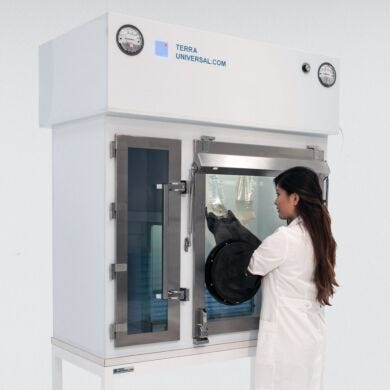

  • USP 797 Polypropylene Compounding Aseptic Isolator in Use BioSafe® USP 797 Compounding Aseptic Isolator, Polypropylene
  • USP 797 Polypropylene Compounding Aseptic Isolator (CAI) Polypropylene USP 797 Compounding Aseptic Isolator (CAI)

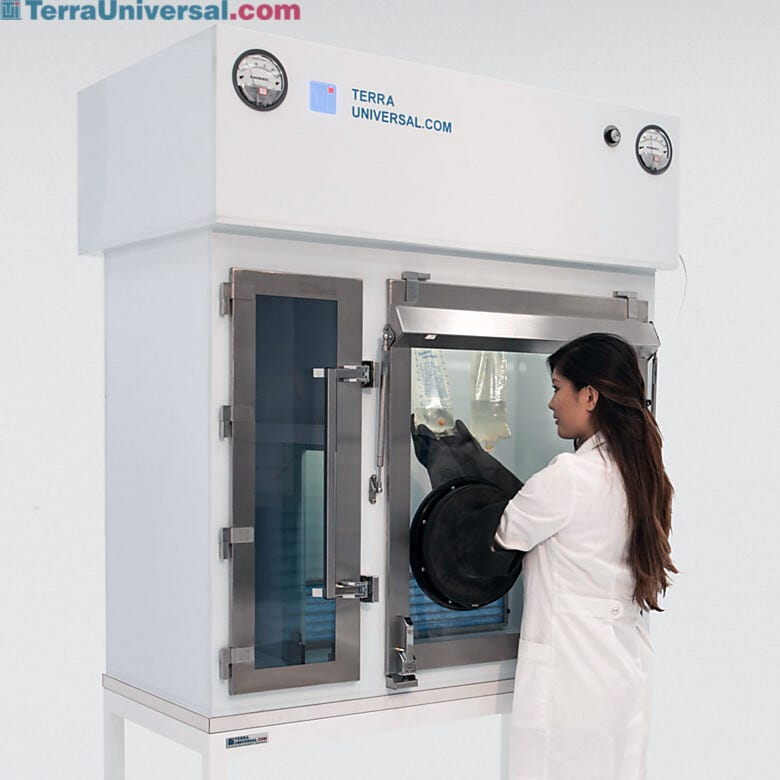

USP 797 Polypropylene Compounding Aseptic Isolator in Use

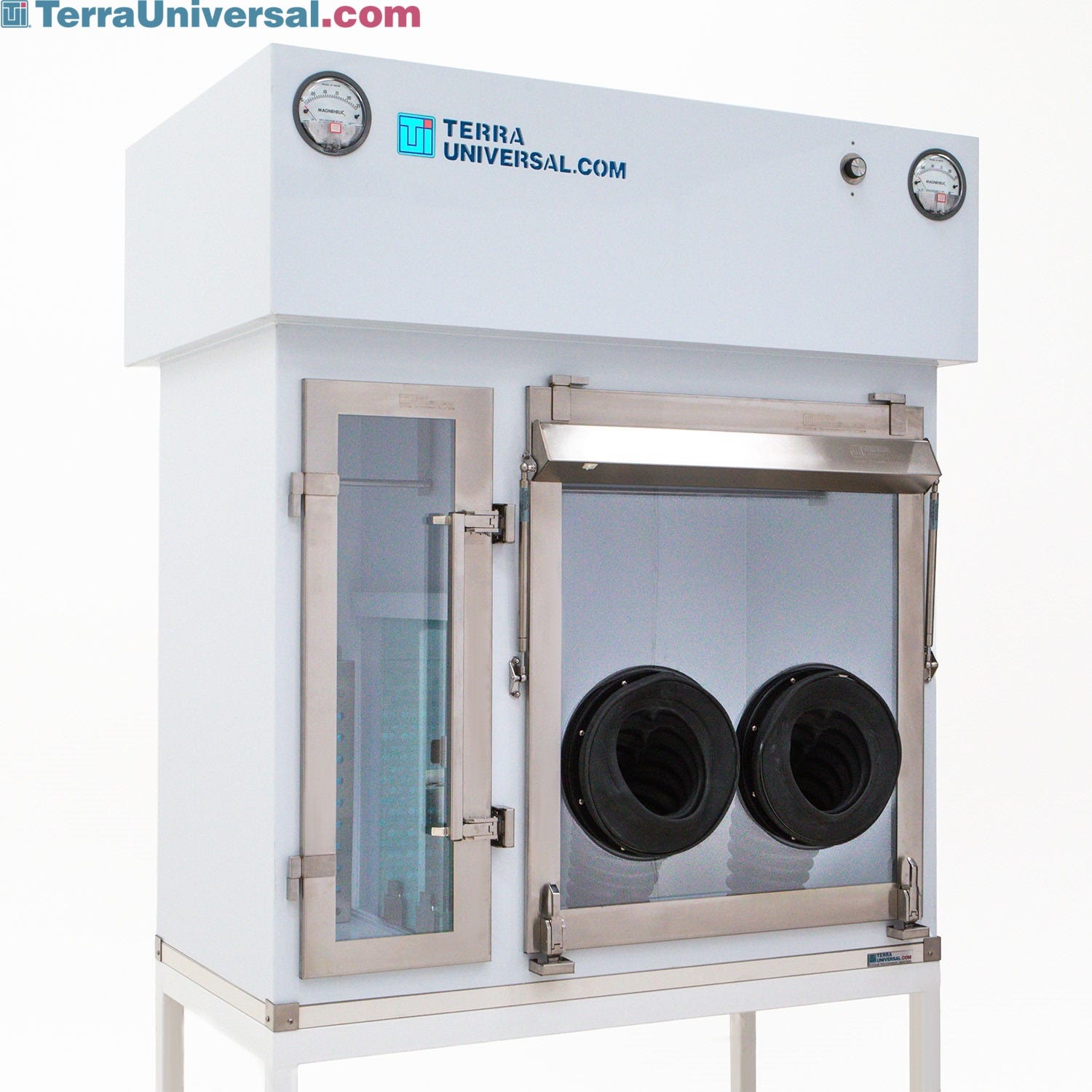

USP 797 Polypropylene Compounding Aseptic Isolator (CAI)

Features & Benefits

Features and Benefits

Compounding Aseptic Isolator Specifications

More Information

Glovebox Specifications
  • Overall dimensions: 48.25"W x 28.54"D x 53.72"H (1226 x 725 x 1364 mm), nominal, including fan/filter unit; 46.25"W x 22.25"D x 38.74"H (1175 x 565 x 984 mm), chamber exterior, excluding FFU
  • Antechamber: 12.5"W (318 mm)
  • Processing Chamber: 32.5"W x 22.25"D x 38.74"H (826 mm x 565 x 984 mm), with pneumatic tilt-up door, 27.13"W x 31.43"H (689 mm x 798 mm) opening
  • Housing: 304 or 316L stainless steel, or polypropylene
  • Viewing Windows: Polycarbonate, 0.25" (6 mm) thick, with swing access door
  • Glove Ports: 10" (254 mm) diameter (order desired gloves separately)
  • IV Rod: 0.25" (6 mm) stainless steel rod mounted 9" (228 mm), from the filter face Pressure Gauge: 0 - 0.25" Magnehelic® gauges monitor internal positive pressure
  • Lighting: External-mount fluorescent fixture Filter/Fan Unit Specifications
  • Filter/Fan Unit: 24" x 48" (610 mm x 1219 mm), low-vibration impeller blower module with direct-drive, continuous-duty three-speed fan and 99.99% efficient HEPA filter (rated @ 0.3 µm particle size); operates at less than 50dBA
  • Full-load Amps: 4.3 (for 120V, 60Hz)
  • Average CFM: 644 (1094.2 m³/hr)
  • Air Speed: 100 (low speed); 120 (medium speed); 140 (high speed)
  • Watts: 160 @ 90FPM (0.04 m/s)
  • Prefilter/Exit filter: Fiberglass/Polyester

Tilt-Up Access Door

Ergonomic LiftLatches and gas struts simply daily cleaning of the main compounding chamber and transfer of bulky equipment. A one-piece, thermoplastic gasket seals when the panel is closed and latched.

HEPA-Filtered Antechamber

The antechamber provides an intermediary HEPA-filtered space that prevents cross-contamination of the compounding chamber. A sliding glass door provides separation and maintains a pressure gradient.

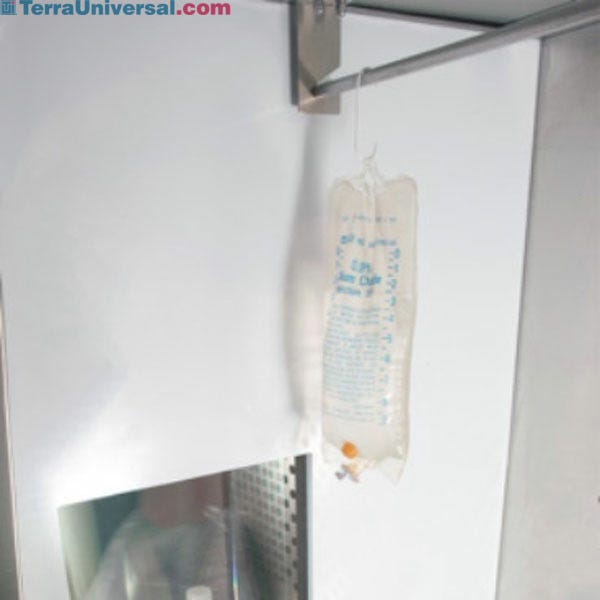

IV Bag Rod

The main compounding chamber includes a stainless steel IV rod for suspending IV bags at a convenient height during compounding (hooks not included).

Sliding Transfer Door

A 0.5”-thick tempered glass door glides in a polypropylene track between the antechamber and main chamber, maintaining separation and the USP-prescribed pressure gradient when closed.

Heavy-Duty Quick-Release Door Hinges

The tilt-up front panel pivots on stainless steel hinges that allow the entire panel to be easily detached for maintenance or cleaning; simply disconnect the lift-assist gas struts and slide the door off.

Certification Test Ports

Two ports (normally plugged) allow independent verification of the chamber pressures monitored by the Magnehelic gauges, simplifying certification (the “Ambient” reference port always remains open).

Flush-Mount Dual Pane Windows

Flush mount dual-pane window design simplifies cleaning.

Stainless Steel Cleanroom Door

Stainless steel doors provides resistances to chemicals and minimizes surface particle shedding. Choose 316L stainless steel as an optional substitute material.

BioSafe®: Terra's Ultimate Cleanliness Rating

Terra's BioSafe products meet design and material standards that go far beyond conventional cleanroom requirements. Developed specifically for aseptic requirements in bio-pharmaceutical cleanrooms, these items incorporate a range of features that minimize particle generation and accumulation and inhibit microbial growth.

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Glove Box Cord Feed-Through
    A self-sealing port can be mounted in the lower-rear corner of the glove box chamber for passing cables or tubing into the isolator. Feed-throughs are also available for gas, vacuum and other electrical connectors.
  • Sleeve and Glove Assemblies
    Sleeve/glove combinations, available in many materials, allow fast, inexpensive glove replacement without removing sleeves from the glove box port (shown: Hypalon with glove/sleeve connectors).
  • "Sharps" Waste Port
    The side or floor mounted waste port offers easy disposal of sharps or other waste. The 6"-diameter port is flush with the interior of the main chamber and has a 3” flange below the surface for connecting waste containers (includes cover).
  • Powder-Coated Steel Stands
    Stands are all-welded 2"-square steel tubing with white powder-coated finish and chemical-resistant nylon leveling feet. Raise chamber 30" above floor level. Select optional casters for easy positioning.
