Compounding Aseptic Containment Isolators by Germfree
Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
Germfree LFGI provides both operator and product protection when compounding
Validated to CETA CAG-002-2006 and maintains ISO 5 particle counts inside the work chamber under dynamic operating conditions
Both supply and exhaust air passes through HEPA filters to capture contaminants for full containment (99.99% efficient at 0.3 microns)
Exhaust port can be connected to external exhaust system for ducting to the outside (requires exhaust transition) Sealed, HEPA-purged airlock features a timed cycle and slide-out tray to put transferred materials within easy reach of the glove port
4 waste removal tube and 2.5 sharps disposal tube with stoppers for sealing off the chamber
Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
Germfree LFGI provides both operator and product protection when compounding
Validated to CETA CAG-002-2006 and maintains ISO 5 particle counts inside the work chamber under dynamic operating conditions
Both supply and exhaust air passes through HEPA filters to capture contaminants for full containment (99.99% efficient at 0.3 microns)
Exhaust port can be connected to external exhaust system for ducting to the outside (requires exhaust transition) • Sealed, HEPA-purged airlock features a timed cycle and slide-out tray to put transferred materials within easy reach of the glove port
4 waste removal tube and 2.5 sharps disposal tube with stoppers for sealing off the chamber
Waste removal tubes and antechamber can be installed on either side of unit
Hydraulic height-adjustment allows operators to sit or stand at a comfortable height when working within the glovebox for extended periods
Digital pressure gauge with low-pressure alarm to alert operators to unsafe conditions
Large, oval glove ports with two-piece sleeve/glove systems that allows operators to change gloves without breaching containment
Angled acrylic window minimizes glare; entire front panel lifts open for thorough cleaning and decontamination (requires key to unlock handles)
Sealed electrical outlet in main work chamber, externally mounted fluorescent light and 10 main power cord
Locking casters included for mobility (sized to fit through most standard doorways)
Options include sealed hazardous waste containers, additional airlocks, Grx Rapid Exchange Glove System, electronic data ports (sealed) and cleaning tools
Product categorized by the Export Administration Regulations (EAR) under Export Control Classification Number (ECCN) 2B352: Biological Processing Equipment. Export of this product outside of the United States may require a license to be obtained by the exporter, unless the client holds an active license exemption. Any fees associated with obtaining an export license will be borne by the customer.
Germfree Laminar Flow Glovebox Isolator Training Video
LFGI Principles of Operation by Germfree
How to Install the Germfree LFGI Unit

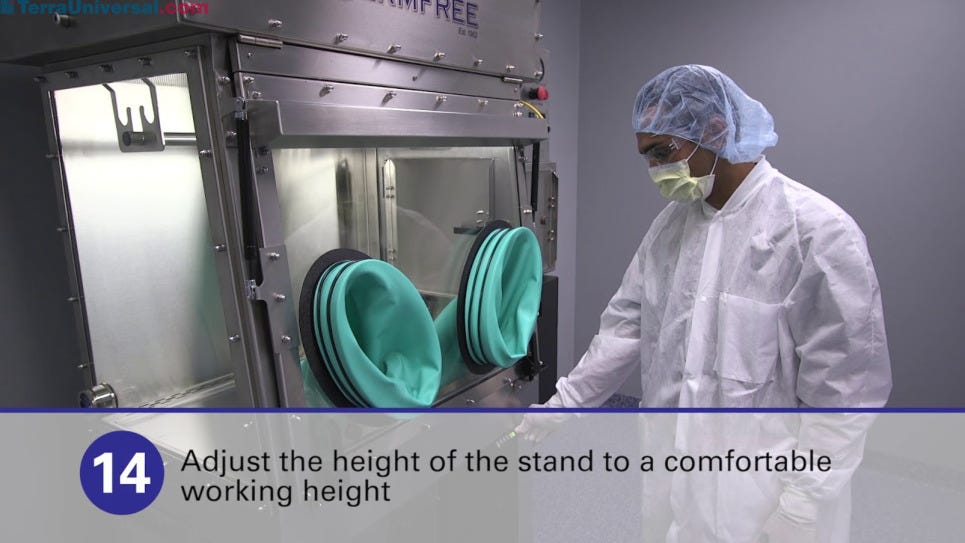

Operating the Germfree LFGI
Cleaning the LFGI Positive Pressue Unit
Cleaning the LFGI Negative Pressue Unit by Germfree
GermFree Laminar Flow Glovebox Isolator
Training video on LFGI design and operation | 5607-15 displayedGermfree Laminar Flow Glovebox Isolator Training VideoA training video on GermFree’s LFGI Glove Box design and operation
A guide on the principles of your Germfree LFGILFGI Principles of Operation by GermfreeA guide on how to operate your LFGI unit with a step by step processes
A guide on how to install your Germfree LFGIHow to Install the Germfree LFGI UnitA guide on how to install your LFGI unit along with certification guides
Step by step process on how to properly clean a Germfree Positive Pressure Germfree LFGI unitCleaning the LFGI Positive Pressue UnitStep by step process on how to properly clean a Germfree Positive Pressure Germfree LFGI unit with various cleaning methods and materials
Step by step process on how to properly clean a Germfree Negative Pressure LFGI unitCleaning the LFGI Negative Pressue Unit by GermfreeStep by step process on how to properly clean a Germfree Negative Pressure LFGI unit with various cleaning methods and materials

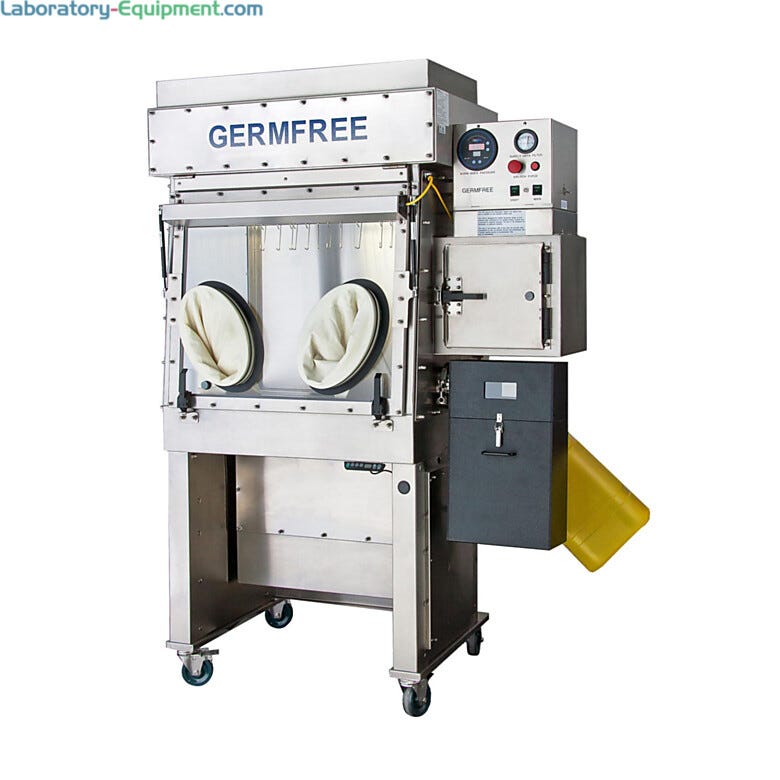

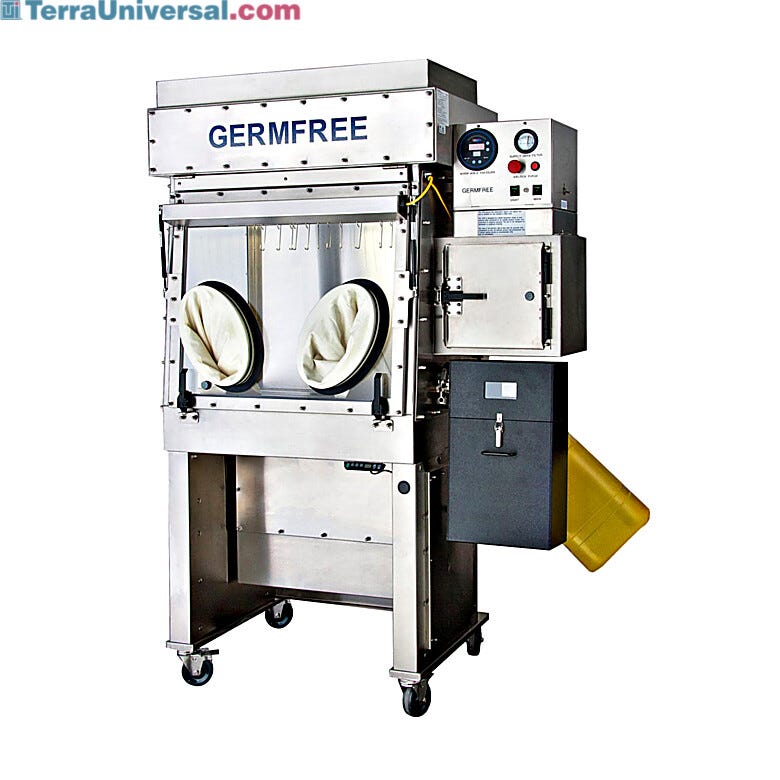

Germfree Glovebox Isolators meets USP 797 and USP 800 requirements; shown with optional sharps container | 5607-15 displayedGermFree Laminar Flow Glovebox IsolatorThis dual CACI and CAI unit operates under strong negative and positive pressure, providing the highest level of protection from microbiological particulates, dust, powders & aerosols to meet USP 797 and 800. Three available exhaust options are factory-set or modified by a certifier.
Features & Benefits
Features and Benefits
Products Tailored to Your Cleanroom Environment
Provide Terra with your desired ISO Grade™ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.

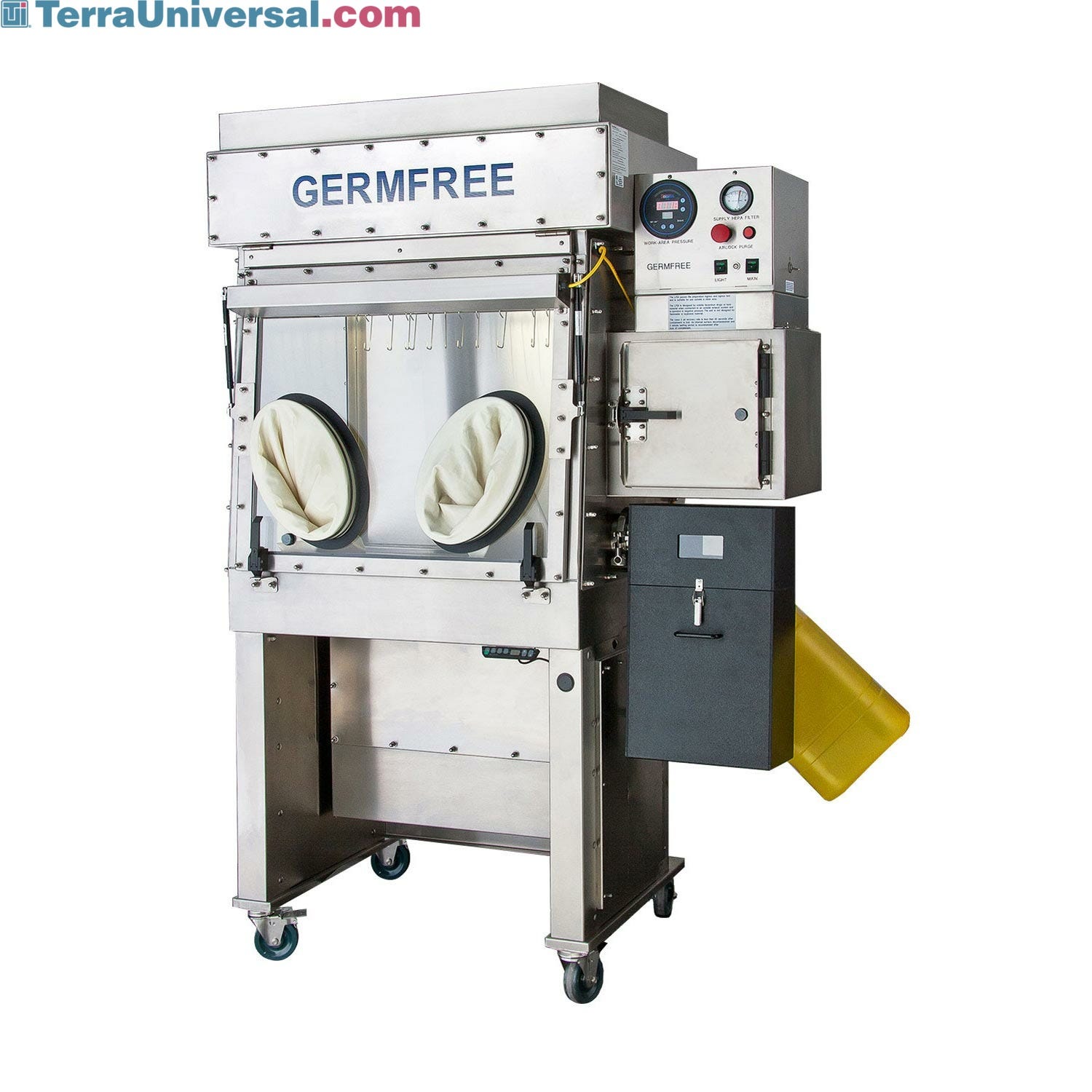

Germfree LFGI Compounding Aseptic Containment Isolator (CAI and CACI)
Germfree’s Compounding Aseptic Containment Isolator is configurable for positive or negative pressure to meet either USP 797 sterile or USP 800 hazardous material compounding requirements (shown with optional hazardous sharps and waste containers).
